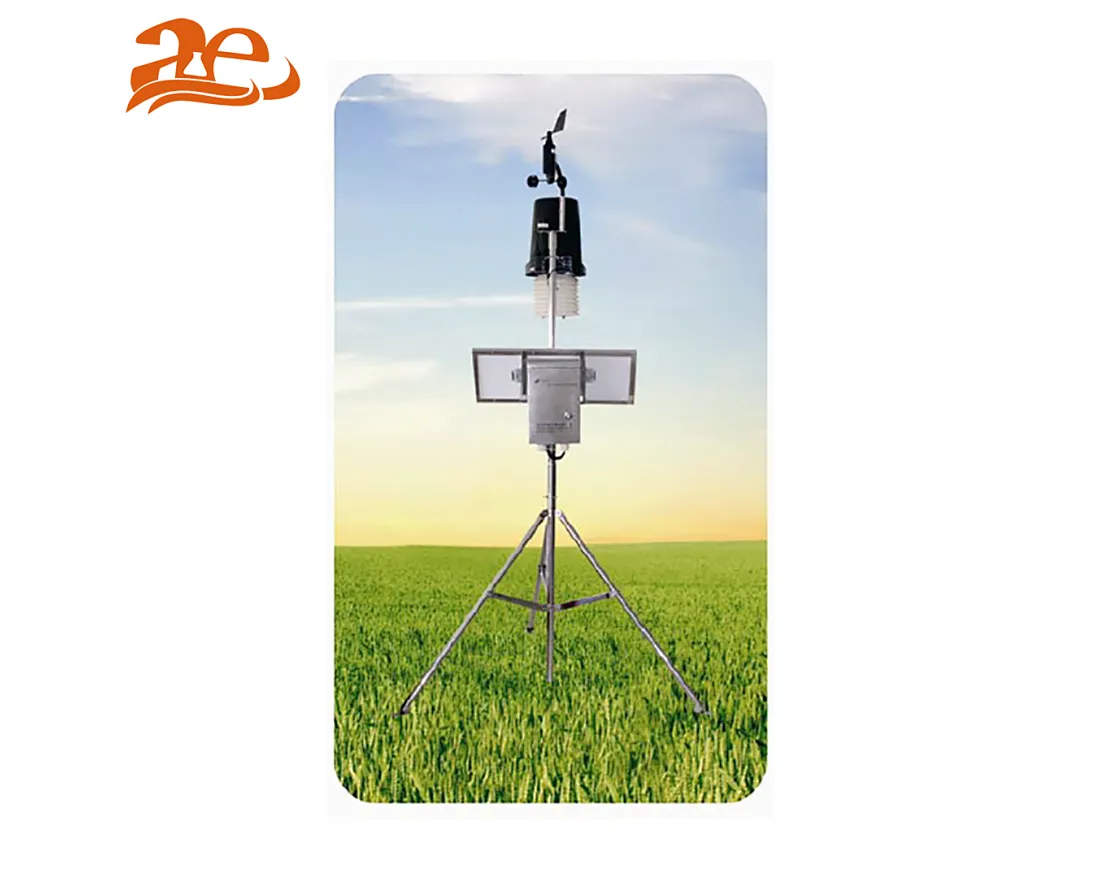

AELAB Microclimate information collector system /Weather Station NL‐5
Microclimate information collector (system) can acquire air temperature, humidity, illumination, Wind direction and speed, rainfall, etc. Widely used in facilities agriculture, forestry, horticulture, animal husbandry, and other fields, and fulfill to carry out conduct of automatically monitor, automatic control and intelligent management to the facilities for comprehensive agricultural ecological information.
NL‐5
1
Quantity:
Microclimate information collector system /Weather Station NL‐5
Microclimate information collector (system) can acquire air temperature, humidity, illumination, Wind direction and speed, rainfall, etc. Widely used in facilities agriculture, forestry, horticulture, animal husbandry, and other fields, and fulfill to carry out conduct of automatically monitor, automatic control and intelligent management to the facilities for comprehensive agricultural ecological information.
Characteristics:
+Big LCD screen, film‐style keypad, can display real‐time sampling date and time (year, month, date, minute and second), groups, temperature, humidity, illumination, Wind direction and speed, rainfall and other parameters, Apparatus compact beautiful and very convenient . ( accord to the users requirements to increase and change measuring parameters, such as: PAR radiation, wind direction and speed, rainfall, soil water potential, soil PH, EC soil conductivity, etc.).
+User settings himself, can be demanded the closure of the parameters do not need access.
+Automatically collect various kinds of parameters datum, datum can be passed through the interface software (for free) to download to your computer.
+Be able to shown the all the parameters of the visual data measured in the form of chart and curve to the user.
+Strongly expanded: procedures modular system structure and function to facilitate expansion or shielding.
Standard Sensors equipped are:
+Temperature and Humidity;
+Illuminaiton;
+Rainfall;
+Wind speed and Direction;Other sensors as below sheet needed can be customized.

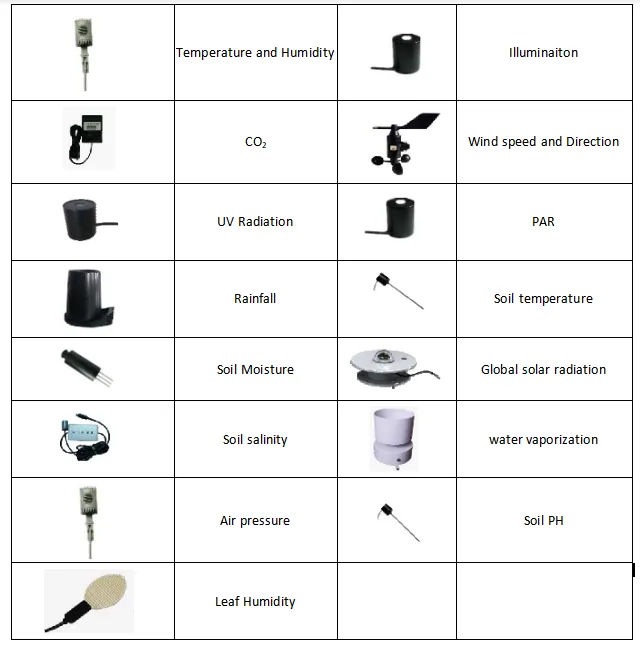

Sensor list for selection:
Technical Parameters of the controller:
Solar power supply: 10WP
Standby power: DC‐9V/ 1A
Watt: ≤ 1.5W
Capacity: 1M (local storage) + 4G (SD CARD)
Waterproof rate: IP54
Technical parameters of sensors (OPTIONAL):
| Testing index | Parameter | Testing index | Parameter |
| Temperature | range:‐40°C‐80°C accuracy:±0.4°C resolution:0.1°C | Rainfall | range:0‐4mm/min accuracy:±0.1mm resolution:0.1mm |
| Humidity | range:0‐100%RH accuracy:±3%RH resolution: 0.1%RH | CO2 | range:0‐2000PPM Volatility:±(50PPM+ Measurements×3%) resolution:1PPM |
| Dew Point | range:‐40°C‐120°C accuracy:±0.4°C resolution:0.1°C | Illuminance | range: 0‐200000LUX accuracy:±2% (0‐20000lux) resolution: 1LUX |
| Soil salinity | range: 0‐19.99ms/cm accuracy: ±2% | Soil Temperature | range:‐40°C‐100°C accuracy:±0.3°C resolution:0.1°C |
| Soil compaction | range:0‐100kg accuracy:±0.5‰ F.S | Soil Moisture | range:0‐100% accuracy: ±3% resolution:0.1% |
| PAR radiation | range:1‐2,700µmolm‐2s‐1 accuracy:±1µmolm‐2s‐1 resolution:1µmolm‐2s‐1 | Soil pH | pH range: 1‐8pH pH accuracy: ±0.5 |
| Wind Direction | range:0‐359° accuracy:±3° | Wind Speed | range:0‐45m/s accuracy:±(0.3+0.03v)m/s |
| Air pressure | range: 300.0hPa~1100.0hPa Accuracy: ±1hPa | Global solar radiation | range: 0‐2000W/m2 Accuracy: ±5% |
| Water vaporization | range: 0~100mm Accuracy: 0.1mm | UV radiation | range: 0~6mW/cm2 Accuracy: ±5% (0~3mW/cm2) |
