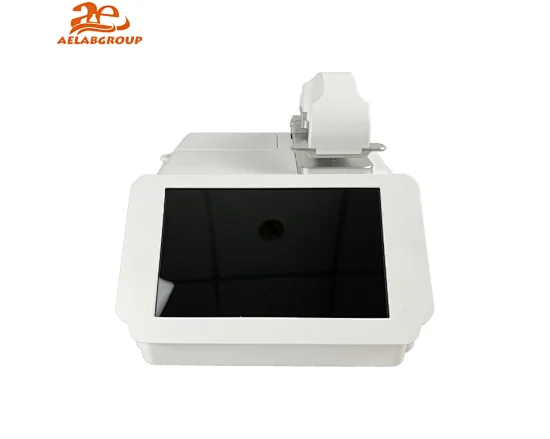

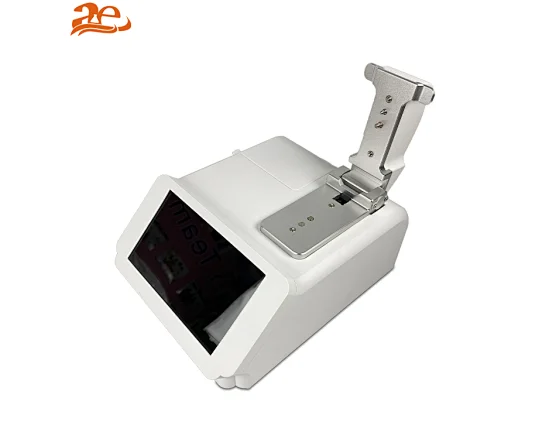

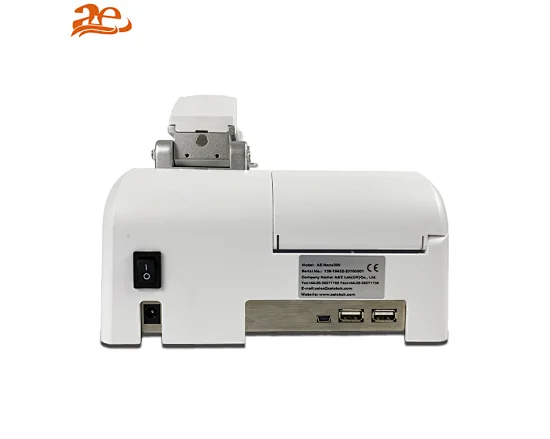

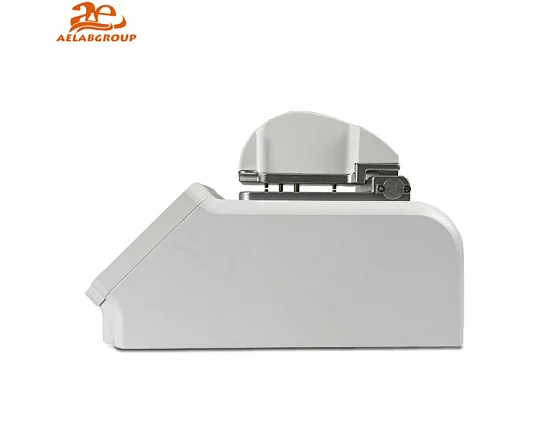

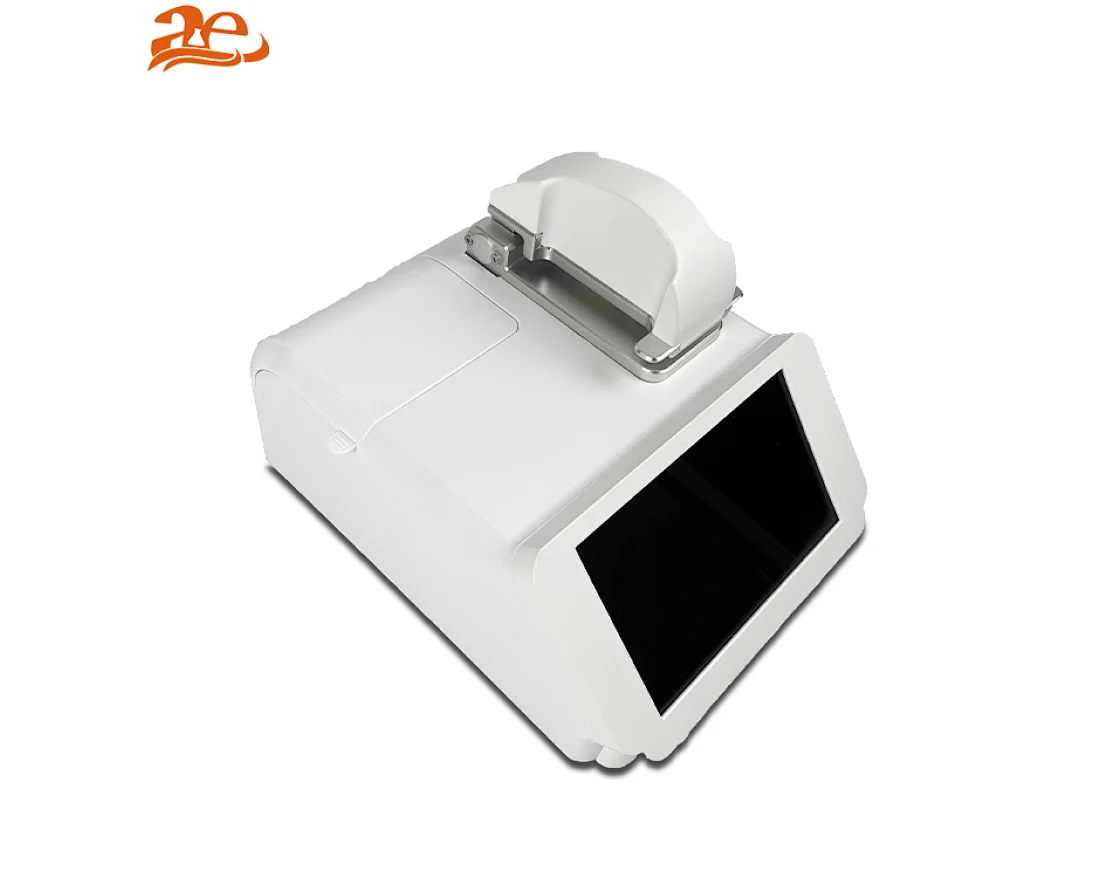

AELAB Micro Volume Spectrophotometer AE-NANO400A
+ User-friendly software, easy to use: It is easy to use, free software updates are available.
+ Micro-volumes measuring : Only require 0.5~2μl sample to accurate determinate of nucleic acids, proteins.
+ Fast and easy measurements :Turn on and instantly measure without lamp warm up time; Easy measurement within 8 sec.
+ Long life’s Xenon flash lamp :Xenon flash lamp, 10 flashes, up to 10 years, no cells or cuvettes, no dilutions and expensive consumables.
+ No consumables required:Direct microvolume measurements from 1–2μL of sample. Eliminates the need for expensive accessories.
+ No computer required and with touch screen (only AE-NANO300) :AE-NANO300 is equipped with Android system operation.
+ The Nano-100 / AE-NANO300 are full range of wavelength (200-800nm) detection ability.
+ Micro-volumes measuring : Only require 0.5~2μl sample to accurate determinate of nucleic acids, proteins.
+ Fast and easy measurements :Turn on and instantly measure without lamp warm up time; Easy measurement within 8 sec.
+ Long life’s Xenon flash lamp :Xenon flash lamp, 10 flashes, up to 10 years, no cells or cuvettes, no dilutions and expensive consumables.
+ No consumables required:Direct microvolume measurements from 1–2μL of sample. Eliminates the need for expensive accessories.
+ No computer required and with touch screen (only AE-NANO300) :AE-NANO300 is equipped with Android system operation.
+ The Nano-100 / AE-NANO300 are full range of wavelength (200-800nm) detection ability.
AE-NANO400A
1
Quantity:
AELAB Micro Volume Spectrophotometer AE-NANO400A
+ User-friendly software, easy to use: It is easy to use, free software updates are available.
+ Micro-volumes measuring : Only require 0.5~2μl sample to accurate determinate of nucleic acids, proteins.
+ Fast and easy measurements :Turn on and instantly measure without lamp warm up time; Easy measurement within 8 sec.
+ Long life’s Xenon flash lamp :Xenon flash lamp, 10 flashes, up to 10 years, no cells or cuvettes, no dilutions and expensive consumables.
+ No consumables required:Direct microvolume measurements from 1–2μL of sample. Eliminates the need for expensive accessories.
+ No computer required and with touch screen (only AE-NANO300) :AE-NANO300 is equipped with Android system operation.
+ The Nano-100 / AE-NANO300 are full range of wavelength (200-800nm) detection ability.
Features :
TechnicalSpecification :
+ User-friendly software, easy to use: It is easy to use, free software updates are available.
+ Micro-volumes measuring : Only require 0.5~2μl sample to accurate determinate of nucleic acids, proteins.
+ Fast and easy measurements :Turn on and instantly measure without lamp warm up time; Easy measurement within 8 sec.
+ Long life’s Xenon flash lamp :Xenon flash lamp, 10 flashes, up to 10 years, no cells or cuvettes, no dilutions and expensive consumables.
+ No consumables required:Direct microvolume measurements from 1–2μL of sample. Eliminates the need for expensive accessories.
+ No computer required and with touch screen (only AE-NANO300) :AE-NANO300 is equipped with Android system operation.
+ The Nano-100 / AE-NANO300 are full range of wavelength (200-800nm) detection ability.
Features :
1. This is a basic micro-volume UV spectrophotometer designed (only 3 types of wavelength: 260nm, 280nm and 365nm) for the measurement of nucleic acids and proteins.
2. Android system operation, 7 inch touch screen no computer, APP software, simple interface, easy to use.
3. To detect the concentration of bacteria and microorganism are more convenient with the OD600 function.
4. Measure nucleic acid concentration at 260nm and purity using the ratio 260/280.
5. Measure purified protein concentration at 280nm.
6. The data can be printed with built-in printer, the data can output via SD-RAM and USB memory.
TechnicalSpecification :
| Model | AE-NANO100 | AE-NANO300 | AE-NANO400A | AE-NANO500 |
| Wavelength Range | 200-800nm | 200-800nm | 260nm, 280nm | 200-800nm |
| Minimum Sample Size | 0.5-2.0uL | 0.5-2.0uL | 1-2.0uL | 0.5-2.0uL |
| Path Length | 0.2mm | 0.2mm | 0.5mm | 0.05mm |
| 1.0mm | 1.0mm | 0.3mm | ||
| 1.0mm | ||||
| Light Source | Xenon flash lamp | Xenon flash lamp | UVLED | Xenon flash lamp |
| Detector Type | 3864-Linear CCD array | 2048-Linear CCD array | UV-sillion photocell | 2048-Linear CCD array |
| Wavelength Accuracy | 1nm | 1nm | — | 1nm |
| Spectral Resolution | ≦3nm (FWHM at Hg546 nm) | — | ≦3nm(FWHM at Hg546nm) | |
| 546nm Hg546 HGHGHHHhGhghhgHg546 Hg546nm) | Hg546om] | |||
| ≧3nm (FWHM at Hg546nm | ||||
| Absorbance Precision | 0.003Abs | 0.003Abs | 0.005Abs | 0.003Abs |
| Absorbance Accuracy | 1%(7.332Abs at 260nm) ， 1% (7.332Abs at 260nm) ， 1% (7.332Abs at 260nm) ， 1%(7.332Abs at 260nm) | |||
| Absorbance Range | 0.02 - 90A | 0.02 - 100A | 0.02 - 80A | 0.02 - 100A |
| Detects Nucleic Acid up to | 2-4500ng/ul (dsDNA) | 2-5000ng/ul (dsDNA) | 10-4000ng/ul (dsDNA) | 2-15000ng/ul (dsDNA) |
| Measurement Time | <8S | <5S | <8S | <6S |
| Data Output | Connect PC | USB | USB | USB |
| Operating Voltage | 24V DC | 24V DC | 24V DC | 24V DC |
| Operating Power | 20W | 25W | 25W | 25W |
| Standby Power | 5W | 5W | 5W | 5W |
| Packing Size (W x D x H) | 500 x 495 x 310mm | 500 x 495 x 310mm | 500 x 495 x 310mm | 500 x 495 x 310mm |
| Gross Weight | 9.2kg | 9.2kg | 9.2kg | 9.2kg |
| Software Compatibility | WinXP, Win7. Win8 | Android System | Android System | Android System |
| Fluorescent detection | ||||
| Sensitivity | — | — | dsDNA: 0.5pg/ul | — |
| Linear Dynamic Range | — | — | R2>0.995 | — |
| Repeatability | — | — | <1.5% | — |
| OD600nm Measurement | ||||
| Light Source | — | LED | LED | LED |
| Wavelength Range | — | 600±8nm | 600±8nm | 600±8nm |
| Absorbance Range | — | 0-4A | 0-4A | CMA |
