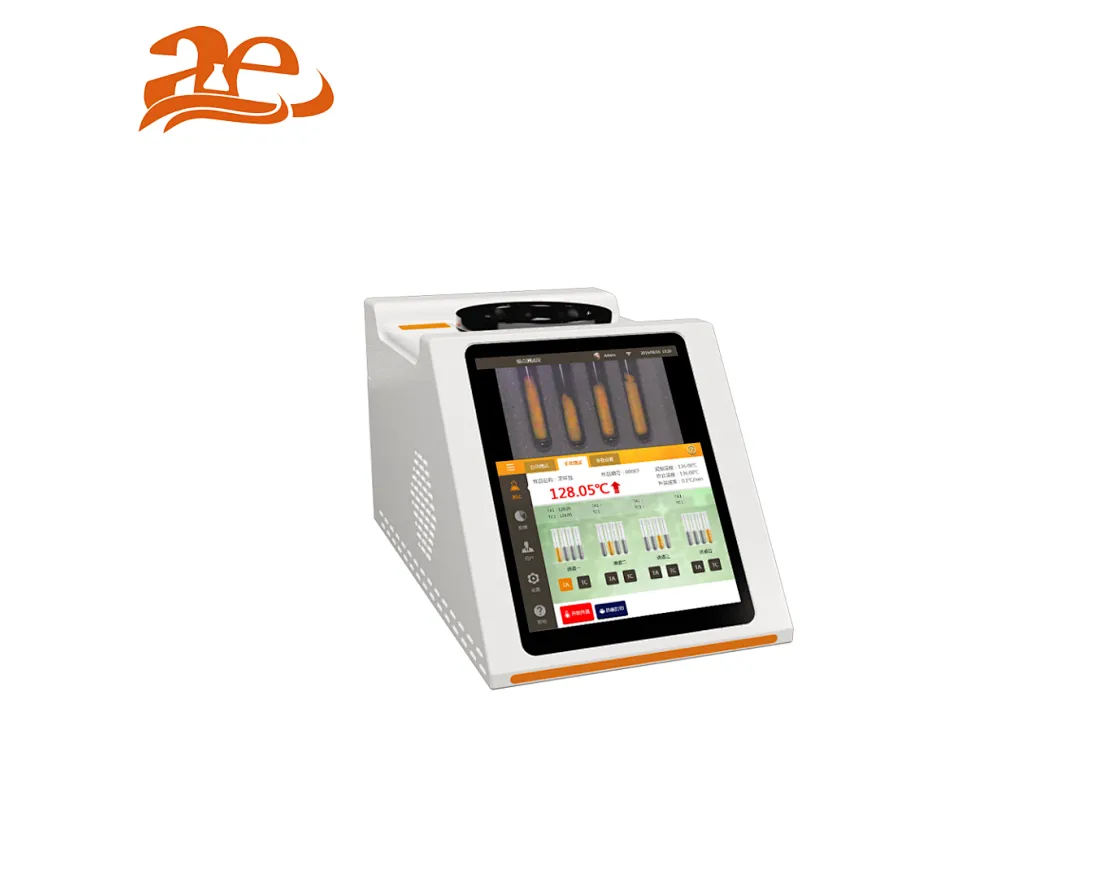

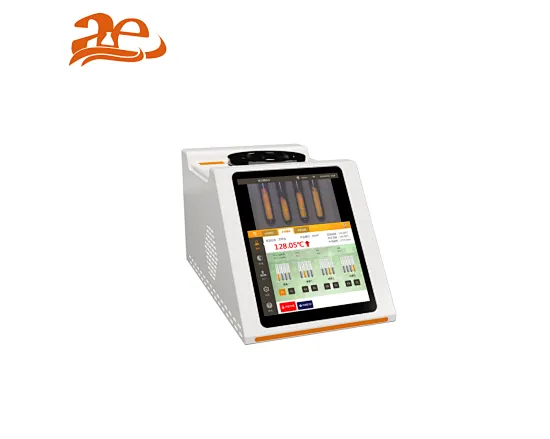

AELAB Melting Point Apparatus
AE-MP series Video Melting Point Apparatus perfectly integrate video technology into melting point measuring.It not only provides users with reliable melting point test result, but also intuitively displays temperature curve and real-time video image, and achieves the function of save, replay the video etc. It provides better help for users to observe melting process of sample.
AE-MP420 AE-MP430 AE-MP450 AE-MP470 AE-MP490
Quantity:
AELABMelting Point Apparatus
AE-MP series Video Melting Point Apparatus perfectly integrate video technology into melting point measuring.It not only provides users with reliable melting point test result, but also intuitively displays temperature curve and real-time video image, and achieves the function of save, replay the video etc. It provides better help for users to observe melting process of sample. The instrument can be widely used in the chemical industry and pharmaceutical research. It is the essential equipment for production of drugs, spices, dyes, and measurement of other organic crystal substances.
Feature:
Characteristics:
Specification:
#digital melting point apparatus
#melting point freezing point
AE-MP series Video Melting Point Apparatus perfectly integrate video technology into melting point measuring.It not only provides users with reliable melting point test result, but also intuitively displays temperature curve and real-time video image, and achieves the function of save, replay the video etc. It provides better help for users to observe melting process of sample. The instrument can be widely used in the chemical industry and pharmaceutical research. It is the essential equipment for production of drugs, spices, dyes, and measurement of other organic crystal substances.
Feature:
+ Automatic Video Melting Point Appratus introduce perfectly integrate video technology into melting point measuring.
+ Test the sample with dark color.
+ Full compliance with FDA 21CFR Part.11.
Characteristics:
+ First-created Automatic Video Melting Point Apparatus perfectly integrated video technology into melting point measuring.
+ System base on Android system.
+ Vast amounts of storage space, up to 128G capacity.
+ 0.1--20.0℃ linear temperature rise design is satisfactory for varied temperature rise options.
+ Data can be output by U disk and network. With USB, Network and RS232 interface.
+ Data can be printed. Its completely in line with pharmacopoeia and GLP requirements.
+ High resolution camera with 720P, and 8 times amplification.
Specification:
| Model | AE-MP420 | AE-MP430 | AE-MP450 | AE-MP470 | AE-MP490 |
| Temperature range | room temperature--300° | room temperature--350° | room temperature--400° | room temperature--400° | room temperature--400° |
| temperature resolution | 0.1℃ | ||||
| repeatability | 0.2℃ at heating rate of 0.2℃/min | ||||
| temperature accuracy | ±0.4℃（<200℃）±0.7℃（<300℃） | ||||
| temperature gradients | 0.1℃--20℃ | ||||
| standard capillary size | I.D. 1.0mm, O.D. 1.4mm | ||||
| display | 8"Color Touch screen | ||||
| Interface | USB×2,RS232, Wi-Fi, RJ45 | ||||
| Magnification | 8 | 8 | 8 | 8 | 8 |
| Capacity per batch | 4pc./batch | 4pc./batch | 4pc./batch | 4pc./batch | 4pc./batch |
| Account authorization | - | YES | YES | YES | YES |
| Operator account | - | 20 | 20 | 20 | 100 |
| Video recording | - | YES | YES | YES | YES |
| Recording time | - | 20 mins | 20 mins | 20 mins | 20 mins |
| Manual testing | YES | YES | YES | YES | YES |
| Automatic testing | - | YES | YES | YES | YES |
| Curve storage | - | - | 100 groups | 200 groups | 500 groups |
| Storage capacity | 8G | 16G | 16G | 32G | 128G |
| Method storage | - | 30 | 30 | 80 | 200 |
| IQ/PQ/OQ | Optional | Optional | Optional | Optional | Included |
| FDA CFR21 part.11 | - | YES | - | YES | YES |
| Power supply | 100-240V 50/60Hz | 100-240V 50/60Hz | 100-240V 50/60Hz | 100-240V 50/60Hz | 100-240V 50/60Hz |
| Power | 100W | 100W | 100W | 100W | 100W |
