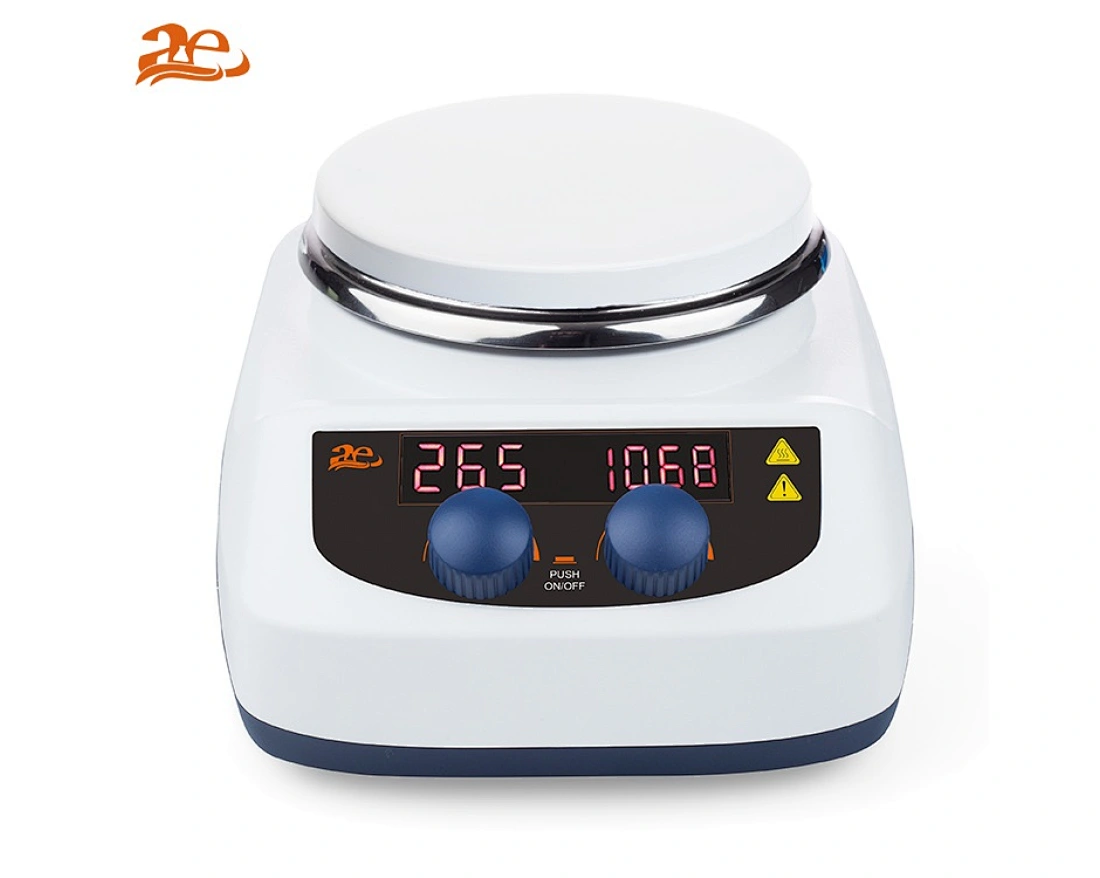

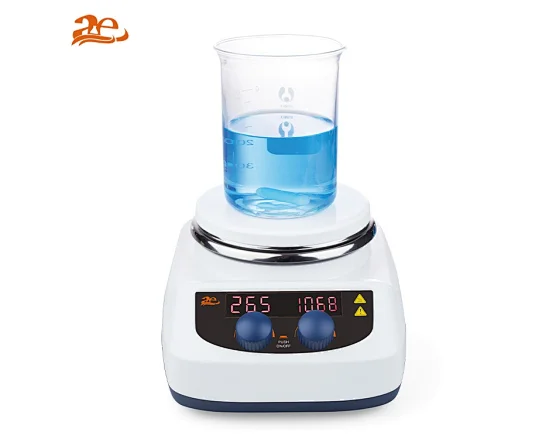

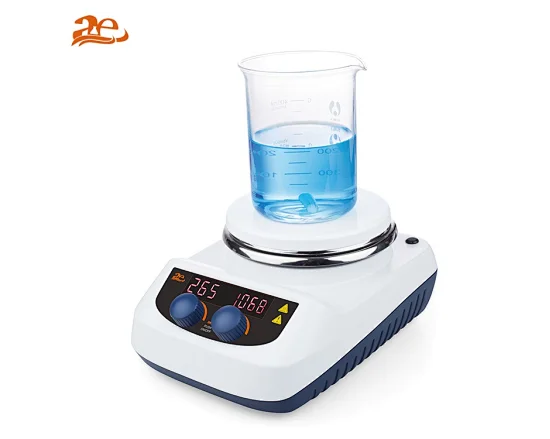

AELAB Magnetic Hotplate Stirrers ASC-202
AELAB Magnetic Hotplate Stirrers ASC-202
AELAB Magnetic Hotplate Stirrers ASC-202
AELAB Magnetic Hotplate Stirrers ASC-202
AELAB Magnetic Hotplate Stirrers ASC-202
AELAB Magnetic Hotplate Stirrers ASC-202
AELAB Magnetic Hotplate Stirrers ASC-202

AELAB Magnetic Hotplate Stirrers ASC-202

Model NO.
ASC-202
Features:

* LCD/LED Digital control of speed and temperature.
* Maintenance free brushless DC motor.
* RS232 interface enables data preservation and transmission and control through a PC.
* Speed setting range from 0-1500rpm.
* RS232 interface provides PC control and data transmission.
* Ceramic work plate with max. temperature of 340°C.
* Various optional accessories make it suitable for many applications.
* Hot warning safety indication on LED when the plate temperature exceeds above 50°C.
* PT1000 external temperature sensor for precise temperature control accuracy of ±0.2°C.
Quantity:
Magnetic Hotplate Stirrers ASC-202
These magnetic stirrers deliver powerful, smooth mixing and safe heating. These are useful in biological, physical, chemical, pharmaceutical laboratories, etc.

Features:
  1. LCD/LED Digital control of speed and temperature.
  2. Maintenance free brushless DC motor.
  3. RS232 interface enables data preservation and transmission and control through a PC.
  4. Speed setting range from 0-1500rpm.
  5. RS232 interface provides PC control and data transmission.
  6. Ceramic work plate with max. temperature of 340°C.
  7. Various optional accessories make it suitable for many applications.
  8. “Hot” warning safety indication on LED when the plate temperature exceeds above 50°C.
  9. PT1000 external temperature sensor for precise temperature control accuracy of ±0.2°C.
Technical Specifications:
ModelAHO-101AHO-102ASC-201ASC-202
TypeHotplate StirrerHotplate StirrerStirrerHotplate Stirrer
Work plate dimensionφ135mm(5 inch)
Work plate materialstainless steel cover with ceramic
Motor typeBrushless DC motor
Motor rating input18W5W
Motor rating output10W3W
Power550W515W
Heating output500W
Voltage100-120/200-240V 50/60Hz
Stirring positions1
Max. stirring quantity[H2O]20L3L
Max. magnetic bar[length]80mm50mm
Speed range100-1500rpm0-1500rpm200-1500rpm
Speed displayLCDScaleLED
Temperature displayLCDScaleLED
Heating temperature rangeRoom temp.-340°C, increment 1°CRoom temp.-280, increment 1°C
Temperature control accuracy±1°C(<100°C),±1%(>100°C)---±1°C(<100°C) ±1%(>100°C)
Over temperature protection420°C320°C
Temperature display accuracy±0.1°C±0.1°C±0.5°C±1°C
External temperature sensorPT1000 (accuracy ±0.2)----PT1000 (accuracy ±0.2)
"Hot"warning50°C50°C-50°C
Data connectorRS232RS232-RS232
Protection classIP42IP42IP42IP21
Timer function-1min to 99h 59min------
Dimension[WxDxH]160×280×85mm
Weight2.8kg
Permissible ambient
temperature and humidity
5-40°C, 80%RH
