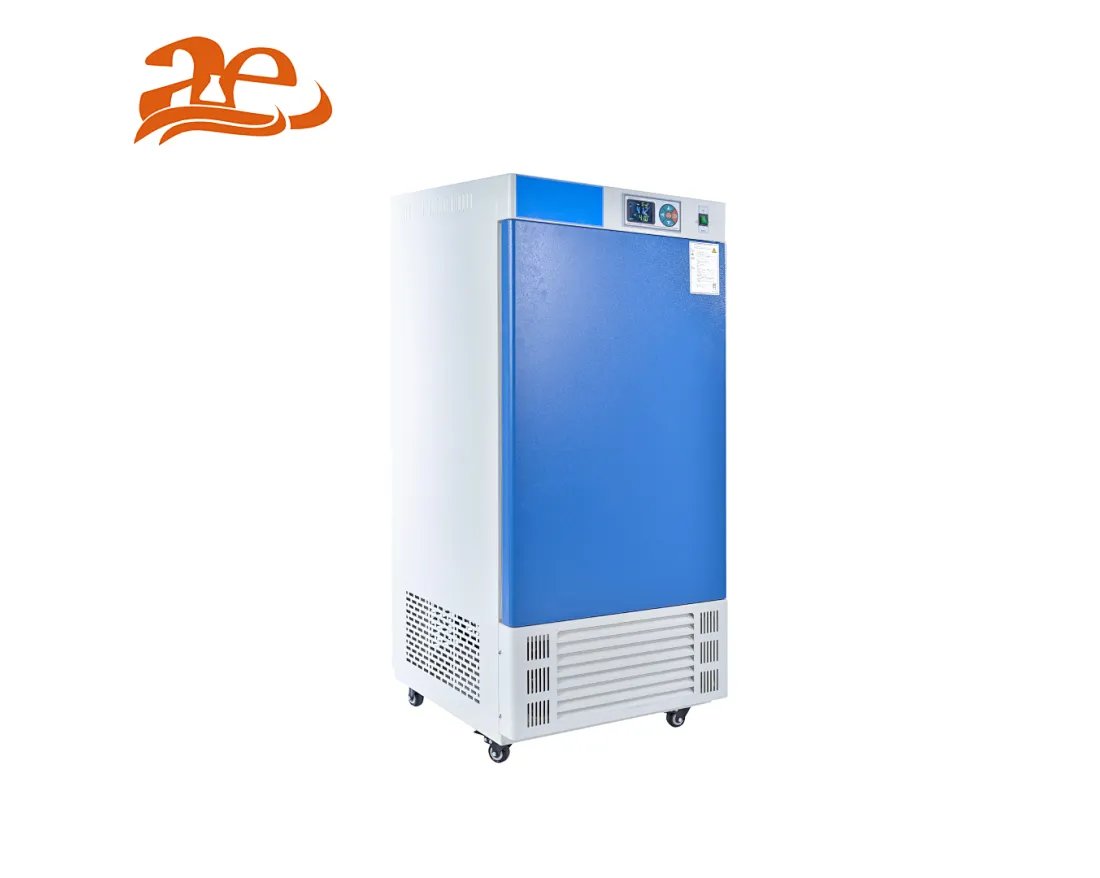

AELAB Low Temperature Incubator AE-RH Series
+Double door structure design, built-in large wide Angle glass door, easy for users to observe the test sample without dead Angle.
+Patent double greenhouse temperature control system, greatly improve the temperature uniformity in the chamber.
+Refrigerating capacity intelligent control system, automatically adjust the compressor refrigeration power, and with cold reflux function, help the compressor Rapid cooling, prolong the life of the compressor.
+Patent double greenhouse temperature control system, greatly improve the temperature uniformity in the chamber.
+Refrigerating capacity intelligent control system, automatically adjust the compressor refrigeration power, and with cold reflux function, help the compressor Rapid cooling, prolong the life of the compressor.
AE-RH150CL AE-RH250CL AE-RH500CL AE-RH150CA AE-RH250CA AE-RH500CA
1
Quantity:
Low Temperature Incubator
Features:
Options:
Specifications:
#low temperature incubator
#incubator temperature
#low incubator
#pid incubator temperature controller
Features:
+Double door structure design, built-in large wide Angle glass door, easy for users to observe the test sample without dead Angle.
+Patent double greenhouse temperature control system, greatly improve the temperature uniformity in the chamber.
+Refrigerating capacity intelligent control system, automatically adjust the compressor refrigeration power, and with cold reflux function, help the compressor Rapid cooling, prolong the life of the compressor.
+Standard large screen LCD display, multiple groups of data on one screen display, menu type operation interface, easy to understand, easy to operate.
+The mirror stainless steel inner bladder, four corners of the semi-arc design, easy to clean, the spacing of the separator in the chamber is adjustable.
+The use of international brand compressor, independent research and development of compressor cooling system, can effectively prolong the life of the compressor.
+JAKEL tube flow circulating fan, unique design of air duct, to create a good air circulation convection, to ensure temperature uniformity.
+PID control mode, temperature control precision fluctuation is small, with timing function, the maximum time set value of 99 hours 59 minutes.
+Committed to the world environmental health initiative, the use of 134A fluorine free refrigerant, high efficiency, energy saving, environmental protection.
Options:
+BOD special socket -- built-in power socket, easy to power the built-in instrument.
+Intelligent program controller -- 30 programming functions to meet the requirements of complex experiments.
+Embedded printer -- easy for customers to print data.
+Independent temperature limit alarm system -- when the temperature exceeds the limit, the heating source will be forcibly stopped to ensure the safety of your laboratory.
+RS485 interface and special software -- connect computer, export experimental data.
+Test hole 25mm/50mm -- can be used to test the actual temperature of the working room.
Specifications:
| Model | AE-RH150CL | AE-RH250CL | AE-RH500CL | AE-RH150CA | AE-RH250CA | AE-RH500CA |
| Power Requirement | AC220V 50HZ | |||||
| Temperature Range | -10~65℃ | -20~60℃ | ||||
| Temperature staility | High±0.3℃ lower:±0.5℃ | |||||
| Temperature Uniform | ±1.0℃（no-load ） | |||||
| Display Resolution | 0.1℃ | |||||
| Compressor | danfoss compressor | |||||
| relay | Schneider | |||||
| Chambermaterial | 304 SUS | |||||
| Cooling system | fluoride-free | |||||
| Power | 1200W | 1400W | 2350W | 1200W | 1400W | 2350W |
| Inner dimension W×D×H(mm) | 480×390×780 | 580×500×850 | 700×700×1020 | 480×390×780 | 580×500×850 | 700×700×1020 |
| Outer dimension W×D×H(mm) | 655×675×1350 | 755×775×1525 | 875×1055×1780 | 675×675×1350 | 755×775×1525 | 875×1055×1780 |
| Volume | 70L | 150L | 250L | 500L | 1000L | 1700L |
| Shelves （standard） | 2pcs | 3pcs | ||||
| Timing | 1~9999min | |||||
