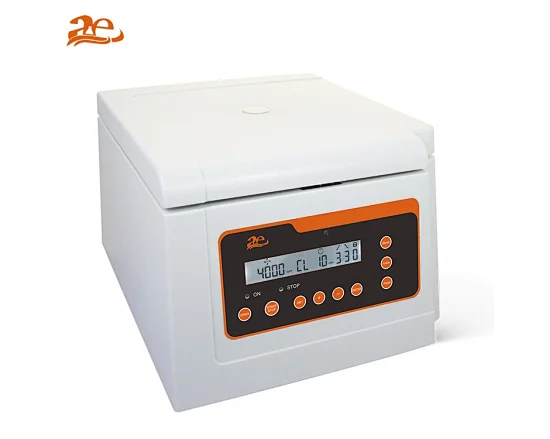

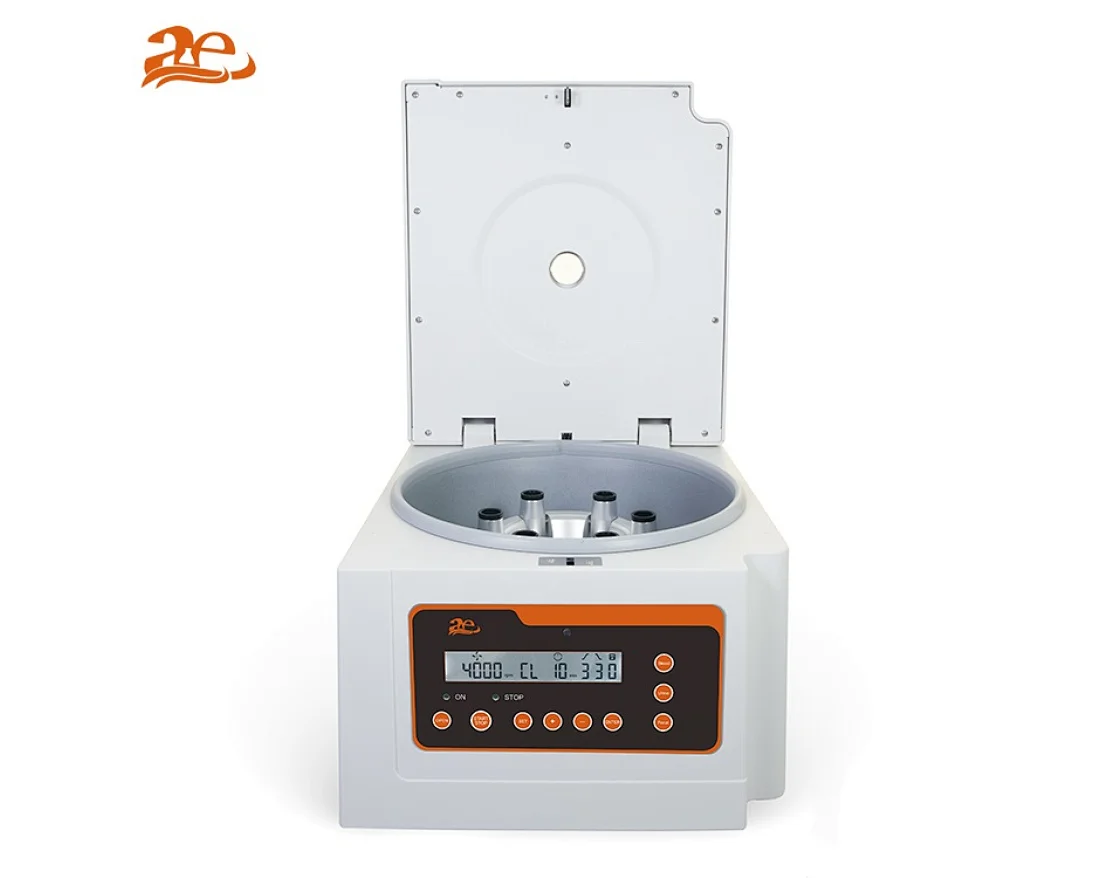

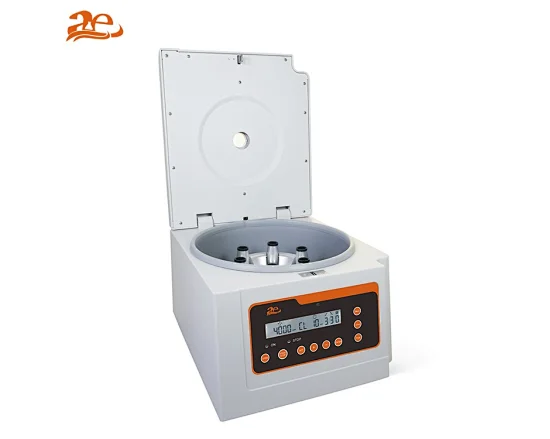

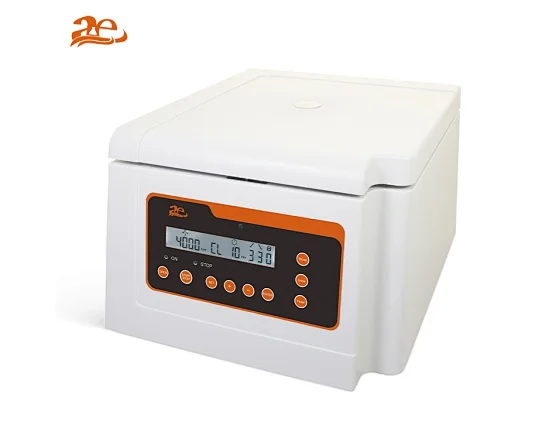

AELAB Low Speed Centrifuge AE-LSC-4C

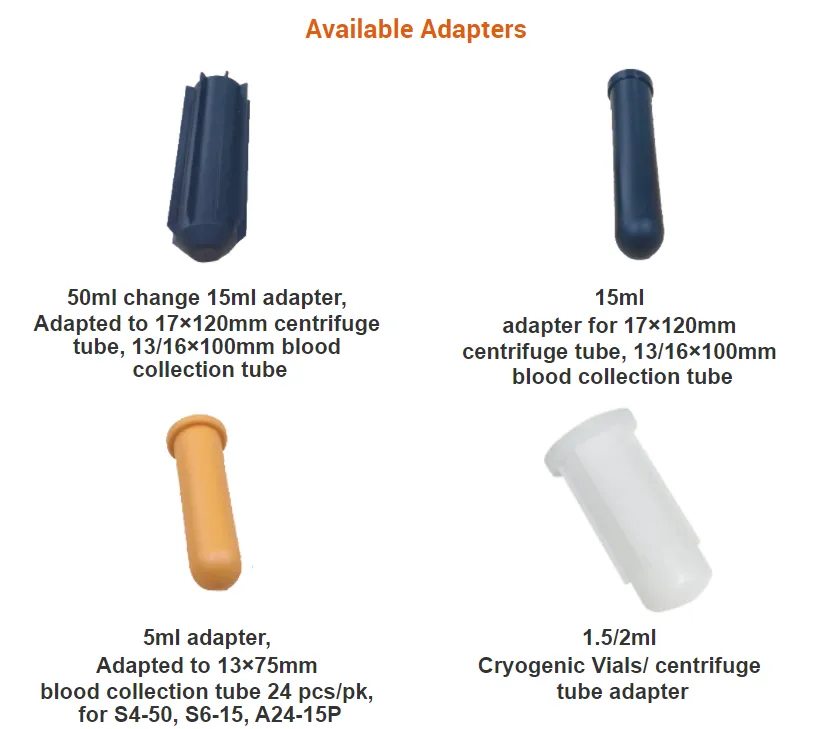

+ Max. capacity 50ml×4, Adapt to different sizes of blood collection tubes and centrifuge tubes suitable for swing out rotor and angle rotor.
+ Rotor speed can be set in RPM/RCF, with 3 programs storage capacity for routine applications.
+ Max. speed 4000rpm.
+Automatic internal diagnosis and self-detection.
+ Maintenance-free brushless DC motor
+ Rotor speed can be set in RPM/RCF, with 3 programs storage capacity for routine applications.
+ Max. speed 4000rpm.
+Automatic internal diagnosis and self-detection.
+ Maintenance-free brushless DC motor
AE-LSC-4C
1
Quantity:
AELAB Low Speed Centrifuge
Features:
+ Max. capacity 50ml×4, Adapt to different sizes of blood collection tubes and centrifuge tubes suitable for swing out rotor and angle rotor.
+ Rotor speed can be set in RPM/RCF, with 3 programs storage capacity for routine applications.
+ Max. speed 4000rpm.
+Automatic internal diagnosis and self-detection.
+ Maintenance-free brushless DC motor
Technical Specifications:
Features:
+ Max. capacity 50ml×4, Adapt to different sizes of blood collection tubes and centrifuge tubes suitable for swing out rotor and angle rotor.
+ Rotor speed can be set in RPM/RCF, with 3 programs storage capacity for routine applications.
+ Max. speed 4000rpm.
+Automatic internal diagnosis and self-detection.
+ Maintenance-free brushless DC motor
Technical Specifications:

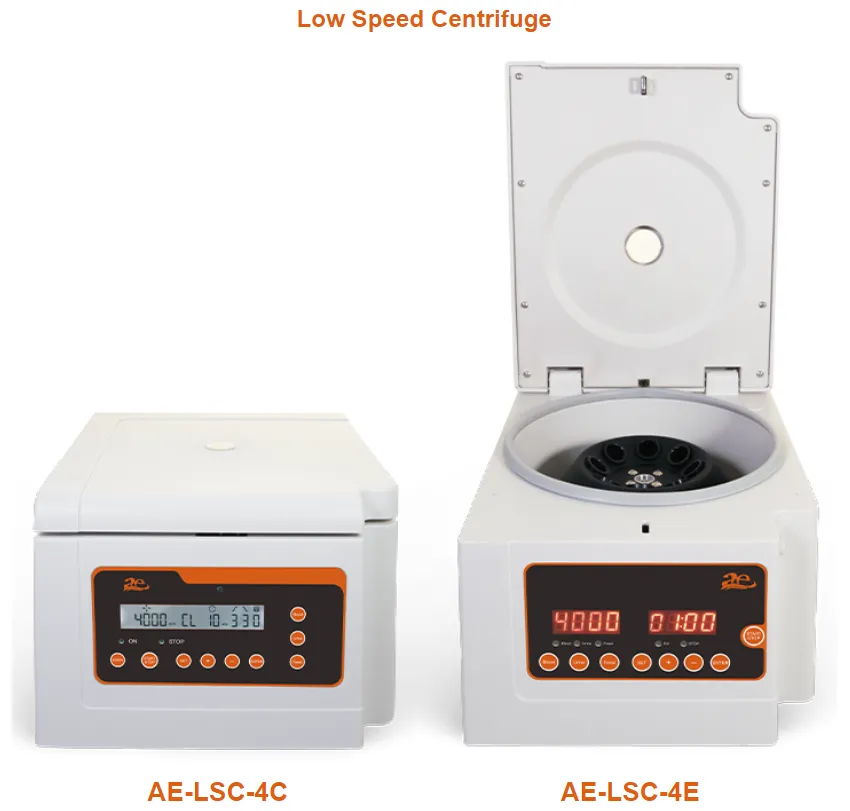

| Model | AE-LSC-4C | AE-LSC-4E |
| Speed range | 500-4000rpm increment: 100rpm | 300-4000rpm increment: 100rpm |
| Max. RCF | 2500×g | 1900×g |
| Speed accuracy | ±100rpm | ±100rpm |

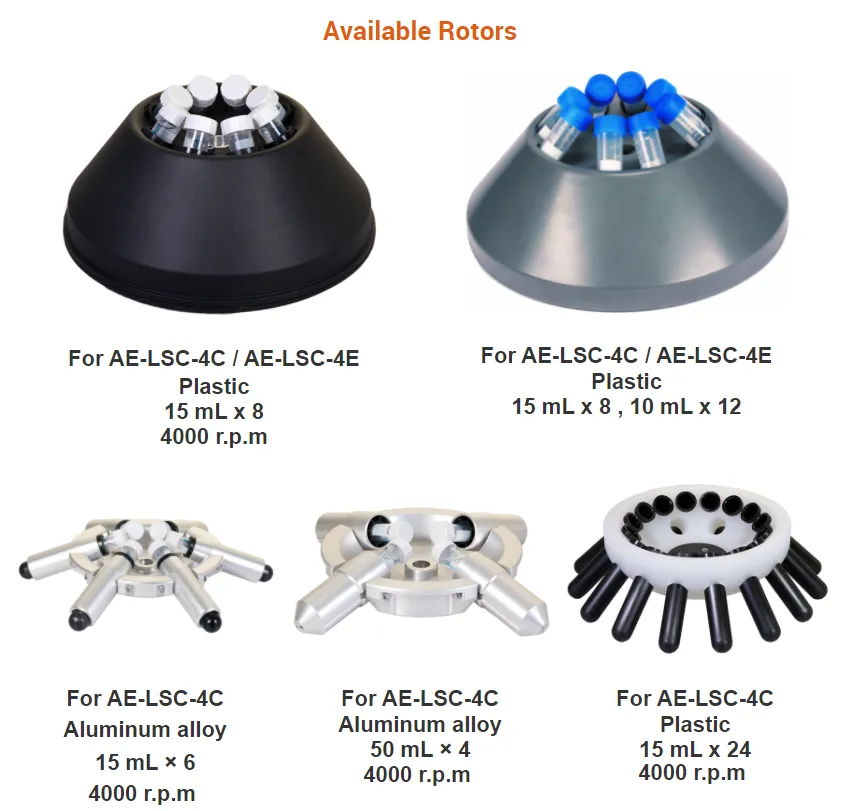

| Rotor | Swing6×15ml | Angel 8×15ml (Default), |
| Swing4×50ml | ||
| Angle 24×15 ml, | Angel 10ml×12 | |
| Angle 12×10ml/8×15ml | ||
| Run time | 1-99min, HOLD | 1-99min, HOLD |
| Motor | Brushless DC motor | Brushless DC motor |
| Display | LCD | LED |
| Program | Blood: 3200rpm,10min. | Blood: 3200rpm,10min. |
| Urine: 1800rpm,5min. | Urine: 1800rpm,5min. | |
| Faecal: 1300rpm,10min. | Faecal: 1300rpm,10min. | |
| Safety Device | Automatic internal diagnosis | Automatic internal diagnosis |
| Acceleration/deceleration | 3↑4↓steps | 25s↑35s↓ |
| Power | Single phase, | Single phase, |
| 100V-240V, 50Hz/60Hz | 100V-240V, 50Hz/60Hz | |
| Dimension(W×D×H) | 364×440×268mm | 286×367×227mm |
| Weight | 14.5kg | 9.2kg |
| Noise | ≤62dB(A) | ≤60dB(A) |
