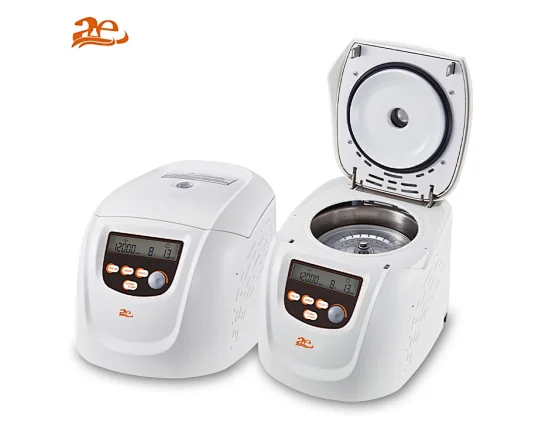

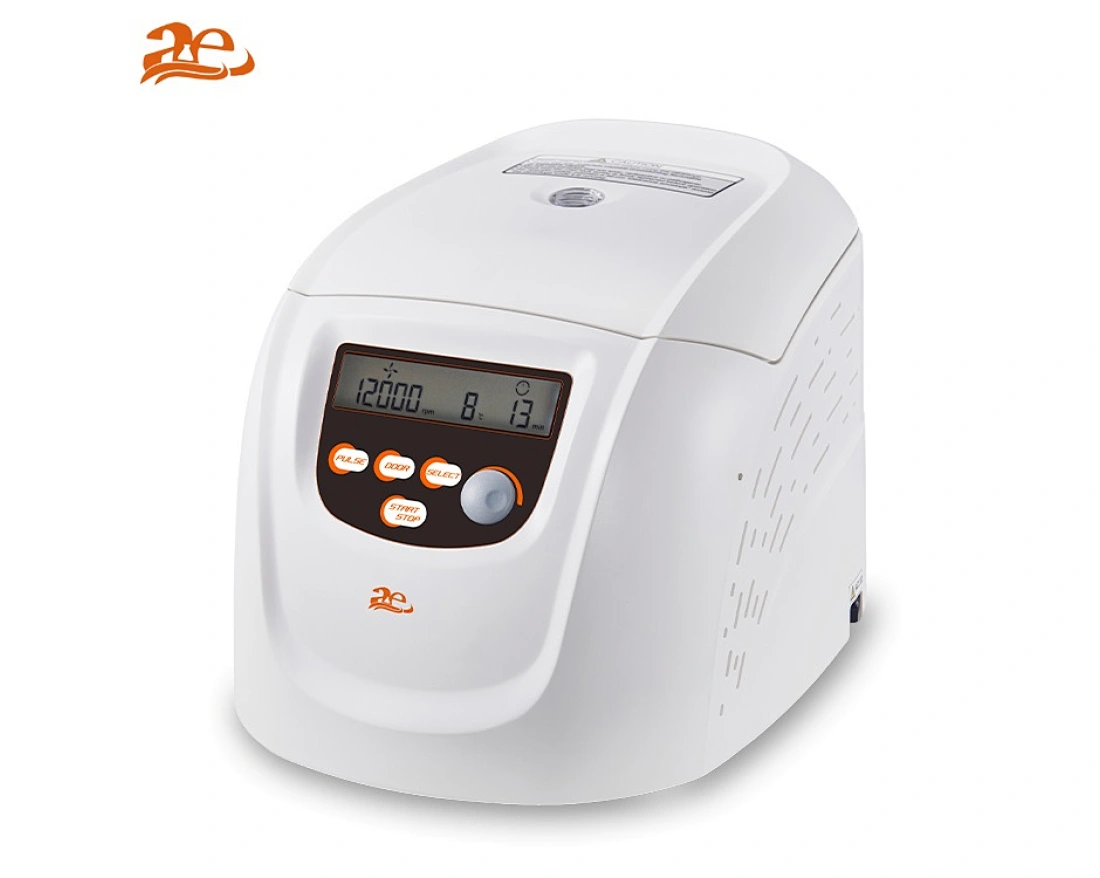

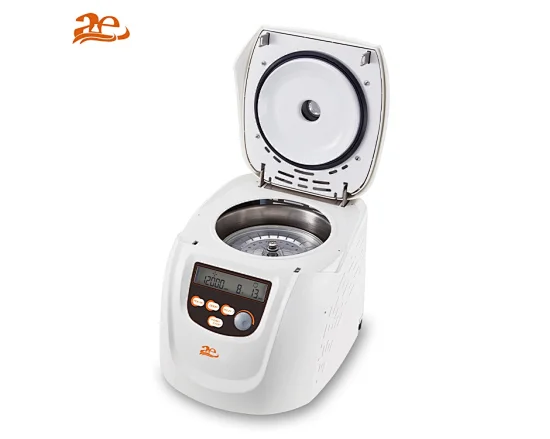

AELAB Laboratory High Speed Mini Micro Centrifuge AE-HSC-15
+ Special multi-flow air cooling design with patent ensures fast cooling of the rotor
+ and low energy consumption
+ Temperature display appropriate for gentle handling of sensitive samples
+ Three-layer sealed rotor prevents accidental leakage during centrifugal process
+ allowing risk-free microbial contamination
+ High strength aluminum alloy rotor can be fully autoclaved for unlimited service life

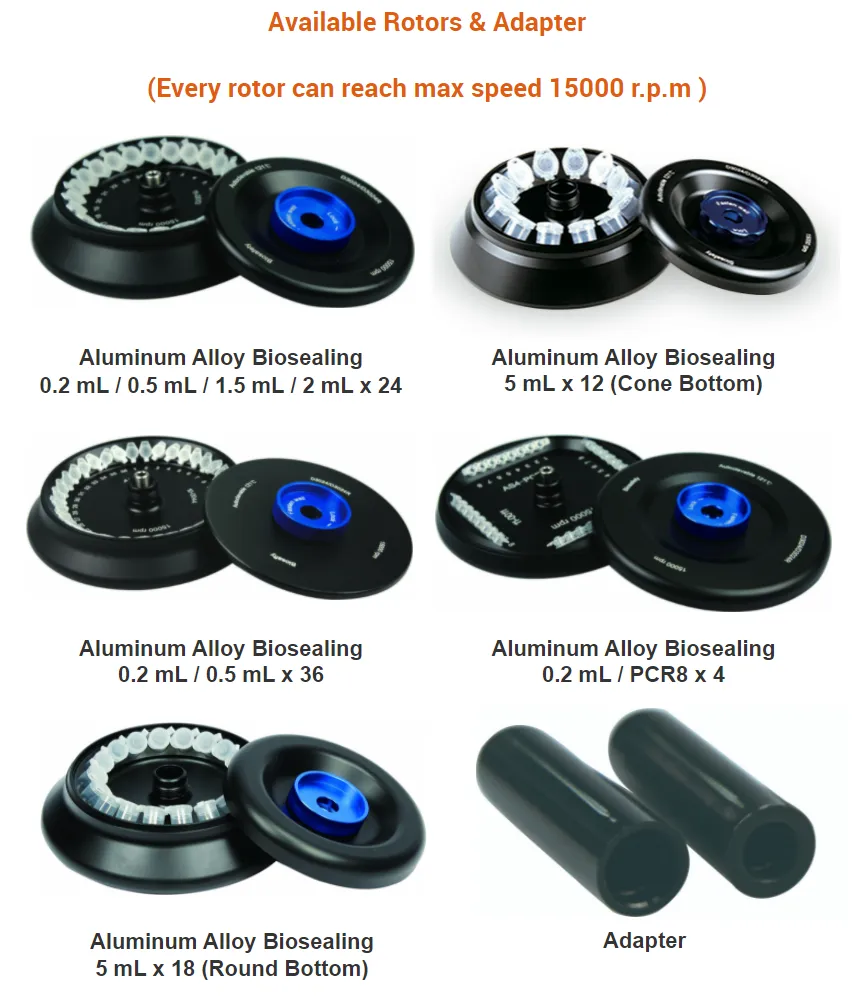

+ Four rotors are optional complete with 24 places 1.5/2.0mL tubes,
+ bigger 5.0mL, smaller 0.2mL and 0.5mL tubes with adapters
+ and low energy consumption
+ Temperature display appropriate for gentle handling of sensitive samples
+ Three-layer sealed rotor prevents accidental leakage during centrifugal process
+ allowing risk-free microbial contamination
+ High strength aluminum alloy rotor can be fully autoclaved for unlimited service life
+ Four rotors are optional complete with 24 places 1.5/2.0mL tubes,
+ bigger 5.0mL, smaller 0.2mL and 0.5mL tubes with adapters
AE-HSC-15
1
Quantity:

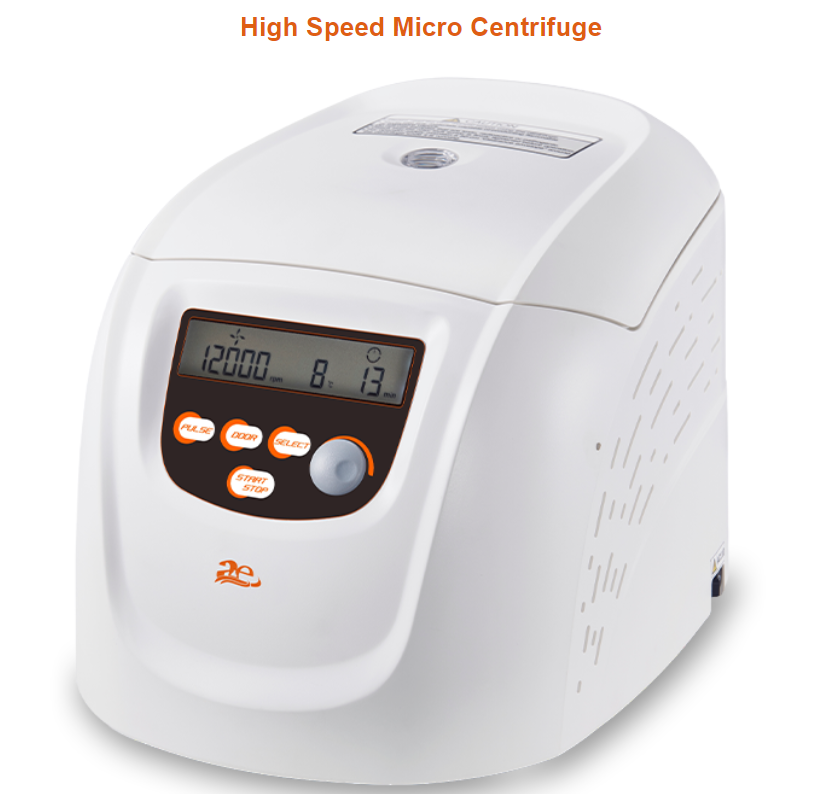

AELAB Laboratory High Speed Mini Micro Centrifuge
Hematocrit centrifuge with AC24P hematocrit rotor is used for determination of volume fractions of erythrocytes in blood for diagnostic purposes and doping tests. Also it is used for the photometric determination of bilirubin content in neonate blood samples. Hematocrit centrifuge with A24-2P tube rotor, can be used for extraction of DNA and RNA.
Features:
+ Special multi-flow air cooling design with patent ensures fast cooling of the rotor
+ and low energy consumption
+ Temperature display appropriate for gentle handling of sensitive samples
+ Three-layer sealed rotor prevents accidental leakage during centrifugal process
+ allowing risk-free microbial contamination
+ High strength aluminum alloy rotor can be fully autoclaved for unlimited service life
+ Four rotors are optional complete with 24 places 1.5/2.0mL tubes,
+ bigger 5.0mL, smaller 0.2mL and 0.5mL tubes with adapters
Technical Specifications:


Hematocrit centrifuge with AC24P hematocrit rotor is used for determination of volume fractions of erythrocytes in blood for diagnostic purposes and doping tests. Also it is used for the photometric determination of bilirubin content in neonate blood samples. Hematocrit centrifuge with A24-2P tube rotor, can be used for extraction of DNA and RNA.
Features:
+ Special multi-flow air cooling design with patent ensures fast cooling of the rotor
+ and low energy consumption
+ Temperature display appropriate for gentle handling of sensitive samples
+ Three-layer sealed rotor prevents accidental leakage during centrifugal process
+ allowing risk-free microbial contamination
+ High strength aluminum alloy rotor can be fully autoclaved for unlimited service life
+ Four rotors are optional complete with 24 places 1.5/2.0mL tubes,
+ bigger 5.0mL, smaller 0.2mL and 0.5mL tubes with adapters
Technical Specifications:
Specifications | AE-HSC-15 |
Max. Speed | 15000rpm(200-15000rpm), increment:10rpm |
Max. RCF | 21380×g, increment:10×g |
Speed Accuracy | ±20 rpm |
Rotor Capacity | 5mL×18, 5mL culture tubex12 0.2mL/0.5mL/1.5mL/ 2mL×24, |
0.5mL×36, PCR8×4 | |
Run Time | 30sec-99min/Continuous |
Motor | Brushless DC moto |
Safety Devices | Dual door interlock, Over-speed detection, |
Automatic internal diagnosis | |
Power | Single-phase,AC220V-240V, 50Hz/60Hz, 5A, AC110V-120V, 50Hz/60Hz, 8A 200W |
Acceleration | 25s↑25s↓ |
/Braking time [Sec] | |
Dimension [D×W×H] | 280×364×266mm |
Weight | 12kg |
Certification | CE cTÜVus FCC MCA |
Advanced Features | Speed/RCF switch; Short-time run function; sound-alert function |
Noise Level | ≦64dB |
