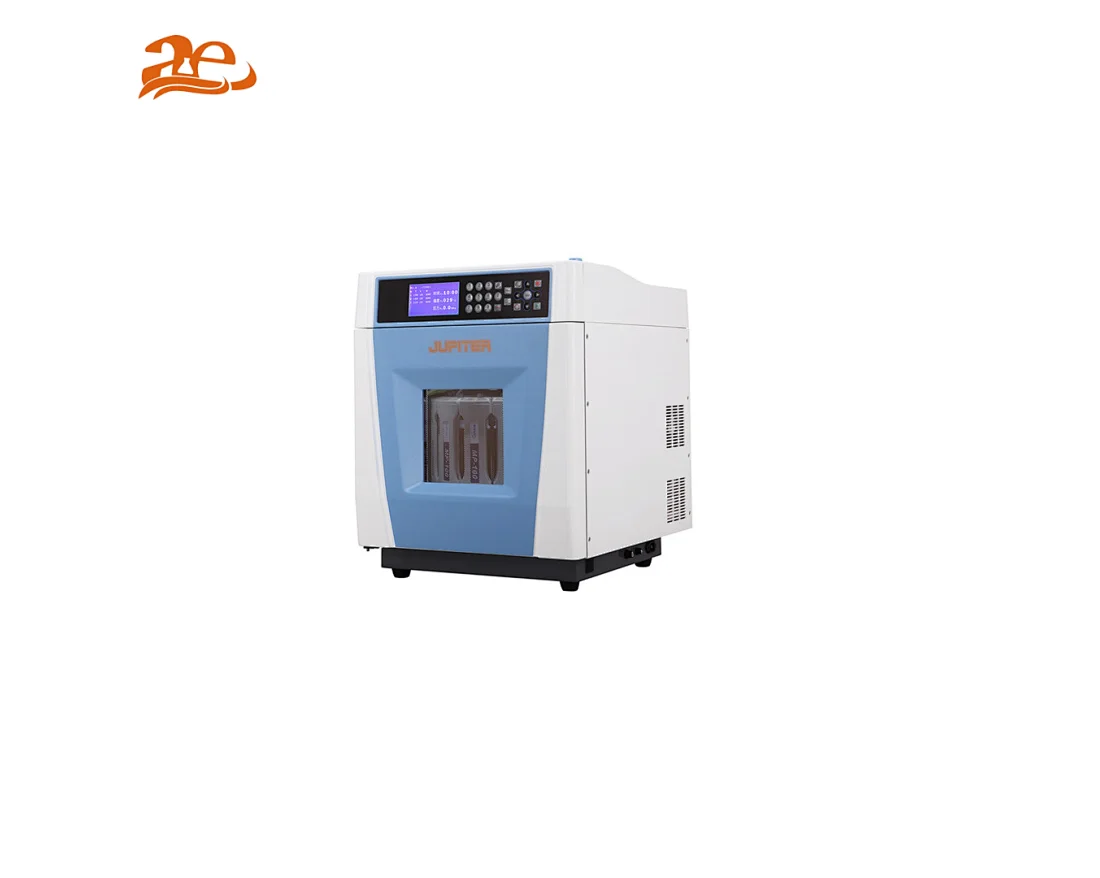

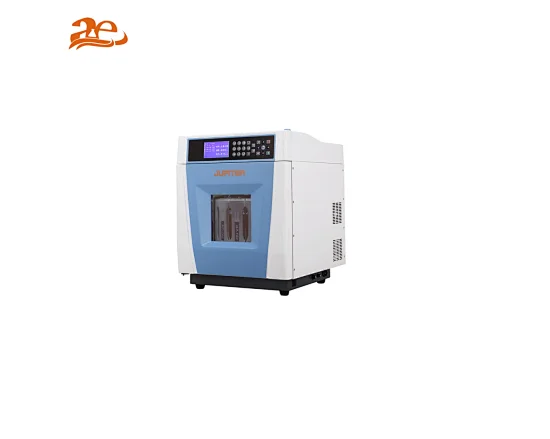

AELAB Jupiter Series High Throughput Closed Microwave Digestion/Extraction Workstation
Safety and convenient in operation, high in efficiency and durable in use.Satisfy the requirements of different samples' digestion / extraction processing;Up to 12 vessels high-throughput processing capacity; Exclusive patented multifunctional safety bolt design, instead of explosion-proof membrane and other consumables
Jupiter Series
AELABJupiter Series High Throughput Closed Microwave Digestion/Extraction Workstation

+Safety and convenient in operation, high in efficiency and durable in use.
+Satisfy the requirements of different samples' digestion / extraction processing;
+Up to 12 vessels high-throughput processing capacity;
+Exclusive patented multifunctional safety bolt design, instead of explosion-proof membrane and other consumables
+Aerospace composite fiber outer vessel-the highest level of security measures;
+Large-screen color software interface, clear and direct-viewing in operation, bright in appearance and smart in performance.
+Connected to and controlled by computer, achieving secure remote operation, and unlimited program storage database;
+Small volume VS big chamber, which is advance in industrial design and provides perfect experience;
+Free lifetime warranty to the core components - magnetron of the microwave Digestion System;
+20 years of industry experience with no life injury;
+Won China’stop award-BCEIA GOLD four times and leads in the number of users nationally;

Application area

Food and drug (milk and dairy products, health food), cosmetics, agricultural and sideline products, aquatic products, biological tissues, various types of feed,energy and petrochemical, geology and mineral resources, environmental resources (air, water, soil), metals, alloys, ceramics, RoHS, medicine,domestic wastes.

With more than 20 years experience in microwave chemistry instrument industry and the latest industrial technology,JUPITER series high throughput closed microwave digestion/extraction workstation created can be widely used in routine laboratories and specially applied under extreme conditions. The highest level of security measures adopted such as the use of aerospace composite fiber vessel and safety bolt(patented), simple and smart operating software and the use of high-quality materials such as corrosion-resistant ultra-long life industrial chamber show that our company is always striving for perfection and makes breakthrough in technology, process and materials. JUPITER series microwave digestion/extraction workstation, integrated with the latest industrial technology and materials sate new example in the company, which together with MASTER series, forms the company's complete product line to meet the needs of various industries and strive to provide customers the safety, convenient, efficient, durable products and experience.

+The outer vessel of JUPITER exclusively made by ultra strength aerospace composite fiber is invincible in anti-explosion,and its performance indicators such as corrosion resistance,high temperature/impact/pressure resistance are far better than that of the widely used modified PEEK engineering plastics vessel (this material is fusible at high temperature, fragile at high pressure and explosive by chemical corrosion)fundamentally eliminating safety risks to operator in use.
+Quantified vertical blast/safety bolt design, ensures samples be closed completely and trigger a quantified pressure relief while over pressure; safety bolt (patent) unit,instead of safety membrane and other consumables, ensure the digestion vessel be sealed completely under normal working conditions. And only when the pressure is large enough and may constitute a danger to the safety, the safety bolt will automatically blow out vertically and the cover auto-up to release the pressure, achieving quantified vertical blast pressure-relief to guarantee its well operation. Under normal operation, the safety bolt won’t blow out and requires no replacement. In addition, it is easy for venting to open the cover after completion of digestion.
The industrial-leading pressure measuring technology by piezoelectric crystal andhigh-precision Pt sensor temperature measurement and control, throughclosed-loop control of microwave power by inverter technique, ensure theaccuracy of pressure and temperature monitoring and control. The application ofpatented piezoelectric crystal brings about complete isolation of samples frompressure measurement system in digestion process, thoroughly solving theproblems of cross contamination of samples due to commonly used air pipe inmarket and of the limitation in digestion samples because of low-pressure proofof air pipe.
+Automatic Frequency Control of Non-pulse Microwave Power ensuresthe accurate closed-loop control of the temperature and pressure, and alsoimproves the efficiency of microwave transmitter of magnetron. 12 vessel perbath throughput capability, increase the efficiency of the pretreatment in the lab.
+The patented design that the whole set of digestion vessels inchamber always continuous rotates in one direction, breaks conventions of<360°back and forth rotation of the digestion unit, avoiding uneven heatingon vessels by microwave and reducing impact on turntable motor, extendingservice life.
+The new digestion, changing its traditional bulky appearance, usesEuropean industrial design, colorful and smart, that in line with the needs ofmodern laboratory building. It re-layout its internal structure morescientifically that it reduces the volume of the machine while providing 42L reactor chamber to ensure uniformheating of the microwave and convenient operation.
+Sturdy and durable industrial-grade chamber design strengthen its impact resistance; Professionalfocused microwave design make microwave heating more efficient; Multi-layerchemical resistant coating greatly improves the service life and safety of thesystem; the popup cushioning explosion-proof sliding chamber door builds apassive safety protection system, easing operation; double-locked self-checkingsystem of the chamber door and the push-type open-door mechanism at the topmake the operation simple and easy;efficient exhaust system design achievesfast and safe air-cooled cooling (20 min cooling from 200℃ to 60℃), improving operational efficiency.
+Jupiter series have many advantages: safety external PC control; friendly windowsinterface that is easy to be operated; display digestion temperature, pressureand changes of microwave transmit power in real time; directly display itsworking process;  through computer'sremote control station, do operations such as setting, running, change time andpower etc; the software can save unlimited amount of digestion solution, makingit convenient for users; the user-friendly software operation like a chemist,who help you complete various operations, providing customers with safe,scientific and convenient operation experience (color software and computerconnection are for Jupiter-A).


Standard configuration: 10 JP-100 ultra strength closed vessels with outer vessels and frames.
Optional configuration: 12 JP-100 ultra strength closed vessels with outer vessels and frames.
JP-100 ultra strength frame closed reaction vessel
Maximum Pressure:15MPa (2250psi)
Maximum working pressure:4Mpa(600psi)
Maximum sustained temperature: 300degre
Maximum working temperature: 250degree
Inner vessel volume: 100ml
Outer vessel material: ultra strength aerospace composite fiber
Inner vessel material: TFM (Modified PTFE)  Maximum batch capacity: 12 vessels

Main Technical Parameters of JUPITER
Power220-240 VAC 50/60Hz  8A
Microwave frequency2450MHz
Installed power1800W
Maximum output power1300Wnon-pulse continuous automatic variable frequency control
Turntable designLoad 12 JP-100 closed digestion vessels at same time
(standard configuration is 10 vessels)
Pressure measurement and control systemPiezoelectric crystal pressure sensor, pressure control range :0-10MPa (1500 psi), accuracy ± 0.01MPa
Temperature measurement and control systemHigh-precision platinum resistor temperature sensor, temperature range :0-300°C, accuracy ±1
Outer vessel materialExplosion-proof outer vessel made of aerospace composite fiber
Inner vessel materialModified TFM material
SoftwareJUPITER-A apply JSs software. 5 inch color screen display, USB connection, can save unlimited amount of digestion solution.Simplified JUPITER-B apply JSb software.5 inch screen display and up to 50 methods can be stored.
Chamber exhaust systemHigh-power anticorrosion axial fan, exhaust speed: 3.1 m3/min
Operating ambient temperature0-40 °C
Working environment humidity15-80%RH
Whole physical size450*600*620mm (Width x Depth x Height)
Net weight:42 KG
