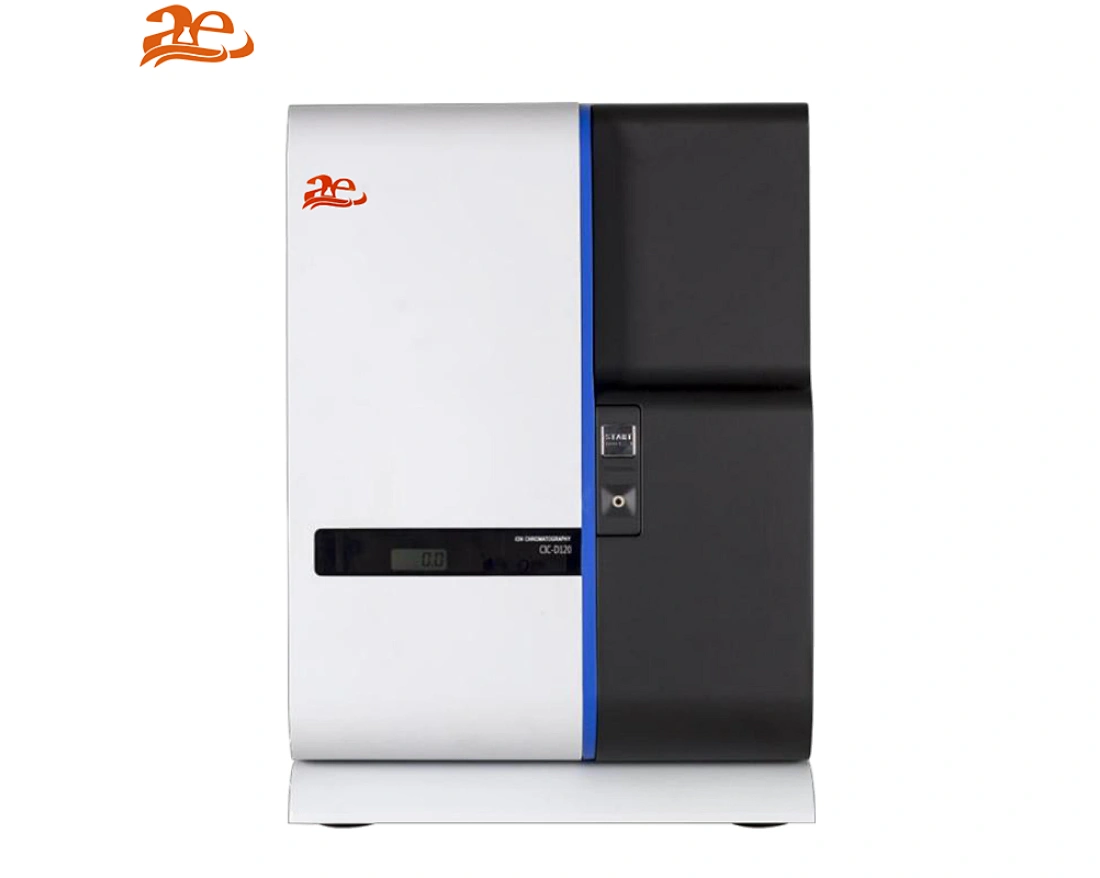

AELAB Ion Chromatograph CIC-D120
+Temperature-control bipolar conductivity detector Greater detection range,better precise analysis
+Built-in circulating 3D constant temperature technology Temperature stability time is less than 30 mins, ensuring the accuracy and reliability of test data
+The world's leading full-range series of ion chromatographic columns High efficiency, large capacity of the columns for detecting ions of varied compositions
+Built-in circulating 3D constant temperature technology Temperature stability time is less than 30 mins, ensuring the accuracy and reliability of test data
+The world's leading full-range series of ion chromatographic columns High efficiency, large capacity of the columns for detecting ions of varied compositions
CIC-D120
1
Quantity:
AELABCIC-D120IonChromatograph
Features:
#liquid chromatograph
#hplc chromatograph
Features:
+Temperature-control bipolar conductivity detector Greater detection range,better precise analysis
+Built-in circulating 3D constant temperature technology Temperature stability time is less than 30 mins, ensuring the accuracy and reliability of test data
+The world's leading full-range series of ion chromatographic columns High efficiency, large capacity of the columns for detecting ions of varied compositions
+Self-Regenerating ElectrolyticMicro-membrane Suppressor.
+High pressure resistance, small dead volume, highly responsive to signals
+Able to detect anions and cations at the ppb level
+Work across a variety of detectors, to expand the scope of applications of ion chromatography.
Technical Parameter:Ion Chromatographic Pump | Type | High-pressure and low-pulse two-piston tandem advection pump |
| Maximum Pressure | 42MPa | |
| Pressure Display Accuracy | ≤0.1MPa | |
| Flow Stability | (0.2-0.5)mL/min≤3%; (0.5-1.0)mL/min≤2%; ＞1.0mL/min≤2%; | |
| Allowable Deviation of Flow | (0.2-0.5)mL/min , ±5%; (0.5-1.0)mL/min, ±3%; ＞1.0mL/min, ±2%; | |
| Flow Range | 0.001~9.999mL/min | |
| Pressure Pulse | ≤0.5% | |
| Flow Precision | ≤0.1% | |
| Flow Accuracy | ≤0.1% | |
| Numerical-control and Electromagnetic Sample Injector | Maximum Pressure | 35MPa |
| Contact Material of the Rotor | PEEK | |
| Control Mode | By Stepper motor | |
| Power Supply | 24V (DC) | |
Suppressor | Type | Self-Regenerating electrolytic micro-membrane suppressor |
| Maximum Pressure | 6.0MPa | |
| Dead Volume | <50μL |
Digital and Temperature- control Detection System | Conductivity Detector | Type | Temperature--control and bipolar conductivity detector |
| Detection Mode | Bipolar conductivity detection | ||
| Cell Volume | ≤0.8μL | ||
| Detection Range | 0～45000μS/cm | ||
| Detection Resolution | ≤0.0020nS/cm | ||
| Output Voltage | -6000~+6000mV (adjustable) | ||
| Electronic Noise | 0.02nS | ||
| Baseline Noise | ≤0.001μS | ||
| Baseline Drift | ≤0.01μS | ||
| Operating Temperature Range | Room temperature +5 ℃~60 ℃±0.01℃ | ||
| Controlling Temperature Accuracy | ±0.01 ℃ | ||
| Maximum Pressure | 10.0MPa | ||
| Linear Range | ≥103 | ||
| Instrument Linearity | ≥0.999 | ||
| Quantitative Repeatability | ≤0.5% | ||
| Qualitative Repeatability | ≤0.5% | ||
| Minimum Detectable Concentration | Cl-≤0.0002ug/mL; Li+≤0.0002ug/mL | ||
| Flow System | Plastic Flow Path | Made of PEEK materials | |
| Six-way Valve | PEEK material, pressure 5000psi;Independent automatic collecting and flow function. | ||
| Power Supply | 150W | ||
| External Size(L*W*H*) | 350*470*510(mm) | ||
| Net Weight(KG) | 26 | ||
| Gross Weight(KG) | 32 | ||
