Model NO.
AHS-102
+ Microprocessor PID controls.
+ RS232 interface enables data preservation and control by a PC.
+ LCD/LED display with speed and temperature control knobs.
+ Max. heating temperature of 550°C.
+ Ceramic work plate of 184x184mm.
+ Speed is adjustable from 100 to 1500rpm.
+ "Hot" safety indication on LCD when the plate temperature is above 50°C.
+ PT1000 external temperature sensor for precise temperature control.
+ Ceramic work plate with a high power of 1050W reaches a maximum temperature of 550°C.
Quantity:

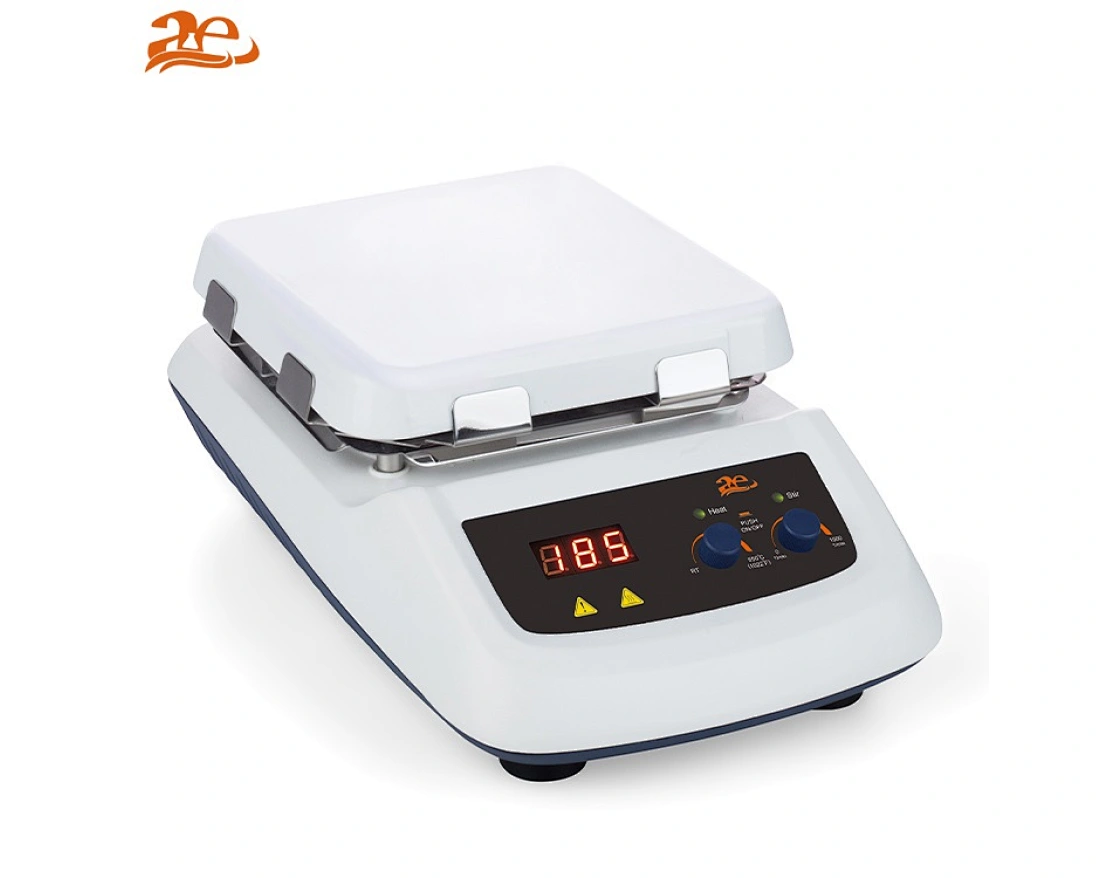

AELAB Hotplate Stirrer AHS-102
7” inch hotplate magnetic Stirrers 550°C series are suitable for various heating and mixing applications with excellent chemical resistance, compact shape and efficient heat transfer. They are widely used in every field of science like biology, chemistry, physical science, pharmaceutical science etc.

Features:

+ Microprocessor PID controls.
+ RS232 interface enables data preservation and control by a PC.
+ LCD/LED display with speed and temperature control knobs.
+ Max. heating temperature of 550°C.
+ Ceramic work plate of 184x184mm.
+ Speed is adjustable from 100 to 1500rpm.
+"Hot"safety indication on LCD when the plate temperature is above 50°C.

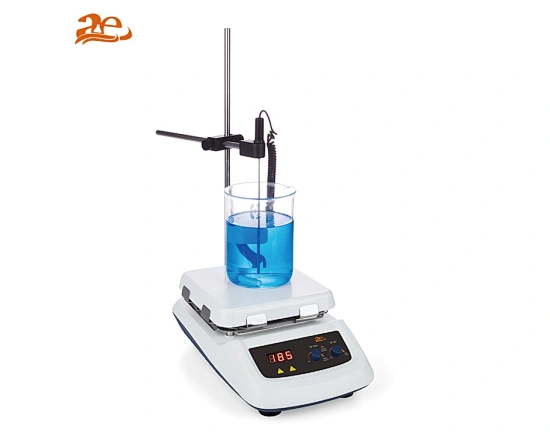

+ PT1000 external temperature sensor for precise temperature control.
+ Ceramic work plate with a high power of 1050W reaches a maximum temperature of 550°C.


Technical Specifications:


ModelAHS-101AHS-102AHA-201
TypeHotplate StirrerHotplate
Work plate Dimension [W x D]184x184mm (7 inch)
Work plate materialGlass ceramic
Motor typeBrush less DC motorShaded pole motor---
Motor rating input18W15W---
Motor rating output10W1.5W---
Power1050W1030W1010W
Heating output1000W
Voltage100-120/200-240V  50/60Hz
Stirring positions11---
Max. stirring quantity, [H2O]20L10L---
Max. magnetic bar[length]80mm80mm---
Speed range100-1500rpm0-1500rpm---
Speed displayLCDScale---
Temperature displayLCDLEDLED
Heating temperature rangeRoom Temp.-550°C,
increment 1°C
Room Temp.-550°C,
increment5°C
Temperature control accuracy±1 °C (<100°C) ±1%(>100°C)±10°C
Overheating protection580°C
Temperature  display accuracy±0.1°C
External  temperature sensorPT1000 (accuracy ±0.2)
"Hot"warning50°C
Data connectorRS232------
Protection classIP21
Dimension [WxDxH]215x360x112mm
Weight5.3kg
Permissible ambient temperature and humidity5-40°C, 80%RH




  • AELAB Hotplate Stirrers AHS-101 AHS-102 AHA-201.pdf:Downloads
