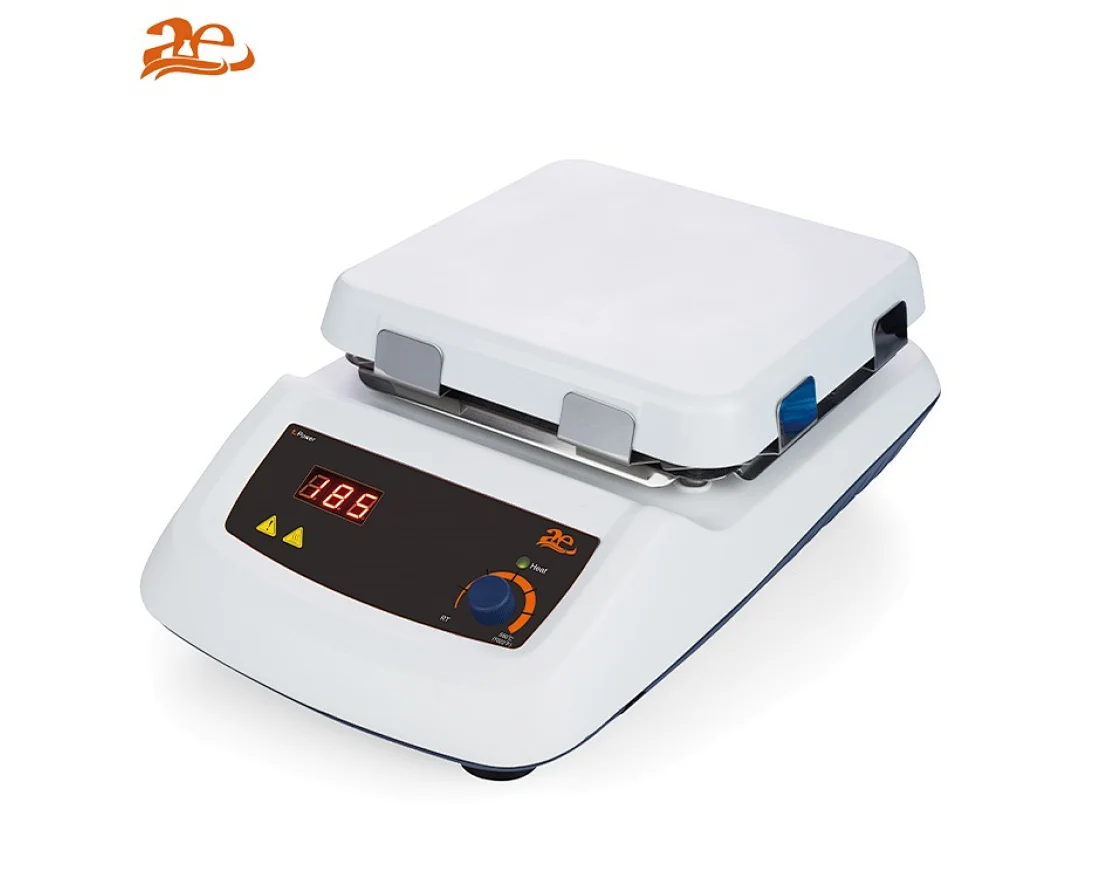

AELAB Hotplate AHA-201
Hot plate stirrer widely used in research and development, industrial and university laboratories worldwide.
AHA-201
1
Quantity:
AELAB Hotplate AHA-201
7” inch hotplate magnetic Stirrers 550°C series are suitable for various heating and mixing applications with excellent chemical resistance, compact shape and efficient heat transfer. They are widely used in every field of science like biology, chemistry, physical science, pharmaceutical science etc.
Features:
+ Microprocessor PID controls.
+ RS232 interface enables data preservation and control by a PC.
+ LCD/LED display with speed and temperature control knobs.
+ Max. heating temperature of 550°C.
+ Ceramic work plate of 184x184mm.
+ Speed is adjustable from 100 to 1500rpm.
+"Hot"safety indication on LCD when the plate temperature is above 50°C.
+ PT1000 external temperature sensor for precise temperature control.
+ Ceramic work plate with a high power of 1050W reaches a maximum temperature of 550°C.
Technical Specifications:
7” inch hotplate magnetic Stirrers 550°C series are suitable for various heating and mixing applications with excellent chemical resistance, compact shape and efficient heat transfer. They are widely used in every field of science like biology, chemistry, physical science, pharmaceutical science etc.
Features:
+ Microprocessor PID controls.
+ RS232 interface enables data preservation and control by a PC.
+ LCD/LED display with speed and temperature control knobs.
+ Max. heating temperature of 550°C.
+ Ceramic work plate of 184x184mm.
+ Speed is adjustable from 100 to 1500rpm.
+"Hot"safety indication on LCD when the plate temperature is above 50°C.
+ PT1000 external temperature sensor for precise temperature control.
+ Ceramic work plate with a high power of 1050W reaches a maximum temperature of 550°C.
Technical Specifications:
| Model | AHS-101 | AHS-102 | AHA-201 |
| Type | Hotplate Stirrer | Hotplate | |
| Work plate Dimension [W x D] | 184x184mm (7 inch) | ||
| Work plate material | Glass ceramic | ||
| Motor type | Brush less DC motor | Shaded pole motor | --- |
| Motor rating input | 18W | 15W | --- |
| Motor rating output | 10W | 1.5W | --- |
| Power | 1050W | 1030W | 1010W |
| Heating output | 1000W | ||
| Voltage | 100-120/200-240V 50/60Hz | ||
| Stirring positions | 1 | 1 | --- |
| Max. stirring quantity, [H2O] | 20L | 10L | --- |
| Max. magnetic bar[length] | 80mm | 80mm | --- |
| Speed range | 100-1500rpm | 0-1500rpm | --- |
| Speed display | LCD | Scale | --- |
| Temperature display | LCD | LED | LED |
| Heating temperature range | Room Temp.-550°C, increment 1°C | Room Temp.-550°C, increment5°C | |
| Temperature control accuracy | ±1 °C (<100°C) ±1%(>100°C) | ±10°C | |
| Overheating protection | 580°C | ||
| Temperature display accuracy | ±0.1°C | ||
| External temperature sensor | PT1000 (accuracy ±0.2) | ||
| "Hot"warning | 50°C | ||
| Data connector | RS232 | --- | --- |
| Protection class | IP21 | ||
| Dimension [WxDxH] | 215x360x112mm | ||
| Weight | 5.3kg | ||
| Permissible ambient temperature and humidity | 5-40°C, 80%RH | ||
