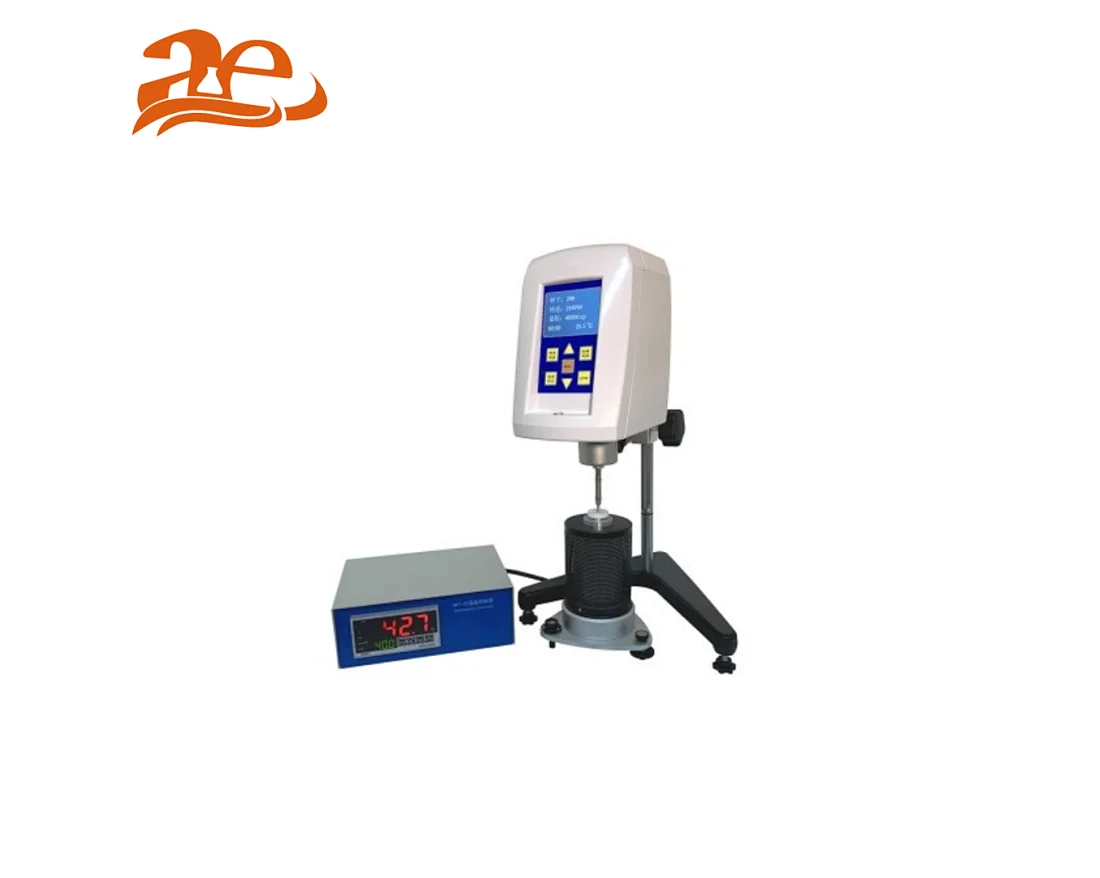

AELAB High Temperature Viscometer SSR-H Series
The high temperature viscometer adopts coaxial center structure, uses the small quantity sample adapter, each measurement needs the sample quantity to be very small, the temperature control is quick and accurate. Full range, all stop linearity through the PC interface, with different viscosity of standard samples for measurement correction, to ensure that the instrument has high accuracy and repeatability. Wide range of measurements suitable for testing of different materials.
SSR-H Series
Quantity:

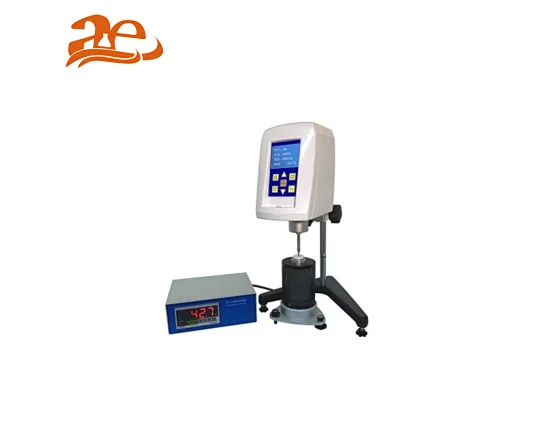

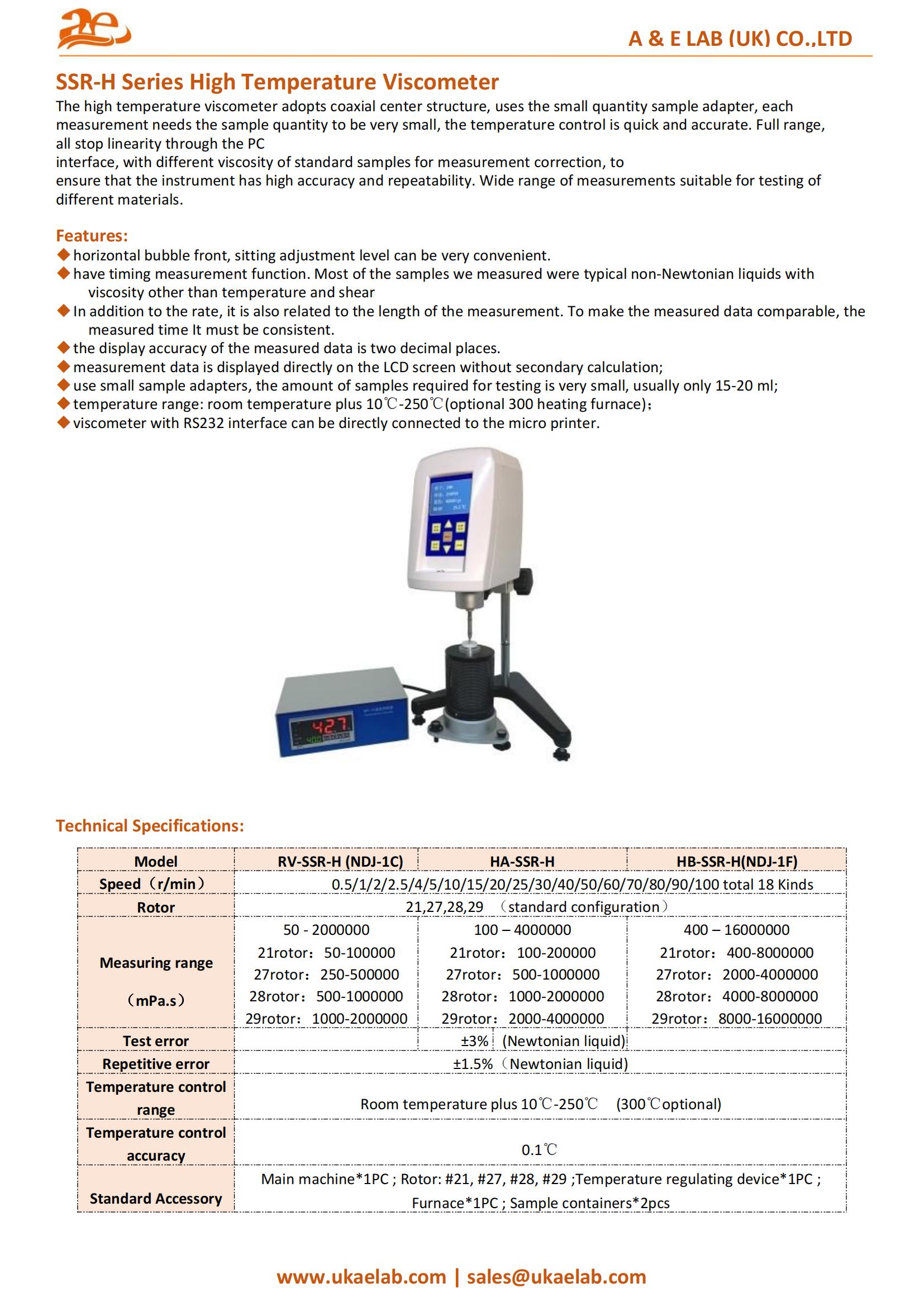

SSR-H Series High Temperature Viscometer
The high temperature viscometer adopts coaxial center structure, uses the small quantity sample adapter, each measurement needs the sample quantity to be very small, the temperature control is quick and accurate. Full range, all stop linearity through the PC interface, with different viscosity of standard samples for measurement correction, to ensure that the instrument has high accuracy and repeatability. Wide range of measurements suitable for testing of different materials.
Features:
The high temperature viscometer adopts coaxial center structure, uses the small quantity sample adapter, each measurement needs the sample quantity to be very small, the temperature control is quick and accurate. Full range, all stop linearity through the PC interface, with different viscosity of standard samples for measurement correction, to ensure that the instrument has high accuracy and repeatability. Wide range of measurements suitable for testing of different materials.
Features:
+ horizontal bubble front, sitting adjustment level can be very convenient.
+ have timing measurement function. Most of the samples we measured were typical non-Newtonian liquids with viscosity other than temperature and shear
+ In addition to the rate, it is also related to the length of the measurement. To make the measured data comparable, the measured time It must be consistent.
+ the display accuracy of the measured data is two decimal places.
+ measurement data is displayed directly on the LCD screen without secondary calculation;
+ use small sample adapters, the amount of samples required for testing is very small, usually only 15-20 ml;
+ temperature range: room temperature plus 10℃-250℃(optional 300 heating furnace)；
+ viscometer with RS232 interface can be directly connected to the micro printer.
Technical Specifications:
#high temperature series battery
#high temperature tube series
| Model | RV-SSR-H (NDJ-1C) | HA-SSR-H | HB-SSR-H(NDJ-1F) | |
| Speed（r/min） | 0.5/1/2/2.5/4/5/10/15/20/25/30/40/50/60/70/80/90/100 total 18 Kinds | |||
| Rotor | 21,27,28,29（standard configuration） | |||
Measuring range （mPa.s） | 50 - 2000000 21rotor：50-100000 27rotor：250-500000 28rotor：500-1000000 29rotor：1000-2000000 | 100 – 4000000 21rotor：100-200000 27rotor：500-1000000 28rotor：1000-2000000 29rotor：2000-4000000 | 400 – 16000000 21rotor：400-8000000 27rotor：2000-4000000 28rotor：4000-8000000 29rotor：8000-16000000 | |
| Test error | ±3% | (Newtonian liquid) | ||
| Repetitive error | ±1.5%（Newtonian liquid) | |||
| Temperature control range | Room temperature plus 10℃-250℃(300℃ optional) | |||
| Temperature control accuracy | 0.1℃ | |||
Standard Accessory | Main machine*1PC ; Rotor: #21, #27, #28, #29 ;Temperature regulating device*1PC ; Furnace*1PC ; Sample containers*2pcs | |||
#high temperature tube series
