AELAB Hand-held Agricultural Weather Monitor TNHY series

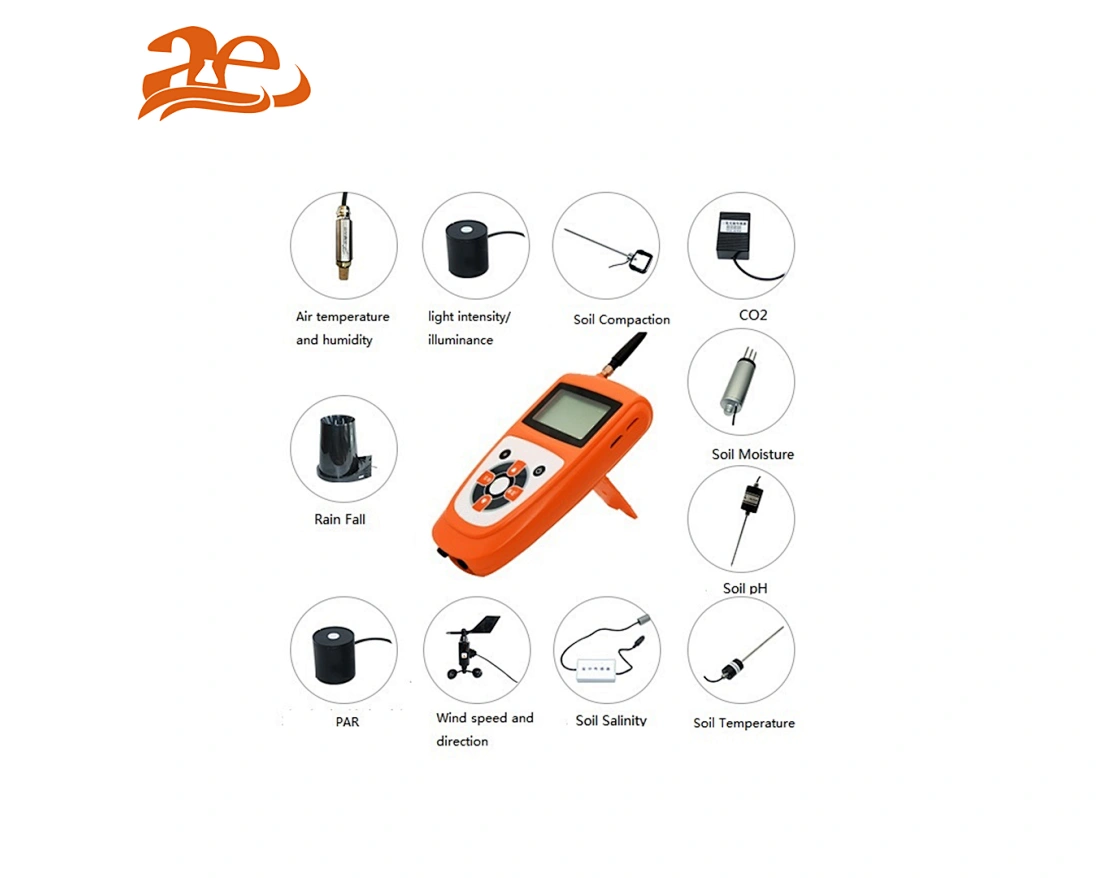

Handheld Agricultural Weather Monitor is able to acquire real-time data of air temperature, humidity, light intensity, PAR, wind direction &speed, Rainfall, CO2 concentration, soil temperature, soil moisture, soil pH, soil salinity etc., It is widely used in facilities agriculture, forestry, horticulture, animal husbandry and other fields.
TNHY series
1
Quantity:
Hand-held Agricultural Weather Monitor TNHY series
Brief introduction
Handheld Agricultural Weather Monitor is able to acquire real-time data of air temperature, humidity, light intensity, PAR, wind direction &speed, Rainfall, CO2 concentration, soil temperature, soil moisture, soil pH, soil salinity etc., It is widely used in facilities agriculture, forestry, horticulture, animal husbandry and other fields.
Characteristics
+Large LCD display, touch key, smart and portable, easy to operate.
+One-button switch, can record both manually and automatically.
+Both AC and DC are available, 8.4v 1500mAh Li-ion battery, with charging protection, Low voltage protection.
+With 32 channels, Different sensors can be combined freely.
+RS485 communication, the cable is up to 10Ometers.
+Parameters freely switched. Sampling interval time of each sensor can be set separately.
+PC software available.
+GPS is optional function.
+Two colors for optional: blue and orange.
AGROMETEOROLOGICAL INSTRUMENT
Handset technical parameters:
Record capacity: flash storage your latest 30,000 records, with 4G SD card
Record time interval: 5s-90 hr continuously adjustable.
Longitude: 0-180° latitude:0-90°
Sensor communication: RS485
Power: 8.4V Li-Ion battery
Technical parameters (OPTIONAL)
• Model difference
#
Brief introduction
Handheld Agricultural Weather Monitor is able to acquire real-time data of air temperature, humidity, light intensity, PAR, wind direction &speed, Rainfall, CO2 concentration, soil temperature, soil moisture, soil pH, soil salinity etc., It is widely used in facilities agriculture, forestry, horticulture, animal husbandry and other fields.
Characteristics
+Large LCD display, touch key, smart and portable, easy to operate.
+One-button switch, can record both manually and automatically.
+Both AC and DC are available, 8.4v 1500mAh Li-ion battery, with charging protection, Low voltage protection.
+With 32 channels, Different sensors can be combined freely.
+RS485 communication, the cable is up to 10Ometers.
+Parameters freely switched. Sampling interval time of each sensor can be set separately.
+PC software available.
+GPS is optional function.
+Two colors for optional: blue and orange.
AGROMETEOROLOGICAL INSTRUMENT
Handset technical parameters:
Record capacity: flash storage your latest 30,000 records, with 4G SD card
Record time interval: 5s-90 hr continuously adjustable.
Longitude: 0-180° latitude:0-90°
Sensor communication: RS485
Power: 8.4V Li-Ion battery
Technical parameters (OPTIONAL)
| Testing index | Parameter | Testing index | Parameter |
| Temperature | range:-40°C-80°C accuracy:±0.4°C resolution:0.1°C | Rainfall | range:0-4mm/min accuracy:±0.1mm resolution:0.1mm |
| Humidity | range:0-100%RH accuracy:±3%RH resolution: 0.1 %RH | Co2 | range:0-2000PPM Volatility:±(50PPM+Measurementsx3%) resolution：PPM |
| Dew Point | range:-40°C-120°C accuracy:±0.4°C resolution:0.1°C | Light intensity | range: 0-200000LUX resolution: 1LUX accuracy:±2% (0-20000lux) |
| Soil salinity | range: 0-19.99ms/cm accuracy: ±2% | Soil Temperature | range:-40°C-100°C accuracy:±0.3°C resolution:0.1 °C |
| Soil compaction | range:0-100kg accuracy:±0.5%o F.S | Soil Moisture | range:0-100% accuracy: ±3% resolution:0.1% |
| PAR | range:1-2,700pmolm-2s-1 accuracy:±1 pmolm- -2s-1 resolution: 1 |jmolm-2s-1 | Soil pH | pH range: 1-14pH pH accuracy: ±0.5 |
| Wind Direction | range:0-359° accuracy:±3° | Wind Speed | range:0-45m/s accu racy :±(0.3+0.03v)m/s |
| Air pressure | range: 300.0hPa~11 OO.OhPa Accuracy: ±1 hPa | Total radiation | range: 0-2000W/m2 Accuracy: 7-14uv/W«m2 |
| Water vaporization | range: 0~100mm Accuracy: 0.1mm | UV radiation | range: 0~6mW/cm2 Accuracy: ±5% (0~3mW/cm2) |
• Model difference
| TNHY-4 | temperature, humidity, Illuminance, CO2 concentration |
| TNHY-5 | temperature, humidity, Illuminance, CO2 concentration, PAR |
| TNHY-6 | soil temperature, soil moisture, temperature, humidity, light intensity, CO2 concentration |
| TNHY-7 | soil temperature, soil moisture, temperature, humidity, light intensity, CO2 concentration, PAR |
| TNHY-8 | soil temperature, soil moisture, soil salinity, temperature, humidity, light intensity, CO2 concentration, PAR |
| TNHY-9 | soil temperature, soil moisture, soil salinity temperature, humidity, light intensity, CO2 concentration, PAR, soil pH |
| TNHY-10 | soil temperature, soil moisture, temperature, humidity, light intensity, CO2 concentration, PAR, wind speed and wind direction, rain gauge |
| TNHY-11 | soil temperature, soil moisture, soil salinity, temperature, humidity, light intensity, CO2 concentration, PAR, wind speed and wind direction, rain gauge, soil pH |
| TNHY-12 | soil temperature, soil moisture, soil salinity temperature, humidity, light intensity, CO2 concentration, PAR, wind speed and wind direction, rain gauge, soil pH, soil compaction |
| TNHY-13 | soil temperature, soil moisture, soil salinity temperature, humidity, light intensity, CO2 concentration, PAR, wind speed and wind direction, rain gauge, soil pH, soil compaction, global solar radiation |
