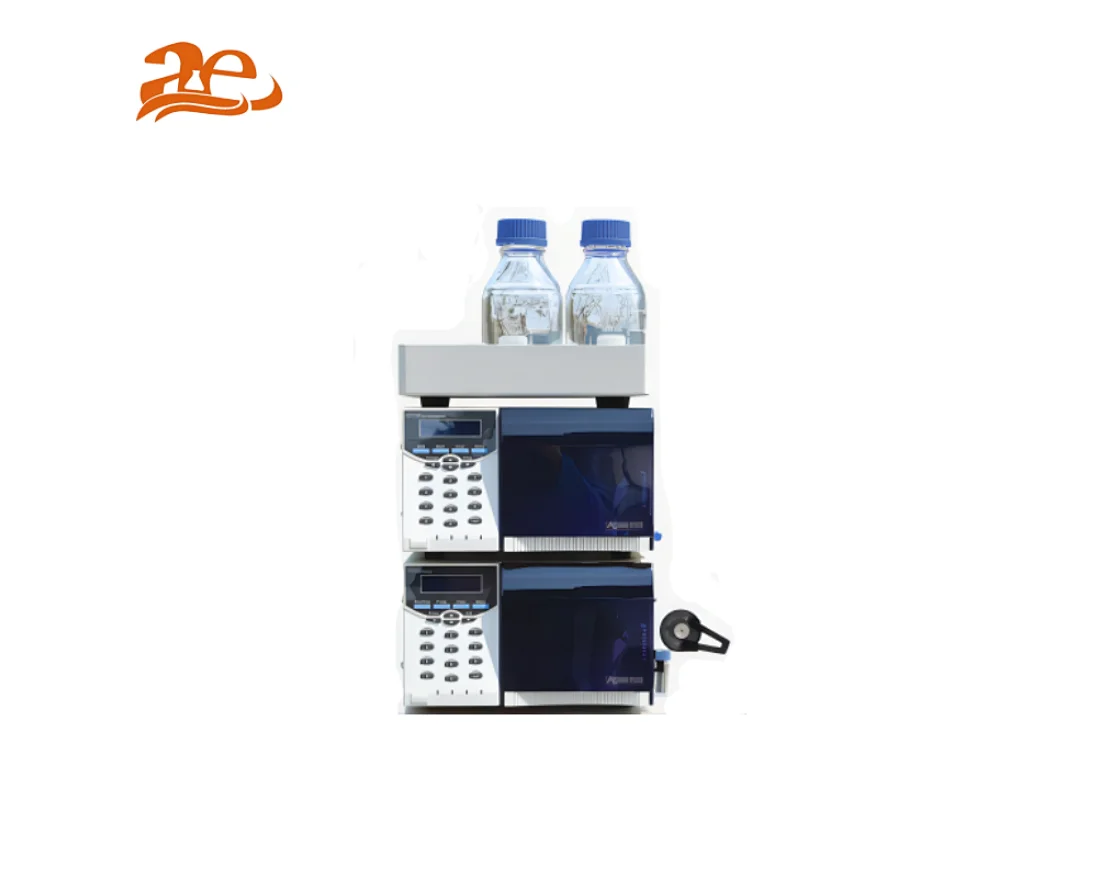

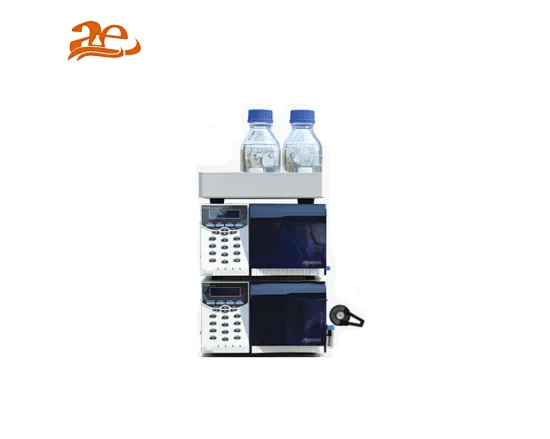

AELAB Agress 1100 HPLC
Engineered using the core competencies of our experience, Agress1100 provides superiordata quality, excellent robustness and long-term performance.
AE-Agress1100
1
Quantity:
AELAB Agress 1100 HPLC
Engineered using the core competencies of our experience, Agress1100 provides superiordata quality, excellent robustness and long-term performance.
Key Technologies
P1100 High Pressure Constant Flow Pump
Specifications
Characteristics
Characteristics
Engineered using the core competencies of our experience, Agress1100 provides superiordata quality, excellent robustness and long-term performance.
Key Technologies
+Connections University
+Methods Validation Software and System
+Performance Certified Training and Education
P1100 High Pressure Constant Flow Pump
Specifications
| Flow rate | 0.001-10.000ml/min(Step:0.001 ml/min) |
| Accuracy | ≤±0.3% |
| Precision | ≤±0.1% RSD |
| Max Pressure | 42 Mpa(6000 psi) |
| Dimension/Weight | 420 mm x 260mm x 160mm/12kg |
| Power | AC 220v,50Hz |
Characteristics
+Function keys for setting Max. pressure and switching A/B pump
+Decreased fluid pulsation
+Improved stepper motor operation stability by radiating way
D1100 UV/VIS DetectorSpecifications
| Wavelength | 190-700nm |
| Noise | ≤±1.0 x 10-5 AU |
| Drift | ≤±2.0 x 10-4 AU/h |
| Dimension/Weight | 420mmx260mmx160mm/12kg |
| Power | AC 220V(±10%),50Hz/100W |
Characteristics
+Function keys for wavelength program and D2 Lamp energy
+D2 lamp alarming function
+Casting monochromator framework for improved light path accuracy and sealing efficiency
O1100 Columns Oven
Specifications
W1100 Workstation
W1100 workstation is the classical chromatography data-processing system, with a completely fresh external-connect design hardware (USB port) and software based on Win OS, with up to date software design technology(0-O) and the experiences
collection of many experts & clients, all of the above make it to be more functional, and easily-operated workstation. W1100 is easily operated as MS OFFICE software, such as analysis of complex samples with visual and graphical button line. Call out chromatogram with clipboard under the software of WORD and create a report of pictures & words. W1100 can accommodate the Agress HPLC system, and any types of chromatography instruments. It is the ideal substitute of integrator, data processor and traditional workstation, so it will be your right hand in your laboratory analysis.
Characteristics
Specifications
| Temperature | R.t.+5℃~99℃ |
| Setting precision | 0.1℃ |
| Control Accuracy | ±0.5℃ |
| Dimension/Weight | 120mmx65mmx500mm/8.5kg |
| Power | AC 220V(±10%),50Hz |
W1100 Workstation
W1100 workstation is the classical chromatography data-processing system, with a completely fresh external-connect design hardware (USB port) and software based on Win OS, with up to date software design technology(0-O) and the experiences
collection of many experts & clients, all of the above make it to be more functional, and easily-operated workstation. W1100 is easily operated as MS OFFICE software, such as analysis of complex samples with visual and graphical button line. Call out chromatogram with clipboard under the software of WORD and create a report of pictures & words. W1100 can accommodate the Agress HPLC system, and any types of chromatography instruments. It is the ideal substitute of integrator, data processor and traditional workstation, so it will be your right hand in your laboratory analysis.
Characteristics
+Simple for use
+Flexibility in data display
+Real-time and fast determination of peak area
+Easy review of entire system
+Real-time operating status and indicator feedback of instrument units
+Easy comparison of multiple chromatograms
+Customizable reports
+Supporting tools for GLP/ 21 CFR Part 11- -Audit trail of whole system and chromatograms
+User accounts-selectable rights, unique user profiles, allow to create a unique password to protect profiles of eash user.
