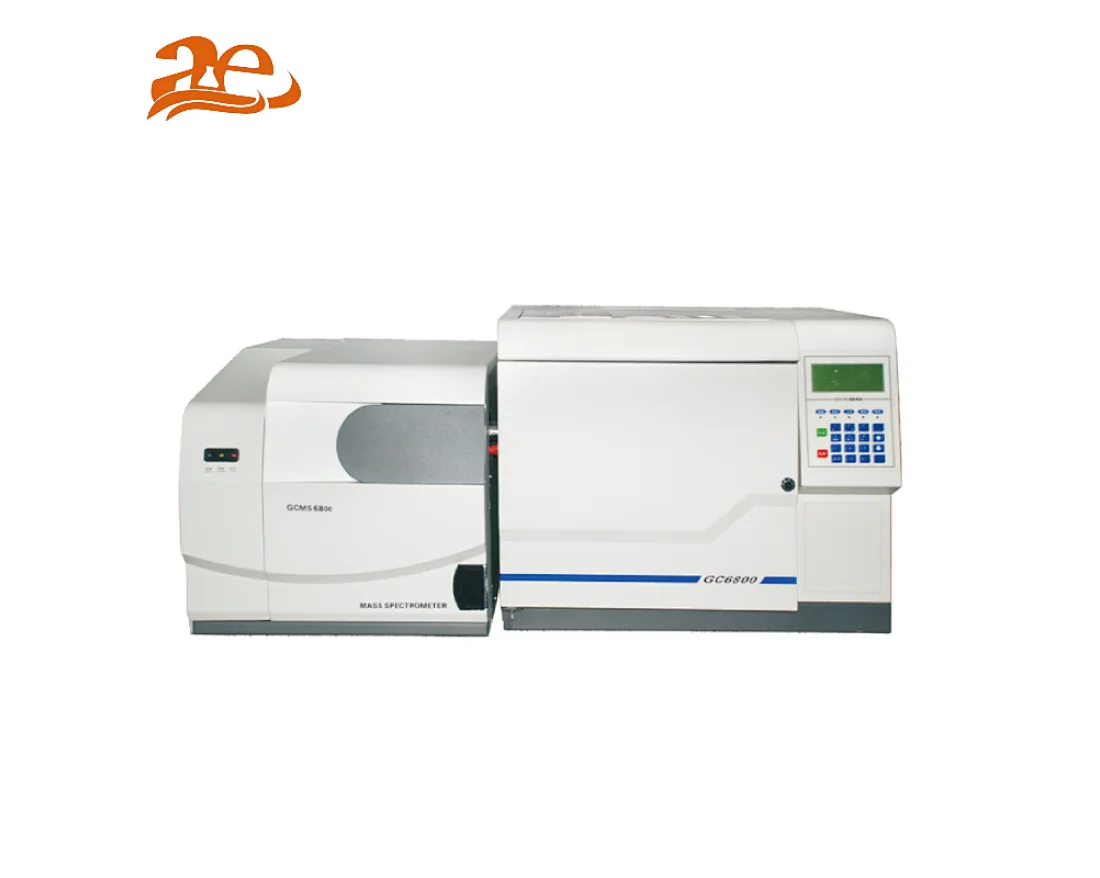

AELAB GC-MS 6800 Gas Chromatograph-Mass Spectrometer
+High performance, high reliability
+Low cost for customers of all types
+Holding multiple patents
GC-MS 6800
Quantity:
GC-MS 6800 Gas Chromatograph-Mass Spectrometer
+High performance, high reliability
+Low cost for customers of all types
+Holding multiple patents

Gas Chromatograph---Mass Spectrometer

GC Specifications
Inlet temperatureMax. 450°C
Pressure range0^100psi,±0. 002psi
Pressure control modeElectronic pressure control (EPC), support CV and CC
Split modeSplit/splitless, max. split ratio: 1000:1
Column oven working temperatureRoom temperature+4°C~450°C
Heating rateUp to 120°C/min
Temperature programming7 stages/ 8 platforms
Auto SamplerOptional
MS Specifications
El source ionization energy5W250eV (Adjustable)
Mass range1.5~1000amu
ResolutionUnit resolution (full width at half maximum)
Ion source temperature1003500
Filament emission current0-350uA
GC-MS Interface temperatureMax. 450°C
Stability±0.10amu/48 hrs
SensitivityFull scan, 1 pg OFN at m/z 272 with S/N 30:1 (RMS)
Scan rateUp to 1000amu/s
VacuumTurbo molecular pump(67L/s)
DetectorHigh energy dynode electron multiplier

GC-MS 6800
Gas Chromatograph Mass Spectrometer

GC-MS 6800 is a cost-effective gas chromatograph mass spectrometer. The products hold several patented technologies, and are widely used in industrial inspection, food hygiene, environmental protection, etc.

Current Customers:
+Industrial inspection: textile, electricity & electronics, plastic cement, cosmetics
+Food hygiene: pesticide residues, flavors and fragrances
+Environmental protection: air, water, soil, solid waste
+Pharmaceutical: pharmaceutical industries, drug inspection
+Petrochemical: oil refineries, chemical plants
+Public security organ: explosives, forensic evidence

Highlights:
Hardware
+Electronic pressure/flow control system (EPC/EFC) for self-developed GC 6800 system
+Patented El filament set provides highly efficient electron emission, a maximum of 350u A
+Quality mass analyzer with pre-filter reduces quadrupole pollution
+High-energy dynode electron multiplier ensures good sensitivity
+Vacuum system with quality mechanical and turbo molecular pumps guarantees stability and reliability
+Full scale gauges monitor vacuum states in real time
+Self protection system guarantees safety of operators and core parts under abnormal conditions
+RF power supply digital compensation technology ensures better sensitivity and resolution in full mass range

Software
+The software **ChemAnalyst"controls auto sampler (AS), gas chromatograph (GC) and mass spectrometer (MS); data are acquired and transferred by high-speed network card
+Full Scan and selective Ion Monitoring (SIM) modes are available
+The system supports manual and automatic tuning, display of total ion current (TIC) and mass chromatogram (MC)
+It is the only legal distributor authorized by NIST/EPA/NIH in China mainland, which guarantees the latest version and free online up grade of NIST (current version NIST 2011)
+The data processing section searches target compounds in NIST 2011 based on mass spectra of samples,displays search results which include retention times, structural formula and standard mass spectra, and compares the abundances of standard and real target ions. Users can make accurate qualitative and quantitative analyses

Features:
Superior quality: it uses high-end core parts, which ensures GC-MS 6800 high quality
Meeting high demands: Itprovides necessity parts, and meets multiple requirements from clients in different fields.
User-friendly design: it facilitates easy operation and convenient maintenance
High-efficiency ionization source: modularization design, wepatented ion source, having high ionization efficiency, and enhancing sensitivity
ChemAnalyst software: convenient operation, data acquisition and processing
Highly cost-effective: offering more benefits while meeting all application demands
Scientific solutions: we offer customers perfectly customized solutions
Consumables with favorable price: most consumables and parts are self-developed, which save a lot of maintenance cost, while providing high performance
Satisfactory post-sale service: we makes a quick response to client's demands, with professional technicians offering 24-hour services

A Comparison of AELABGC-MS and Competitors' GC-MS:
AELAB GC-MSCompetitors' GCMS
Highly cost-effectiveExpensive
Favorable price, low maintenance costImported consumables, high maintenance cost
Rapid service response, professional technicians offering 24-hour serviceSlow service response, normally more than a week

Application:
Brominated flame-retardant (BFR), volatile organic compounds (VOCs), polycyclic aromatic hydrocarbons (RAHs), phthalate, etc.

Laws and Regulations:
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and restriction of Chemicals, which includes all substances and goods imported into EU except those are clearly exempted.
RoHS directive refers to the rules on the restriction of the use of certain hazardous substances in electrical and electronic equipment; it specifies the maximal limitation of six hazardous substances explicitly, with product range almost covering all electronics, electrical appliance, medical products, communication products, toy, security products, etc.
