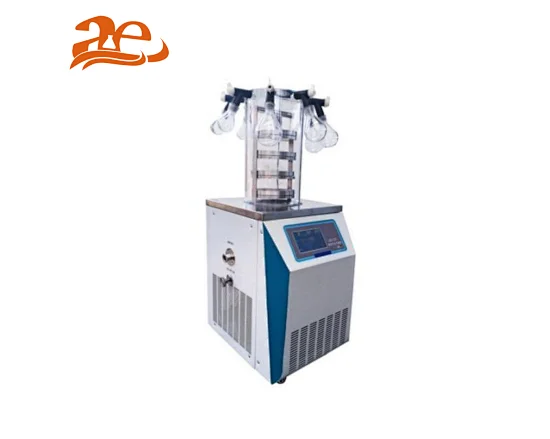

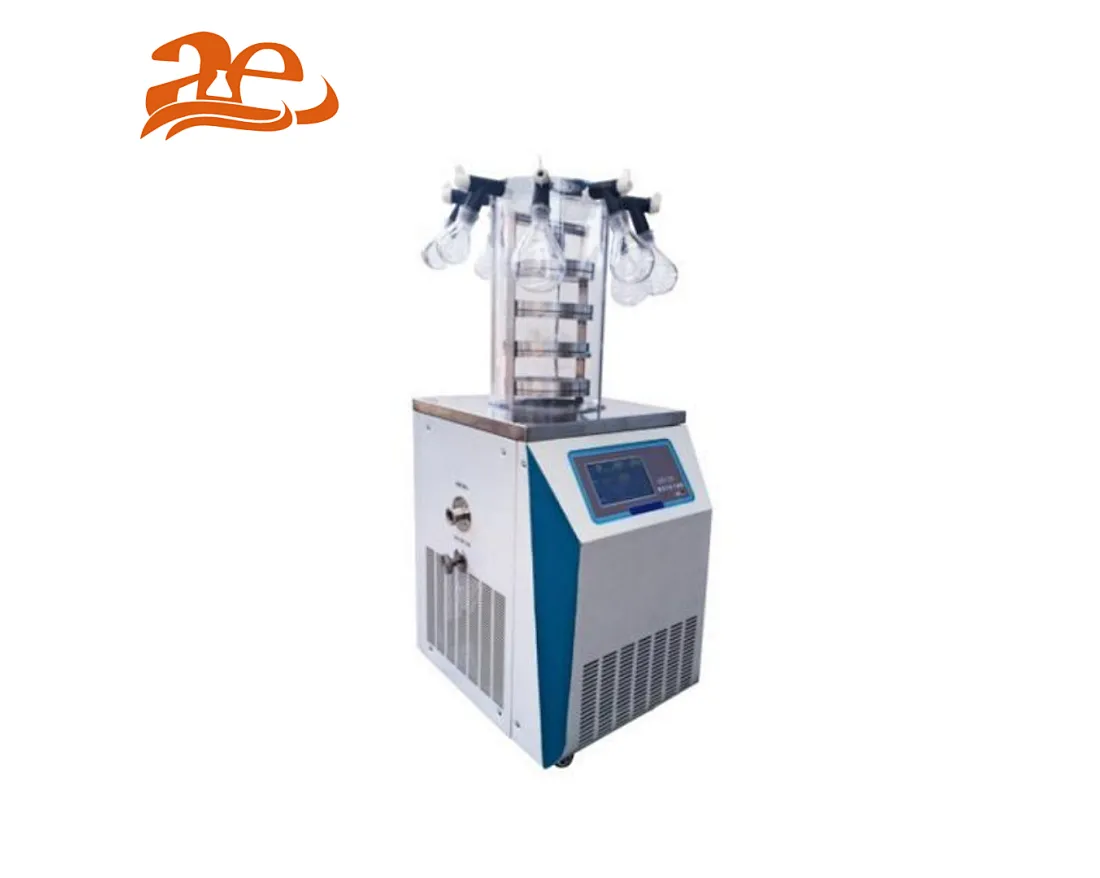

AELAB Freeze dryer
AELAB Freeze dryer

AELAB Freeze dryer

Model NO.
AE-LGJ-10 AE-LGJ-12/12S AE-LGJ-18/18S AE-LGJ-30S
+inch embedded integrated color touch-sereen,the operating system is a set of advanced Cortex-A8 processor, 128 MB capacity of high performance control system.
+The machine control system can save 40 freeze-drying scheme, each scheme can be set up 40 segments of temperature parameter values. Shelf has heating function.
+Operating system has manual operation and automatic operation, two workingmodes, to improve the selectivity of freeze-drying process.
+Have automatic alarm and protection function,equipment failure is easy to Judge.
+Have password protection function, to ensure the safe and reliable operation.
+Cascade refrigeration is optional, applied for -80℃ machine.
+Optional remote monitoring and remote operation functions, convenient for user operation in different conditions.
Quantity:
AELAB Freeze dryer AE-LGJ-10 AE-LGJ-12/12S AE-LGJ-18/18S AE-LGJ-30S
LGJ-12S/18S/30S heating in-situ freeze dryer series are small vertical freeze dryer machine.These models have shelf heating and programmable function.
They are suitable for lab use or small-scale production,and they can meet requirements for most laboratories.


Features:
+inch embedded integrated color touch-sereen,the operating system is a set of advanced Cortex-A8 processor, 128 MB capacity of high performance control system.
+The machine control system can save 40 freeze-drying scheme, each scheme can be set up 40 segments of temperature parameter values. Shelf has heating function.
+Operating system has manual operation and automatic operation, two workingmodes, to improve the selectivity of freeze-drying process.
+Have automatic alarm and protection function,equipment failure is easy to Judge.
+Have password protection function, to ensure the safe and reliable operation.
+Cascade refrigeration is optional, applied for -80℃ machine.
+Optional remote monitoring and remote operation functions, convenient for user operation in different conditions.

Technical Specifications:
ModelAE-LGJ-10AE-LGJ-12/12SAE-LGJ-18/18SAE-LGJ-30S
SpecificationUnitStandardTop-pressStandardTop-pressStandardTop-pressStandardTop-press
Freeze-drying area0.120.080.120.080.180.270.090.430.3
Cold trap temperature-56℃(no-loading), option-80℃(no-loading)-56℃(no-loading), option-80℃(no-loading)
Vacuum degreePa1010
Water-capture capabilitykg/24h3 43 468
Material traymm200mm,4 layers(6 layers as option)180mm,3 layers200mm,4 layers(6 layers as option)180mm,3 layers240mm,4 layers240mm,4 layers200mm,3 layers280mm,7 layers280mm,5 layers
Powerw97097014002200
Weightkg4162105193
Dimensionmm615×450×370+(430mm as drum height)580×500×720+(430mm as drum height)630×580×970+(460mm as drum height)1230×630×2190+(460mm as drum height)
Erial(Thickness:10mm)L1.2L(10mm)8L(10mm)1.2L(10mm)8L(10mm)1.8L(10mm)2.7L(10mm)0.9L(10mm)4.3L(10mm)3L(10mm)
Exiling bottlePieceΦ12mm: 920Φ12mm: 560Φ12mm: 920Φ12mm: 560Φ12mm: 1320Φ12mm: 1980Φ12mm: 990Φ12mm: 3500Φ12mm: 2470
PieceΦ16mm: 480Φ16mm: 285Φ16mm: 480Φ16mm: 285Φ16mm:740Φ16mm: 1110Φ16mm: 555Φ16mm: 1980Φ16mm: 1380
PieceΦ22mm: 260Φ22mm: 165Φ22mm: 260Φ22mm: 165Φ22mm: 360Φ22mm: 540Φ22mm: 270Φ22mm: 960Φ22mm: 675
  • AELAB Freezer Dryer AE-LGJ Series.pdf:Downloads
