+Air Cooling
+Stainless Steel 304 Exterior
+Adjustable Feet
+Slide Away Access Door
+World Famous Brand Compressor
+Fully Automatic Controller
+Improved Design For Higher Reliability

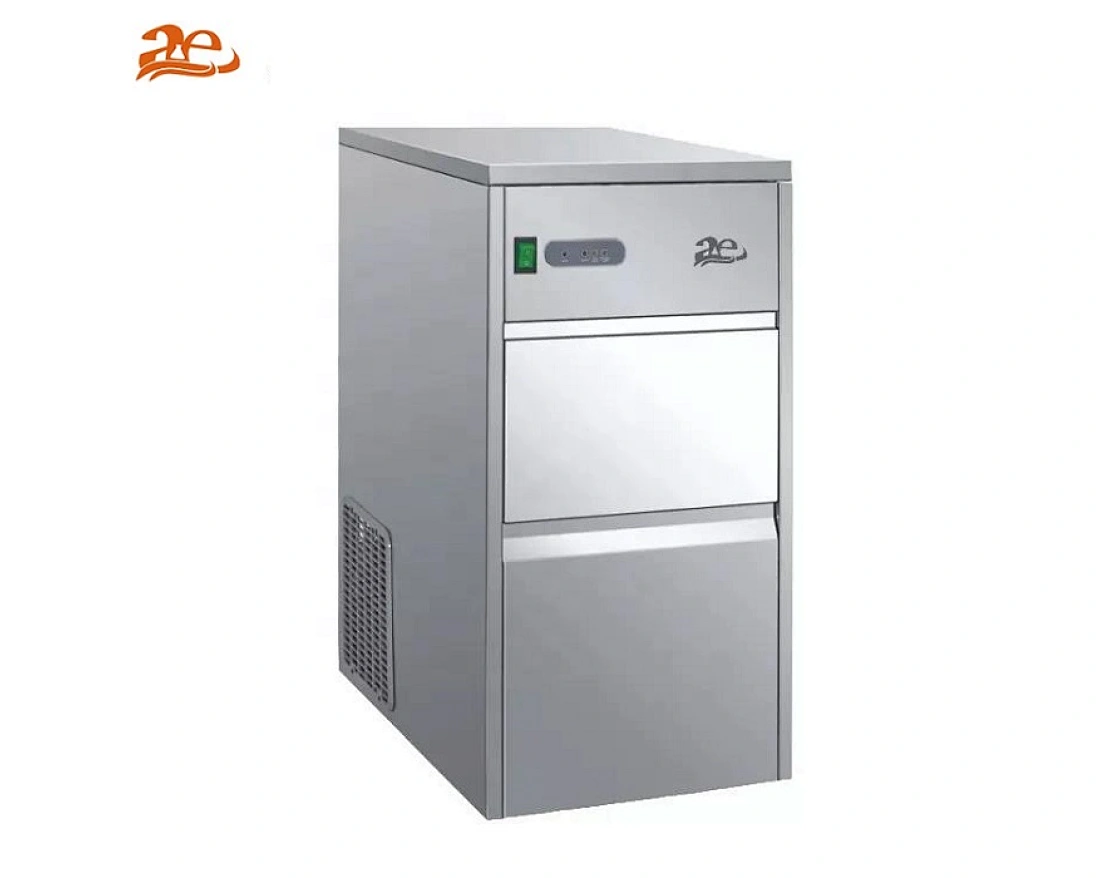

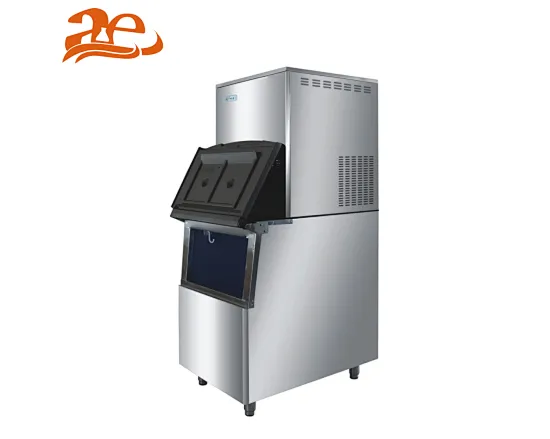

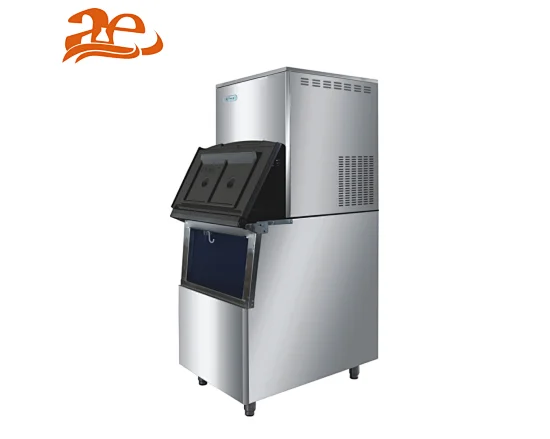

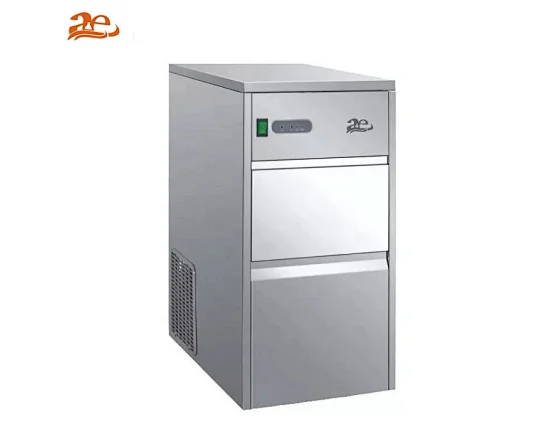

AELAB Flake Ice Machine
Features:
+Flake Ice
+Air Cooling
+Stainless Steel 304 Exterior
+Adjustable Feet
+Slide Away Access Door
+World Famous Brand Compressor
+Fully Automatic Controller
+Improved Design For Higher Reliability
Technical Specifications:
Model | AE-IMS20 | AE-IMS30 | AE-IMS40 | AE-IMS50 | AE-IMS60 | AE-IMS70 | AE-IMS85 | |
Ice Making Capacity:Kg/24h | 20Kg/24h | 30Kg/24h | 40Kg/24h | 50Kg/24h | 60Kg/24h | 70Kg/24h | 85Kg/24h | |
Ice Storage | 10Kg | 10Kg | 15Kg | 15Kg | 25Kg | 25Kg | 25Kg | |
Voltage | 220V/50Hz or 110V/60Hz | 220V/50Hz or 110V/60Hz | 220V/50Hz or 110V/60Hz | |||||
Power | 280W | 300W | 360W | 380W | 420W | 460W | 480W | |
Cooling type | Air Cooling | Air Cooling | Air Cooling | |||||
Refrigerant | R134a | R134a | R134a | |||||
Water Supply | Tap Water | Tap Water | Tap Water | |||||
Net Weight: Kg/Lb | 28/61.7 | 28/61.7 | 36/79.4 | 36/79.4 | 42/92.6 | 42/92.6 | 45/99.2 | |
Gross Weight: Kg/Lb | 31/68.3 | 31/68.3 | 39/86.0 | 39/86.0 | 46/101.4 | 46/101.4 | 49/108.0 | |
Product Dimension: (mm) | 330 * 470 * 605 | 400 * 543 * 720 | 400 * 510 * 825 | |||||
W*D*H (inch) | 13.0 * 18.5 * 23.8 | 15.7 * 21.4 * 28.3 | 15.7 * 20.1 * 32.5 | |||||
Packaging Dimension: (mm) | 405 * 555 * 665 | 470 * 615 * 780 | 470 * 590 * 875 | |||||
W*D*H (inch) | 15.9 * 21.9 * 26.2 | 8.5*24.2*30.7 | 18.5 * 23.2 * 34.4 | |||||
20’GP | 168 | 135 | 98 | |||||
Stuffing Qty 40’GP | 348 | 285 | 200 | |||||
40’HQ | 464 | 285 | 300 | |||||
Model | AE-IMS100 | AE-IMS120 | AE-IMS150 | AE-IMS200 | AE-IMS250 | AE-IMS300 | AE-IMS500 |
Ice Making Capacity:Kg/24h | 100Kg/24h | 120Kg/24h | 150Kg/24h | 200Kg/24h | 250Kg/24h | 300Kg/24h | 500Kg/24h |
Ice Storage | 40Kg | 40Kg | 40Kg | 60Kg | 60Kg | 150Kg | 200Kg |
Voltage | 220V/50Hz or 110V/60Hz | 220V/50Hz or 110V/60Hz | 220V/50Hz or 110V/60Hz | ||||
Power | 520W | 550W | 680W | 1040W | 1360W | 2100W | |
Cooling type | Air Cooling | Air Cooling | Air Cooling | ||||
Refrigerant | R134a | R134a | R134a | ||||
Water Supply | Tap Water | Tap Water | Tap Water | ||||
Net Weight: Kg/Lb | 58/127.9 | 58/127.9 | 60/132.3 | 80/176.4 | 95/209.4 | 125/275.6 | |
Gross Weight: Kg/Lb | 63/138.9 | 63/138.9 | 65/143.3 | 85/187.4 | 105/231.5 | 135/297.6 | |
Product Dimension: (mm) | 500 * 611 * 940 | 680 * 611 * 1100 | 560 * 800 * 1700 | 760 * 810 * 1870 | |||
W*D*H (inch) | 19.7 * 24.1 * 37.0 | 26.8 * 24.1 * 43.3 | 22.0 * 31.5 * 66.9 | 29.9 * 31.9 * 73.6 | |||
Packaging Dimension: (mm) | 570 * 685 * 1000 | 750 * 675 * 1150 | 650 * 850 * 1750 | 830 * 850 * 1920 | |||
W*D*H (inch) | 22.4 * 27.0 * 39.4 | 29.5 * 26.6 * 45.3 | 25.6 * 33.5 * 68.9 | 32.7 * 33.5 * 75.6 | |||
20’GP | 64 | 48 | 27 | 19 | |||
Stuffing Qty 40’GP | 136 | 102 | 60 | 38 | |||
40’HQ | 136 | 102 | 69 | 42 | |||
