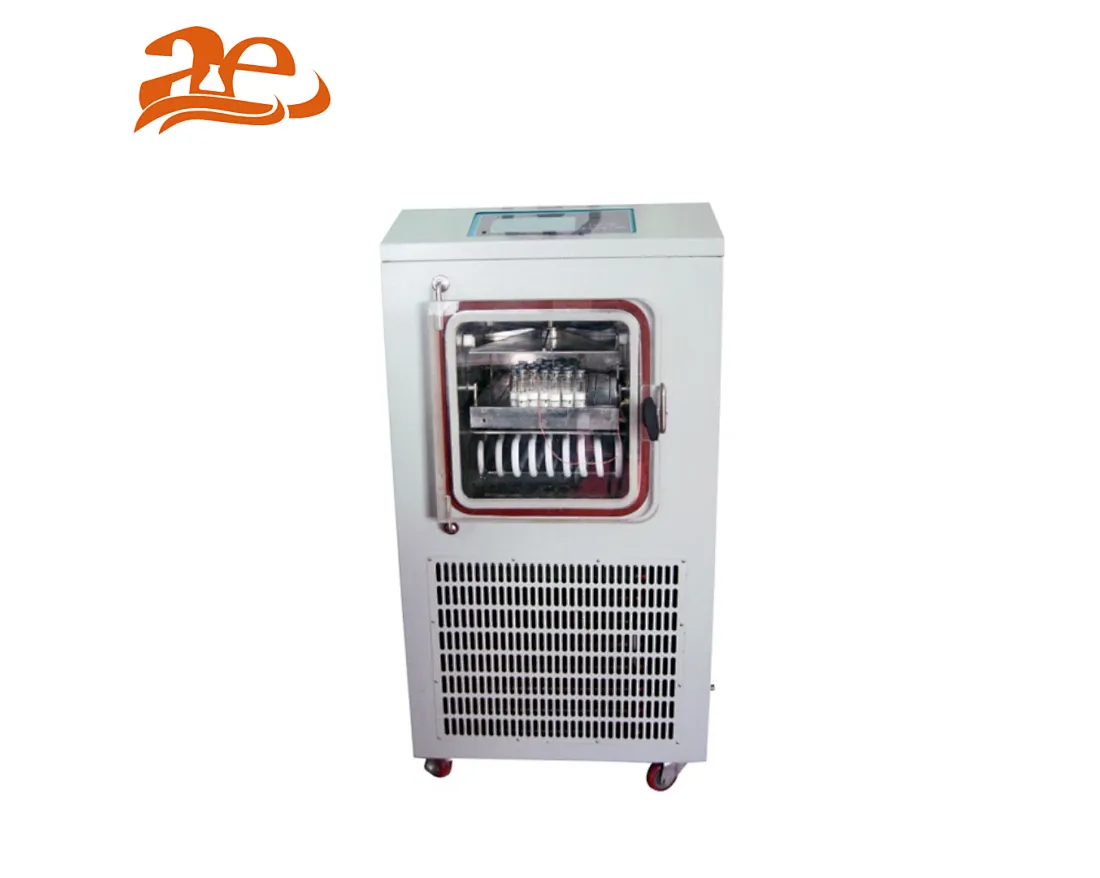

AELAB Electric-heating freeze dryer
LG1-10FD/30FD/50FD series of freeze dryers with electric heating function (patent machine).Products can be freeze dried in situ. It changes the complex operation and prevent sample pollution, and make drying automation. These models has shelf heating and programmable functions. They can records freeze drying curves, data can be output by U-disk. User can clearly view the freeze drying process.
AE-LGJ-10FD AE-LGJ-10FD AE-LGJ-30FD AE-LGJ-50FD
1
Quantity:
Electric-heating freeze dryer
LG1-10FD/30FD/50FD series of freeze dryers with electric heating function (patent machine).Products can be freeze dried in situ. It changes the complex operation and prevent sample pollution, and make drying automation. These models has shelf heating and programmable functions. They can records freeze drying curves, data can be output by U-disk. User can clearly view the freeze drying process.
Features:
+7 inch embedded integrated color touch-screen. PLC controlling Display drying curve.
+The machine control system can save 40 freeze-drying scheme, each scheme can be set up 40 segments of temperature parameter values.
+Shelf has refrigeration and heating function Products pre-freezing and drying process both finished in drying chamber No need of low temperature freezer, no pollution.At the same time provide guarantee conditions for automated production.
+Control system automatically records the data and generate the freeze-drying curves. With USB communication interface, experimental data can be output by a USB flash disk.
+Operating system has manual operation and automatic operation, two working modes, to improve the selectivity of freeze-drying process.
+Dying chamber door use colorless transparent organic glass, use can clearly observe the sample during the process freeze-drying.
+Unique design of vacuum air channel, condenser has better and uniform water capture capacity.
+Have password protection function,to ensure the safe and reliable operation.
+Optional charging valve, filling dry inert gas.
+Optional manifold ports for flask connection,round bottom flask and wide-neck flask.
+Optional eutectic point test functions, convenient for getting freeze-drying process of the sample.
+Optional remote monitoring and remote operation functions. convenient for use operation in different conditions rent conditions.
+Vacuum regulation device is optional.
Technical Specifications:
#lyophilizer vacuum freeze dryer freeze dryer
#freeze dryer for sale
#syklon freeze dryer
LG1-10FD/30FD/50FD series of freeze dryers with electric heating function (patent machine).Products can be freeze dried in situ. It changes the complex operation and prevent sample pollution, and make drying automation. These models has shelf heating and programmable functions. They can records freeze drying curves, data can be output by U-disk. User can clearly view the freeze drying process.
Features:
+7 inch embedded integrated color touch-screen. PLC controlling Display drying curve.
+The machine control system can save 40 freeze-drying scheme, each scheme can be set up 40 segments of temperature parameter values.
+Shelf has refrigeration and heating function Products pre-freezing and drying process both finished in drying chamber No need of low temperature freezer, no pollution.At the same time provide guarantee conditions for automated production.
+Control system automatically records the data and generate the freeze-drying curves. With USB communication interface, experimental data can be output by a USB flash disk.
+Operating system has manual operation and automatic operation, two working modes, to improve the selectivity of freeze-drying process.
+Dying chamber door use colorless transparent organic glass, use can clearly observe the sample during the process freeze-drying.
+Unique design of vacuum air channel, condenser has better and uniform water capture capacity.
+Have password protection function,to ensure the safe and reliable operation.
+Optional charging valve, filling dry inert gas.
+Optional manifold ports for flask connection,round bottom flask and wide-neck flask.
+Optional eutectic point test functions, convenient for getting freeze-drying process of the sample.
+Optional remote monitoring and remote operation functions. convenient for use operation in different conditions rent conditions.
+Vacuum regulation device is optional.
Technical Specifications:
| Model | AE-LGJ-10FD Standard | AE-LGJ-10FD Top-press | AE-LGJ-30FD Standard | AE-LGJ-50FD Standard |
| Freeze-drying area | 0.2㎡ | 0.1㎡ | 0.4㎡ | 0.6㎡ |
| Condenser temperature | ＜-56℃(no-loading), option-80℃(no-loading) | |||
| Vacuum degree | ＜10Pa | |||
| Water capture capacity | 3-5Kg/24h | ＞6Kg/24h | ＞10Kg/24h | |
| Partition board size | 400×270mm 2layers | 400×270mm 1layers | 300×340mm 4layers | 300×340mm 6layers |
| Power | 2000W | 3000W | 5000W | |
| Weight | 260kg | 400Kg | 400Kg | |
| Dimension | 750×800×1390 | 700×850×1230 | 700×850×1400 | |
| Bulk capacity Thickness:10mm | 2L(Thickness:10mm) | 1L(Thickness:10mm) | 4L(Thickness:10mm) | 6L(Thickness:10mm) |
| Vial loading number(pcs) | Φ12mm:1554pieces | Φ12mm:777pieces | Φ12mm:2916pieces | Φ12mm:2916pieces |
| Φ16mm:868pieces | Φ16mm:434pieces | Φ16mm:1600pieces | Φ16mm:1600pieces | |
| Φ22mm:440pieces | Φ22mm:220pieces | Φ22mm:872pieces | Φ22mm:872pieces | |
