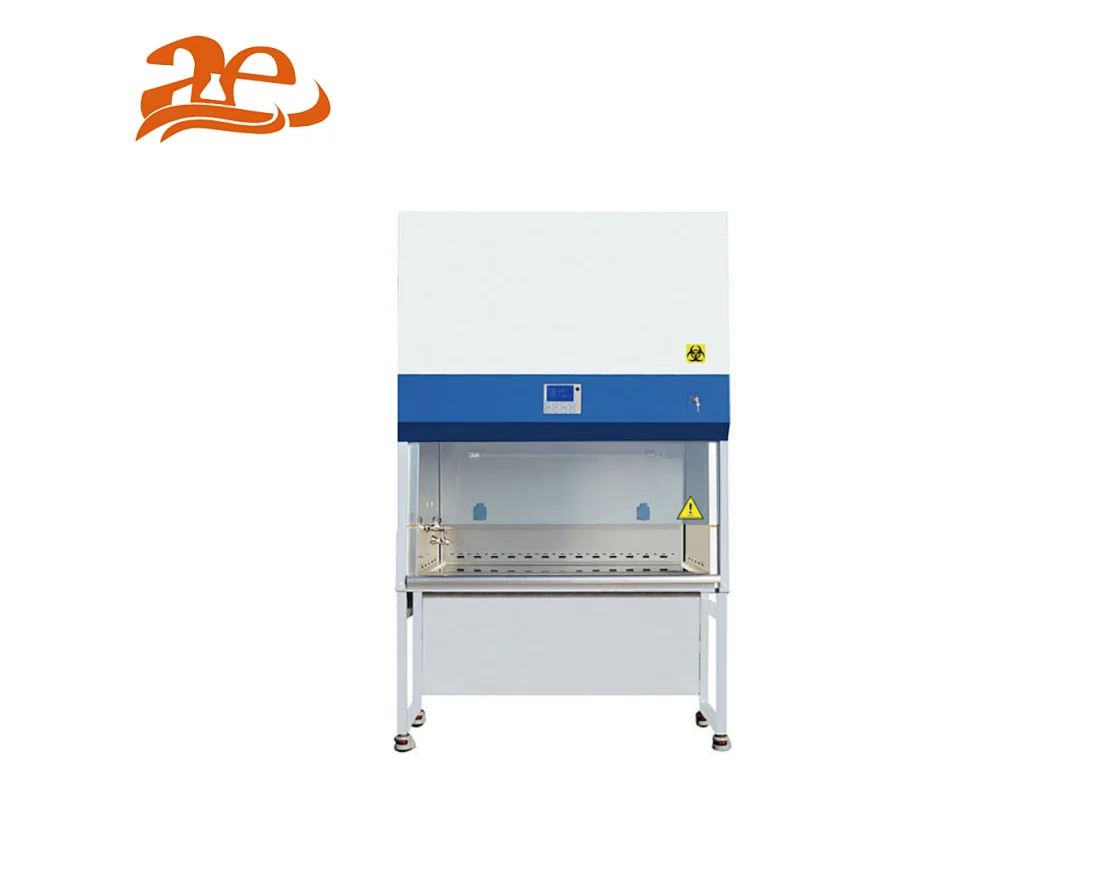

AELAB EN Certified Biological Safety Cabinet
+Large LCD display, all information displayed.
+Automatic air speed adjustable with filter block.
+With memory function in case of power-failure.
+Side & back wall is made up of single piece stainless steel.
+Automatic air speed adjustable with filter block.
+With memory function in case of power-failure.
+Side & back wall is made up of single piece stainless steel.
AE-BSC-3FA2 (3") AE-BSC-4FA2(4")
1
Quantity:
EN Certified Biological Safety Cabinet
Features:
+Large LCD display, all information displayed.
+Automatic air speed adjustable with filter block.
+With memory function in case of power-failure.
+Side & back wall is made up of single piece stainless steel.
+Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
+Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.
Technical Specifications:
#biological safety cabinet
#biological safety cabinet class
#esco biological safety cabinet
#biological safety cabinet classes
Features:
+Large LCD display, all information displayed.
+Automatic air speed adjustable with filter block.
+With memory function in case of power-failure.
+Side & back wall is made up of single piece stainless steel.
+Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
+Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.
Technical Specifications:
| Model | AE-BSC-3FA2 (3") | AE-BSC-4FA2(4") | |
| External Size(W*D*H) | 1087*775*2265mm | 1383*775*2295mm | |
| Internal Size(W*D*H) | 910*600*660mm | 1210*600*660mm | |
| Work Surface Height | 750mm | ||
| Max Opening | 520mm (2V) | 550mm(22") | |
| Tested Opening | Safety height 200mm (8") | ||
| Airflow Volume | Inflow Downflow Exhaust | 348m3/h (205cfm) | 462m3/h (272cfm) |
| 65%: 649m3/h (382cfm) | 65%: 863m3/h (507cfm) | ||
| 35%: 348m3/h (205cfm) | 35%: 462m3/h (272cfm) | ||
| Front Window | Manual. Two-layer laminated toughened glass 25mm. Anti UV | ||
| HEPA Filter | Two, 99.999% efficiency at 0.3pm, filter life indicator | ||
| Filter Guard Type | Aluminum alloy frame | ||
| Noise | NSF 49^61 dB/EN 12469^58dB | ||
| Illumination | ≥1000LUX | ||
| Display | LCD Display | ||
| Waterproof Socket | 2, Total consumption:≤500W | ||
| Tap | Water tap*1, Gas tap*1 | ||
| Ground Resistance | ≤0.10Q | ||
| Power Supply | AC230V, 50Hz | ||
| Consumption | ≤500W | ≤600W | |
| Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height | ||
| DC Motor | One ECM motor, 230V acceptable, Speed adjustable, high efficiency and low power consumption | ||
| Material | Working area: 304 stainless steel | ||
| Frame and decorative plate: cold-rolled steel with anti-bacteria power coating | |||
| UV Lamp | 18W | 30W | |
| Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination | |||
| Fluorescent lamp | 21W*2 | 28W*2 | |
| Standard Accessory | Fluorescent lamp, UV lamp*2, Base stand. SS water & gas taps, Drain valve, Waterproof | ||
| sockets, Stainless steel LV. bar with 10 hooks | |||
| Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer. Remote control, | ||
| Electric height adjustable base stand, Motorized front window | |||
| Package Size (W*D*H) | 1220*1000*1840mm | 1540*1080*1900mm | |
| Gross Weight | 270kg | 334kg | |
