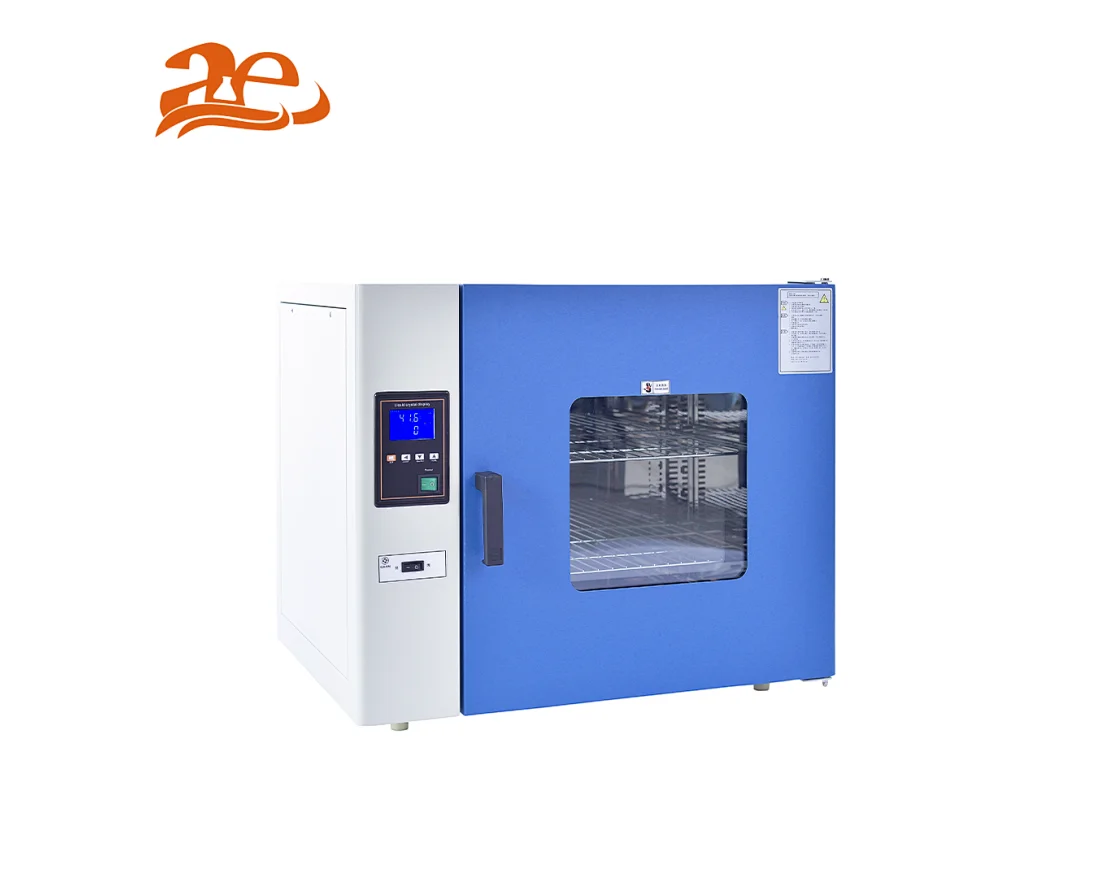

AELAB Drying and Cultivating Oven AE-PH Series
AE-PH series drying/cultivation dual-use box, with high quality, reliable, safe characteristics, using fan air forced convection of the new type of drying/cultivation dual-use box, colleges and universities, scientific research and production have a direct help, and provide a reliable guarantee.
AE-PH030A AE-PH050A AE-PH070A AE-PH140A AE-PH240A
1
Quantity:
Drying and Cultivating Oven
AE-PH series drying/cultivation dual-use box, with high quality, reliable, safe characteristics, using fan air forced convection of the new type of drying/cultivation dual-use box, colleges and universities, scientific research and production have a direct help, and provide a reliable guarantee.
Features:
#heating and drying oven
#oven drying
#oven series oven series
#drying cabinet and oven
#dhg heating and drying oven
AE-PH series drying/cultivation dual-use box, with high quality, reliable, safe characteristics, using fan air forced convection of the new type of drying/cultivation dual-use box, colleges and universities, scientific research and production have a direct help, and provide a reliable guarantee.
Features:
+large LCD display, multiple groups of data in one screen display, menu type operation interface, easy to understand, easy to operate.
+Adopts fan speed control mode to improve the temperature uniformity of the chamber.
+Adopt self-developed air duct circulation system, automatically discharge water vapor inside the box.
+Automatic change of dry culture mode, when the temperature is higher than 80 degrees change to dry mode, can also be set according to user needs.
+Adopt microcomputer temperature controller with overtemperature deviation protection and digital display, with timing function, accurate and reliable temperature control.
+Inner tank adopts mirror stainless steel, shelf support can be free loading and unloading, semicircular design of four corners makes cleaning more convenient.
+Oven shell is made of high quality cold rolled steel plate, electrostatic spray plastic surface.
+Adopts the self-designed conversion mode with weak control and strong, which avoids the impact on the system during the high current conversion, thus improving the reliability of the product.
+Double door structure, good heat insulation performance, observation of the chamber does not affect the temperature.
+Independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents. (optional).
+Has RS485 interface to connect recorder and computer, which can record the change of temperature parameters. (optional).
Options:+Embedded printer -- easy for customers to print data.
+Independent temperature limit alarm system -- when the temperature exceeds the limit, the heating source is forced to stop to protect the safety of your laboratory.
+RS485 interface and special software -- connect computer, export experimental data.
+Test hole 25mm/50mm -- can be used to test the actual temperature of the working room.
+Intelligent program controller -- 30 programming steps can be set up to meet various complex experiments.
Specifications:| Model | AE-PH030A | AE-PH050A | AE-PH070A | AE-PH140A | AE-PH240A |
| Power Requirement | AC220V 50HZ | ||||
| Temperature Range | DRYING : 80～250℃; CALTIVATE: RT+5～80℃ | ||||
| Temperature Stability | ±1℃ | ||||
| Display Resolution | DRYING :±1℃; CALTIVATE: 0.5℃ | ||||
| Ambient Temperature | +5～35℃ | ||||
| Timing Range | 1～9999min | ||||
| Standard Shelves | 2pcs | ||||
| Power Consumption | 850W | 1100W | 1550W | 2050W | 2500W |
| Interior Dimension (W×D×H mm) | 340×330×320 | 420×350×390 | 450×400×450 | 550×450×550 | 600×595×650 |
| External Dimension (W×D×H mm) | 625×540×500 | 705×610×530 | 735×615×630 | 835×670×730 | 880×800×830 |
| Volume | 30L | 50L | 70L | 136L | 220L |
