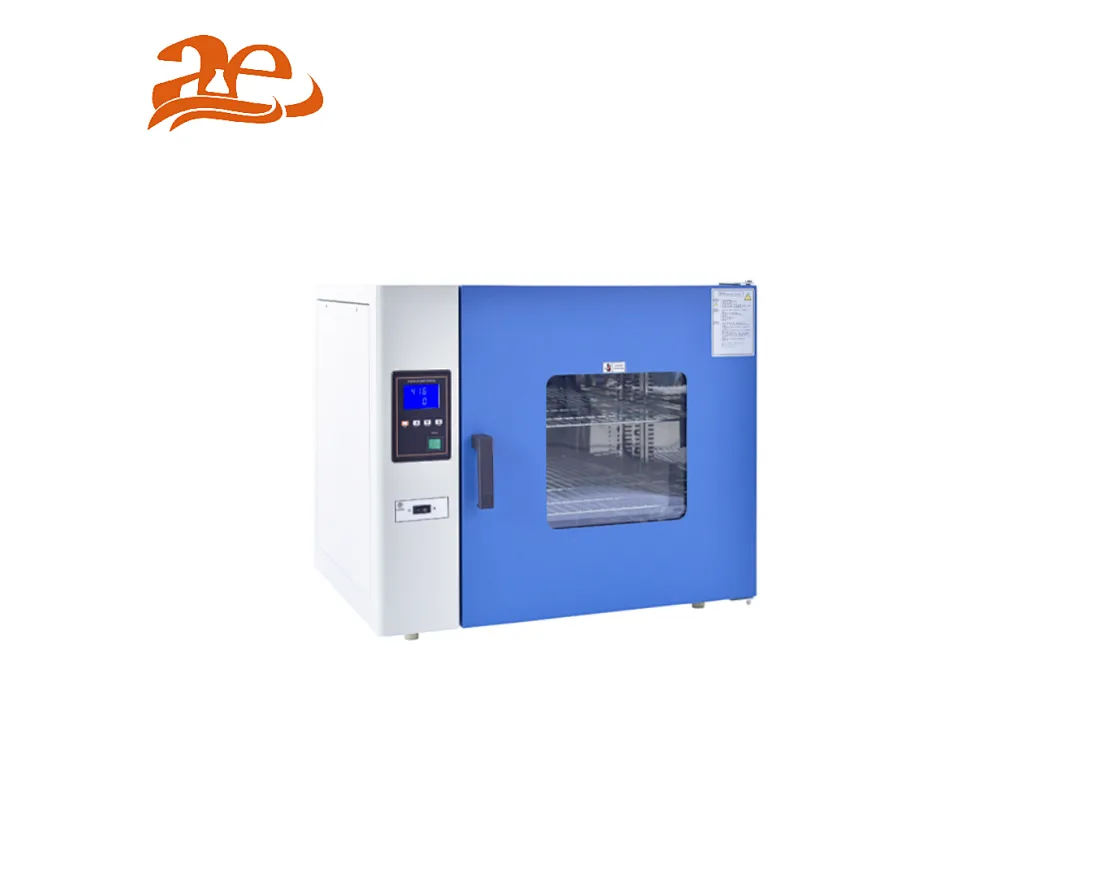

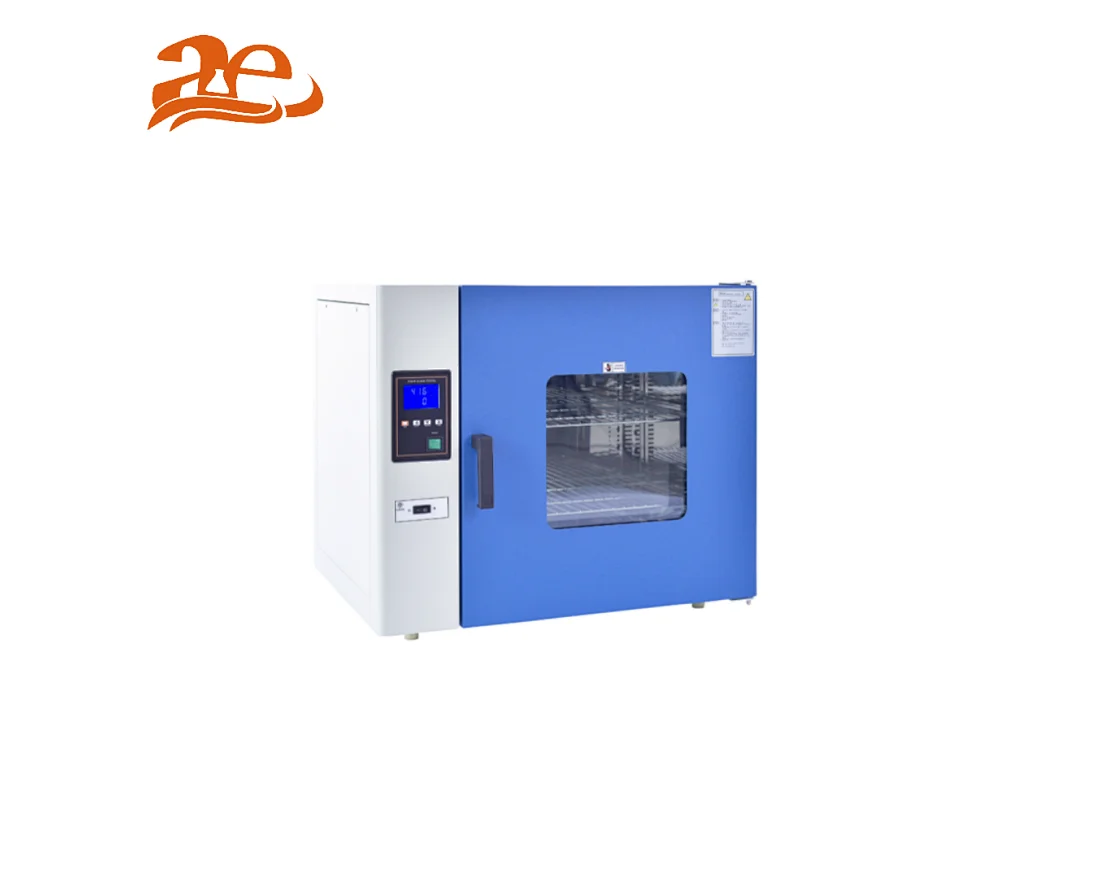

AELAB Drying Oven AE-DG Series
The drying oven is forced air convection which provide for desiccation, torr-faction, wax-melting and sterilization in mining enterprises, laboratories and scientific research institutes.
AE-DG Series
1
Quantity:
Drying Oven
The drying oven is forced air convection which provide for desiccation, torr-faction, wax-melting and sterilization in mining enterprises, laboratories and scientific research institutes.
Features:
The drying oven is forced air convection which provide for desiccation, torr-faction, wax-melting and sterilization in mining enterprises, laboratories and scientific research institutes.
Features:
+Standard large screen LCD display, multiple groups of data display on one screem, menu type interface, easy to understand, easy to operate.
+The fan speed can control mode, according to different experiments can freely adjust the speed of the wind speed.
+Independently developed air duct circulation system,automatic discharge of water vapor inside the box.
+Using the overtemperature deviation protection, microcomputer PID fuzzy processing controller, quickly reach the preset temperature stable operation.
+Mirror stainless steel inner chamber, four corners half arc design, easy to clean, the spacing of the shelves can be adjusted.
+The sealing design of the new synthetic silicon sealing strip effectively prevents heat loss, and can extend the parts on the basis of 30% energy saving of service life.
+The use of JAKEL pipe flow circulation fan, unique design of the air duct, to create a good air circulation convection, to ensure the temperature uniformity.
+PID control mode, temperature control precision fluctuation is small, with timing function, the maximum time set value is 9999 minutes.
Options：
Specifications:
Remark:
1. The technical parameters are tested at the conditions of ambient temperature 20℃, 50%RH, no load, no strong magnetic and no vibration.
2. The picture is for reference only, please refer to the actual goods.
#oven drying
#oven series
#drying oven
#oven series oven series
Options：
+Embedded printer -- easy for customers to print data.
+Independent temperature limit alarm system -- when the temperature exceeds the limit, the heating source is forced to stop to protect the safety of your laboratory.
+RS485 interface and special software -- connect computer, export experimental data.
+Test hole 25mm/50mm -- can be used to test the actual temperature of the working room.
+Intelligent program controller -- 30 programming steps can be set up to meet various complex experiments.
Specifications:
| Model | AE-DG9030A | AE-DG9050A | AE-DG9070A | AE-DG9140A | AE-DG9240A | AE-DG9260A |
| Power Requirement | AC220V 50HZ | |||||
| Temperature Range | RT+10～250℃ | |||||
| Temperature Stability | ±1℃ | |||||
| Display Resolution | 0.1℃ | |||||
| Ambient Temperature | +5～40℃ | |||||
| Timing Range | 1～9999min | |||||
| Standard Shelves | 2pcs | |||||
| Power Consumption | 850W | 1100W | 1550W | 2050W | 2500W | 2500W |
| Interior Dimension (W×D×H mm) | 340×320×320 | 420×340×390 | 450×390×450 | 550×440×550 | 600×585×650 | 600×595×750 |
| External Dimension (W×D×H mm) | 630×455×510 | 705×475×580 | 735×525×640 | 835×575×740 | 885×720×840 | 885×720×940 |
| Volume | 30L | 50L | 80L | 136L | 220L | 260L |
| Model | AE-DG9035A | AE-DG9055A | AE-DG9075A | AE-DG9145A | AE-DG9245A |
| Power Requirement | AC220V 50HZ | ||||
| Temperature Range | RT+10～300℃ | ||||
| Temperature Stability | ±1℃ | ||||
| Display Resolution | 0.1℃ | ||||
| Ambient Temperature | +5～40℃ | ||||
| Timing Range | 1～9999min | ||||
| Standard Shelves | 2pcs | ||||
| Power Consumption | 850W | 1100W | 1550W | 2050W | 2500W |
| Interior Dimension (W×D×H mm) | 340×330×320 | 420×350×390 | 450×400×450 | 550×450×550 | 600×595×650 |
| External Dimension (W×D×H mm) | 625×455×510 | 705×475×580 | 735×525×640 | 835×575×740 | 885×720×840 |
| Volume | 30L | 50L | 80L | 136L | 220L |
Remark:
1. The technical parameters are tested at the conditions of ambient temperature 20℃, 50%RH, no load, no strong magnetic and no vibration.
2. The picture is for reference only, please refer to the actual goods.
