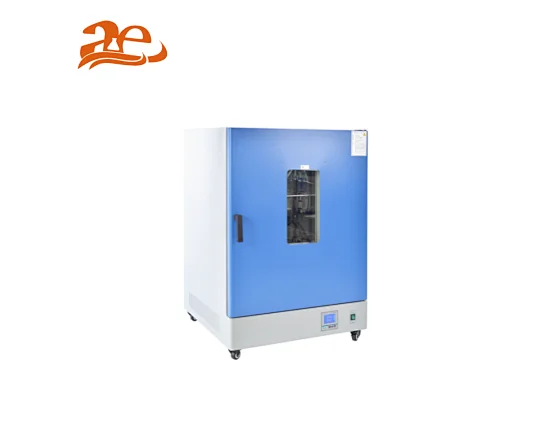

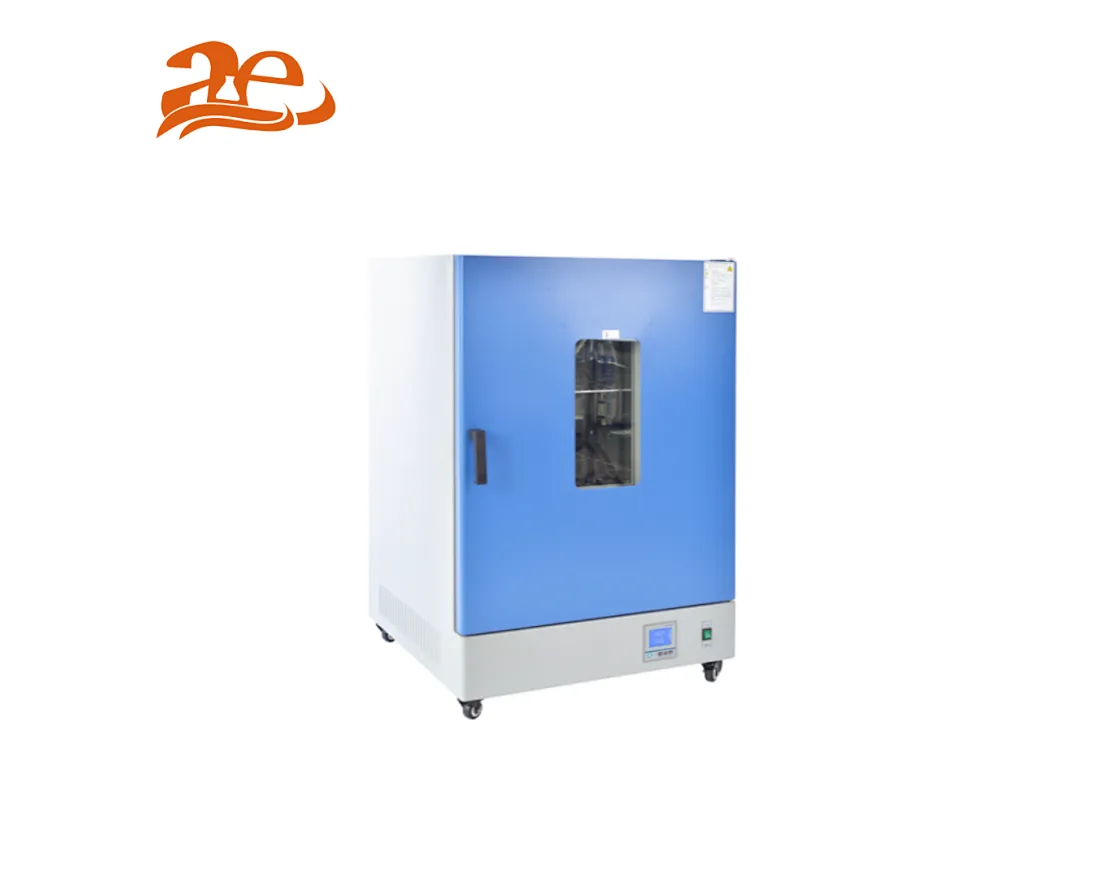

AELAB Drying Oven AE-BG Series
It can be used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories and scientific research institutes.
AE-BG9070A AE-BG9140A AE-BG9240A AE-BG9420A AE-BG9620A AE-BG9920A
1
Quantity:
Drying Oven
It can be used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories and scientific research institutes.
Features:
It can be used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories and scientific research institutes.
Features:
+Standard large screen LCD display, multiple groups of data in one screen display, menu type operation interface, easy to understand, easy to operate.
+Using fan speed control mode, can adjust the speed of wind speed according to different experiments.
+Independently developed air duct circulation system, automatic discharge of water vapor inside the chamber.
+Adopt overtemperature deviation protection, microprocessor PID fuzzy processing controller, quickly reach the preset temperature stable operation.
+The mirror stainless steel inner bladder, four corners of the semi-arc design, easy to clean, the spacing of the separator in the chamber is adjustable.
+The sealing design of the new synthetic silicon sealing strip effectively prevents heat loss, and can prolong the energy saving of each component on the basis of 30%Service life.
+JAKEL tube flow circulating fan, unique design of air duct, to create a good air circulation convection, to ensure temperature uniformity.
+PID control mode, temperature control precision fluctuation is small, with timing function, the maximum time set value of 9999 minutes.
Options：
+Embedded printer -- easy for customers to print data.
+Independent temperature limit alarm system -- when the temperature exceeds the limit, the heating source will be forcibly stopped to ensure the safety of your laboratory.
+RS485 interface and special software -- connect computer, export experimental data.
+Test hole 25mm/50mm -- can be used to test the actual temperature of the working room.
+Intelligent program controller can set up 30 steps of programming procedures to meet various complex experiments.
Specifications:
Remark:
1. The technical parameters are tested at the conditions of ambient temperature 20℃, 50%RH, no load, no strong magnetic and no vibration.
2. The picture is for reference only, please refer to the actual goods.
#drying oven
#oven drying
#oven series oven series
#drying clay in oven
Specifications:
| Model | AE-BG9070A | AE-BG9140A | AE-BG9240A | AE-BG9420A | AE-BG9620A | AE-BG9920A |
| Work voltage | AC220V 50HZ | AC380V 50HZ | ||||
| Temperature range | RT+10~300℃ | |||||
| Temperature accuracy | ±0.5℃ | |||||
| Temperature resolution | 0.1℃ | |||||
| Input power | 1100W | 1550W | 2050W | 3500W | 4000W | 6000W |
| Interior dimension W×D×H(mm) | 400×425×445 | 450×550×550 | 500×600×750 | 600×550×1300 | 800×640×1290 | 1000×600×1600 |
| External dimension W×D×H(mm) | 545×580×800 | 640×710×905 | 680×800×1205 | 780×750×1850 | 980×750×1750 | 1180×800×2150 |
| Nominal capacity | 80L | 136L | 225L | 420L | 620L | 1000L |
| Shelves (standard equipped) | 2pcs | 3pcs | 4pcs | |||
| Timing range | 1~9999min | |||||
Remark:
1. The technical parameters are tested at the conditions of ambient temperature 20℃, 50%RH, no load, no strong magnetic and no vibration.
2. The picture is for reference only, please refer to the actual goods.
