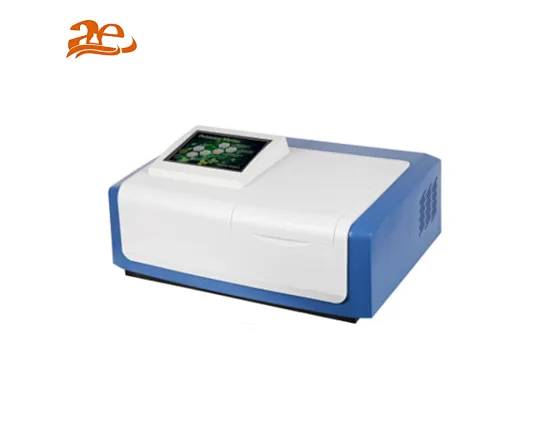

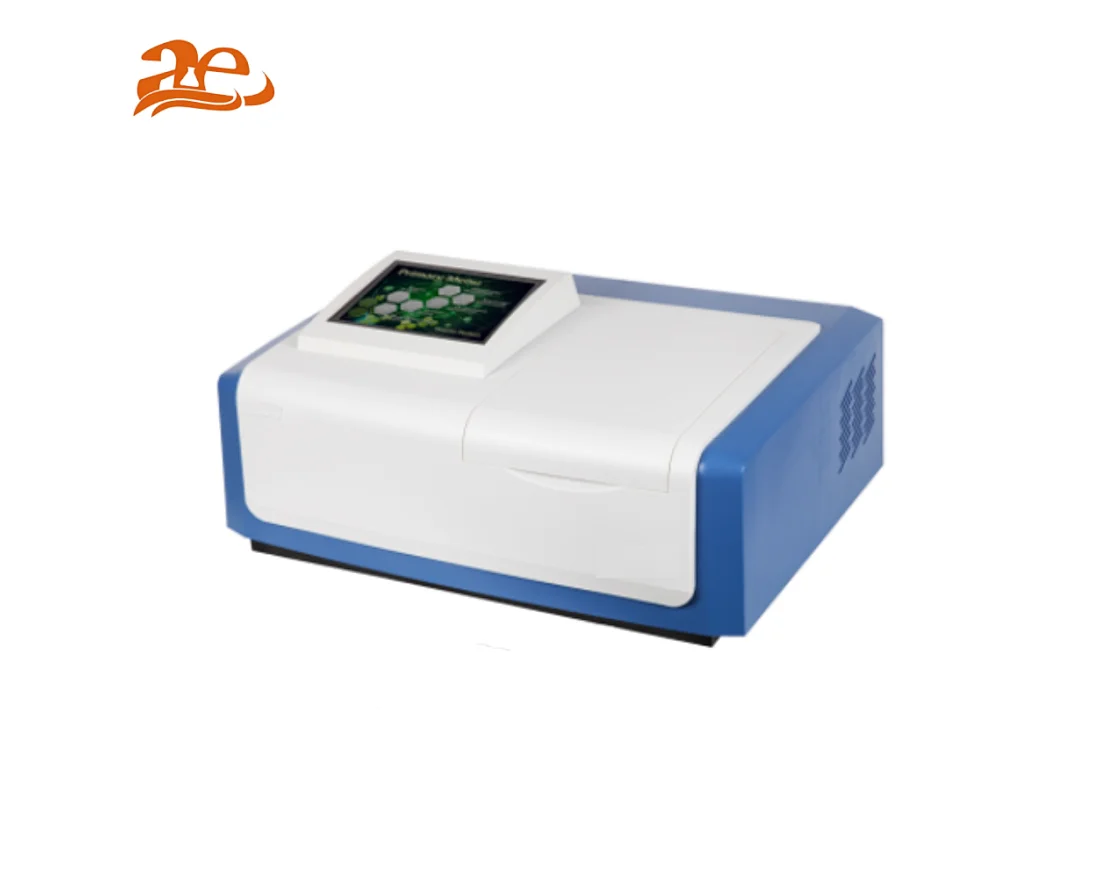

AELAB Double Beam UV-VIS Spectrophotometer
L7 double beam UV-VIS spectrophotometers adopt double beam optical system, and blazed holographic gratings.
AE-L7
1
Quantity:
AELABDouble Beam UV-VIS Spectrophotometer AE-L7
L7 double beam UV-VIS spectrophotometers adopt double beam optical system, and blazed holographic gratings.
They have outstanding test precision and very competitive prices. 8-inch color touch-screen, cutting-edge user interface, powerful functions, and easy operation.
With powerful functions, the equipment shows great performance in qualitative and quantitative testing, such as:
Features:
+Thermal plotter optional
Technical Specifications:
Standard Accessories Optional Accessories
L7 double beam UV-VIS spectrophotometers adopt double beam optical system, and blazed holographic gratings.
They have outstanding test precision and very competitive prices. 8-inch color touch-screen, cutting-edge user interface, powerful functions, and easy operation.
With powerful functions, the equipment shows great performance in qualitative and quantitative testing, such as:
+Full-spectrum scanning
+Linear regression
+Detailed spectrum scanning
+Linear regression
+Detailed spectrum scanning
+Concentration direct reading
+Tibased kinetics determination
+Peak / Valley detecting
+GOTO λ
+Multi-wavelength measurement
Features:
+Double beam optical system
+8-inch color touch-screen
+Automatic zero and full scale adjustment
+Automatic wavelength settings
+Equipped with USB COM port
+UV WIN8 Spectrum Data Processing Software optional
+Thermal plotter optional
Technical Specifications:
| Model | AE-L7 |
| Monochromator type | Czerny turner |
| Focal length | 160mm |
| Wavelength Range | 190-1100nm |
| Band Width | 1.8nm |
| Display | 8-inch color touch screen |
| Wavelength Accuracy | ±0.3nm |
| Wavelength Repeatability | ≤0.01nm |
| Photometric Display Range | 0.0-200 .0% T / -0.301-4.000 A / 0.000-9999 C |
| Photometric Accuracy | ±0.3% T(0-100%T) / ±0.002A(0-0.5A) / ±0.004A(0.5A-1A) |
| Photometric Repeatability | 0.15% T(0-100%T) / ±0.001A(0-0.5A) / ±0.002A(0.5A-1A) |
| Photometric Mode | T,A,C,E |
| Stray Light | ≤0.03% τ (220nm NaI, 360nm NaNO2) |
| Stability | 0.0005A/h@500nm |
| Detector | Import Silicon Photodiode |
| Scanning speed | Fast-medium-slow |
| Power Requirement | AC220V±22 50Hz±1Hz,200W |
| Dimensions(W*D*H) | 74*63*45cm&35kg |
| Baseline Flatness | ≤0.002A(200-1090nm) |
| Grating | 1200 lines/mm |
| Drifting | ≤0.0009 Abs/30min(250nm and 500nm after 2h warm up) |
| Noise | 100%(T)≤0.15%(T);0%(T)≤0.1%(T) |
| Standard Accessory | Quartz Cuvette 10mm*2pcs; Power line; Fuse * 2pcs; Manual |
Standard Accessories Optional Accessories
+Operation manual 1 +UV WIN8 Spectrum data processing software
+Glass cuvette 1cm 4pcs +Thermal Plotter
+Quartz cuvette 1cm 2pcs +no optional cuvette holder
+Power cable 1
+Fuse 2pcs
+Cuvette holder 10mm
