Model NO.
AE-gdsAUTO520
Gel Image Analysis System
Quantity:

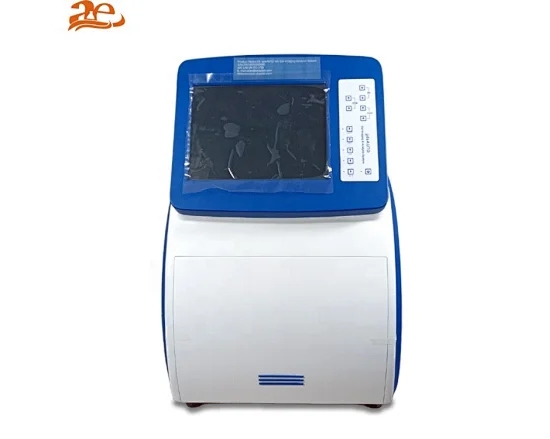

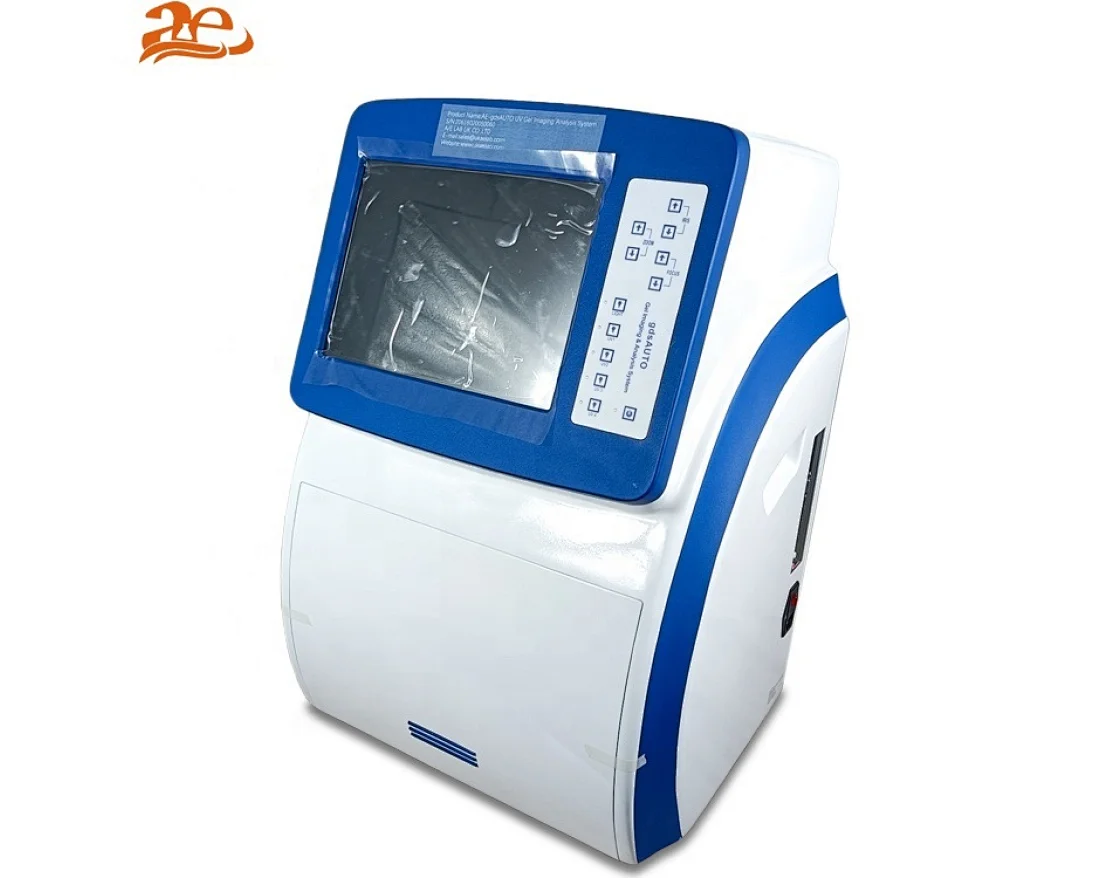

AELAB DNA and RNA Gel Document Imaging System AE-gdsAUTO520
The integrated gel imaging analysis system designed for blue light detection and analysis can realize detection, imaging and analysis storage functions without any external device. Compatible fluorescent dyes are GeneFinderTM, GeneGreen, GelRed, GelGreen, SYBR Green I, SYBR Safe, Goldview, SYBR Gold, SYPRO Ruby, SYPRO Orange, SYPRO Tangerine, eGFP, Cy2, FITC, etc.

Technial Specifications:
ModelAE-gdsAUTO320AE-gdsAUTO520
CameraResolution1280×1024(1.31 million)2592×1944(5.03million)
Pixel size5.2μm×5.2μm
Signal to noise ratio56dB
Detection sensitivityNucleic acid as low as 20pg
LensElectric lensHigh transparency automatic zoom lens, F1.2, 8-48mm
FilterProfessional grade coating filter UV/IR 590nm, optional: 535/605/699nm
Light sourceLight intensityup to 1000 microns /
Lighting modeuv transmission, white light transmission (uv conversion white plate), white light reflection
Excitation light sourcetransmission: 312nm (optional 254nm and 365nm)
Bilateral reflectionLED reflection white light lamp
UV transmission area200×250mm
Visible light transmission area210×260mm
Equipped with glue cutting devicedrawer type sample storage platform, the line of sight is 90° with the sample, which can protect the operator and facilitate the operation of glue cutting
Timed shutdownturn off the uv light source for 15 minutes without operation, effectively extending the service life of the uv lamp and the uv glass
All-in-one machine designit can be controlled by computer or cabinet panel, and can fully control zoom, focus, aperture, transmission ultraviolet lamp and reflection lamp
Airborne display screen12.1-inch industrial control touch LCD
Analysis softwarecustomized software Baygene Gel Image Analysis
All-in-one machine design: it can be controlled by computer or cabinet panel, and can fully control zoom, focus, aperture, transmission ultraviolet lamp and reflection lamp
High-performance low-power I3 processor, dual-core four-thread 1.8g, solid state drive 128G, 4G memory, Windows10 system

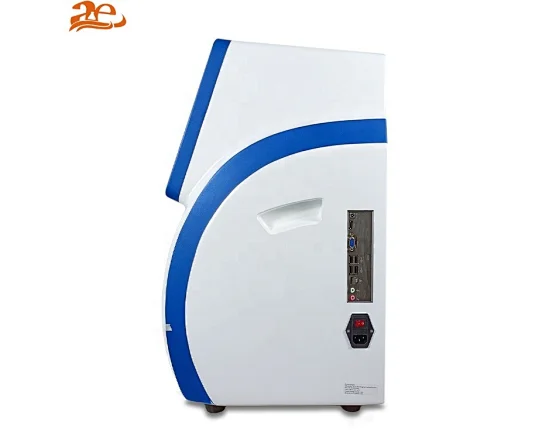

With standard Internet port, USB, COM, VGA, keyboard and mouse, no need to have a computer
