AELAB Cytotoxic Safety Cabinet
AE-11224BBC86 AE-11234BBC86
Quantity:

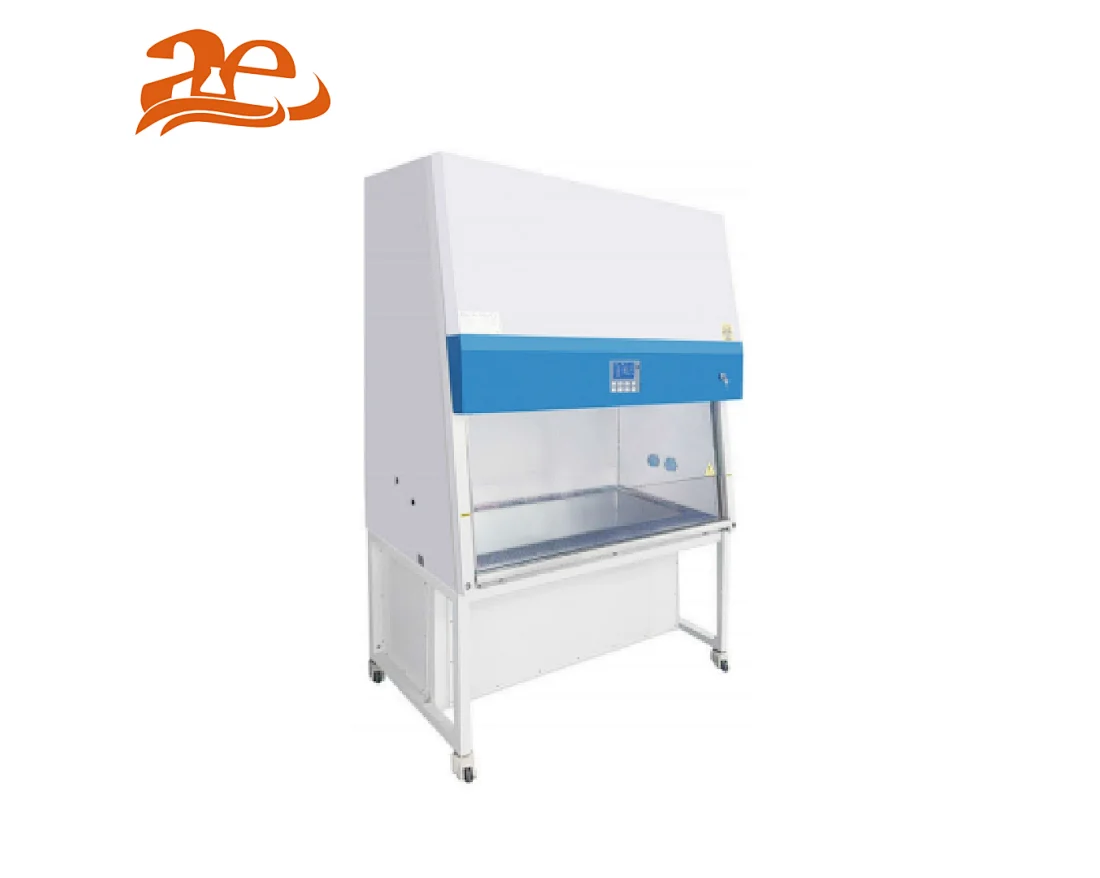

Cytotoxic Safety Cabinet

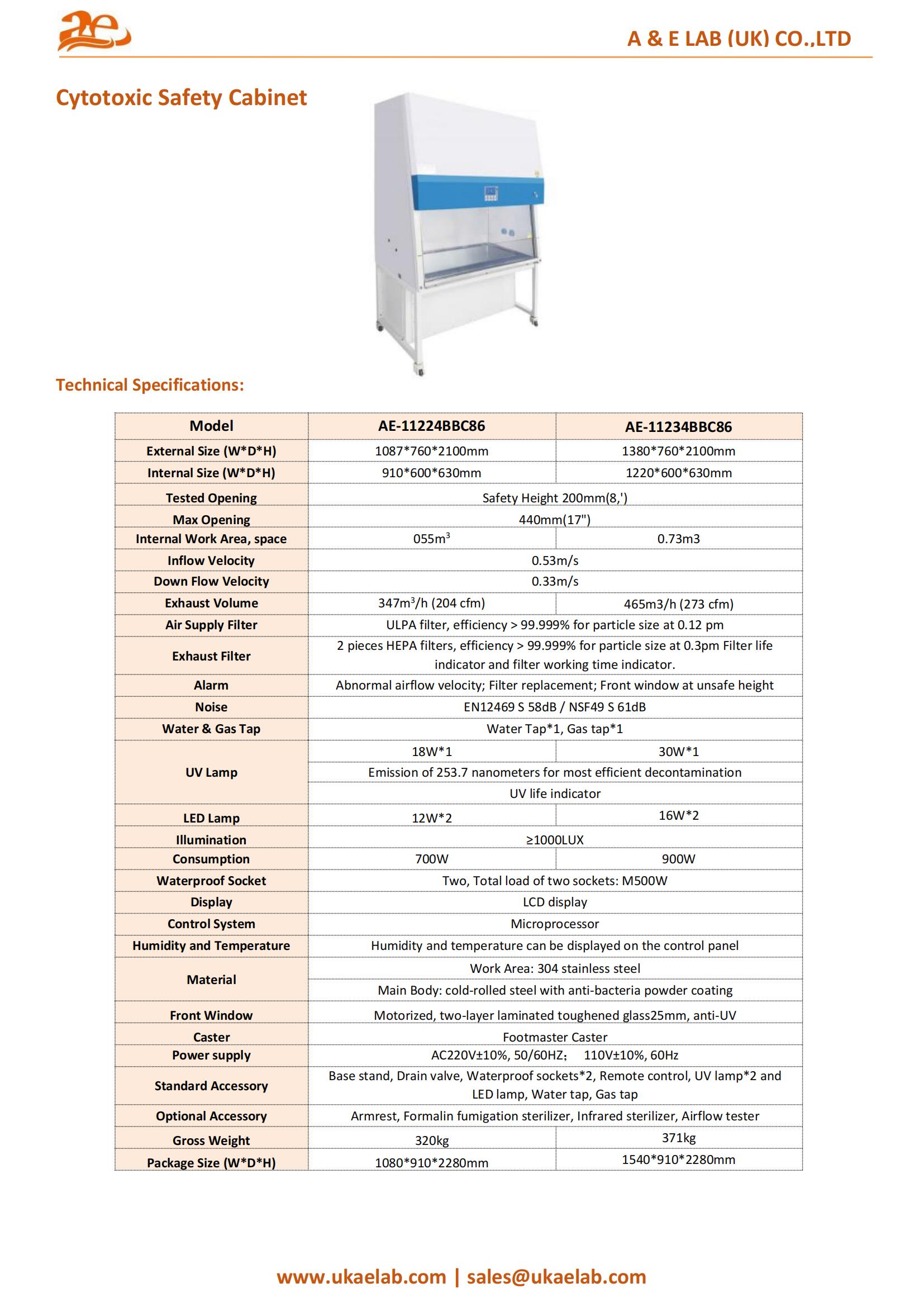

Technical Specifications:
ModelAE-11224BBC86AE-11234BBC86
External Size (W*D*H)1087*760*2100mm1380*760*2100mm
Internal Size (W*D*H)910*600*630mm1220*600*630mm
Tested OpeningSafety Height 200mm(8,')
Max Opening440mm(17")
Internal Work Area, space055m30.73m3
Inflow Velocity0.53m/s
Down Flow Velocity0.33m/s
Exhaust Volume347m3/h (204 cfm)465m3/h (273 cfm)
Air Supply FilterULPA filter, efficiency > 99.999% for particle size at 0.12 pm
Exhaust Filter2 pieces HEPA filters, efficiency > 99.999% for particle size at 0.3pm Filter life indicator and filter working time indicator.
AlarmAbnormal airflow velocity; Filter replacement; Front window at unsafe height
NoiseEN12469 S 58dB / NSF49 S 61dB
Water & Gas TapWater Tap*1, Gas tap*1
UV Lamp18W*130W*1
Emission of 253.7 nanometers for most efficient decontamination
UV life indicator
LED Lamp12W*216W*2
Illumination≥1000LUX
Consumption700W900W
Waterproof SocketTwo, Total load of two sockets: M500W
DisplayLCD display
Control SystemMicroprocessor
Humidity and TemperatureHumidity and temperature can be displayed on the control panel
MaterialWork Area: 304 stainless steel
Main Body: cold-rolled steel with anti-bacteria powder coating
Front WindowMotorized, two-layer laminated toughened glass25mm, anti-UV
CasterFootmaster Caster
Power supplyAC220V±10%, 50/60HZ110V±10%, 60Hz
Standard AccessoryBase stand, Drain valve, Waterproof sockets*2, Remote control, UV lamp*2 and LED lamp, Water tap, Gas tap
Optional AccessoryArmrest, Formalin fumigation sterilizer, Infrared sterilizer, Airflow tester
Gross Weight320kg371kg
Package Size (W*D*H)1080*910*2280mm1540*910*2280mm
