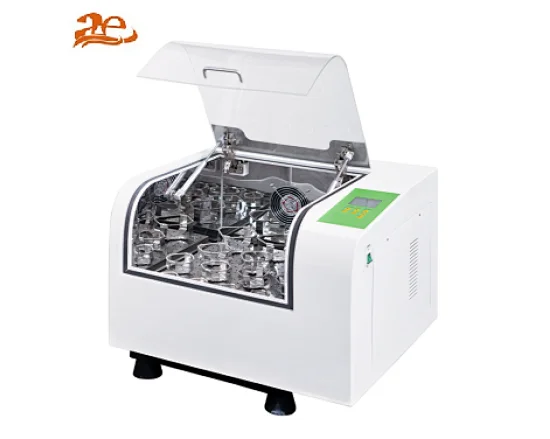

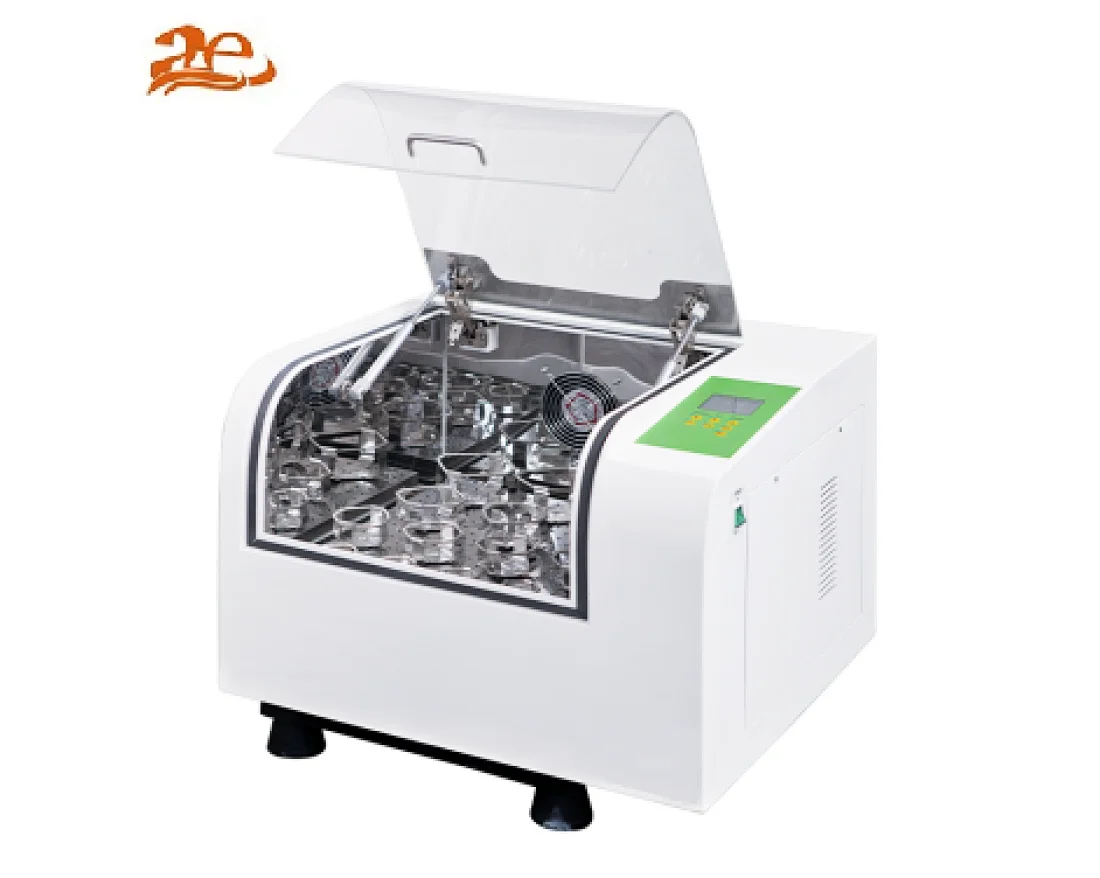

AELAB Constant Temperature Shaking Incubator
AELAB Constant Temperature Shaking Incubator

AELAB Constant Temperature Shaking Incubator

Model NO.
AE-LYZ-200B
+Imported brand compressor (LYZ-200B). ·Integrated with incubator and shaker to save space and cost.
+ABS shell, polished stainless steel chamber.
+Large LCD screen to display temperature and shaking speed.
+With operation data memory function to eliminate faulty operation.
+Auto-recovery after power interruption as originally programmed.
+Auto-stop operation when door is opened. Strong air spring rod with easy opening and closing.
+Brushless DC motor, more stable and reliable.
+Equipped with leakage protection.
Quantity:
AELAB Constant Temperature Shaking Incubator
Feature:
+Imported brand compressor (LYZ-200B). ·Integrated with incubator and shaker to save space and cost.
+ABS shell, polished stainless steel chamber.
+Large LCD screen to display temperature and shaking speed.
+With operation data memory function to eliminate faulty operation.
+Auto-recovery after power interruption as originally programmed.
+Auto-stop operation when door is opened. Strong air spring rod with easy opening and closing.
+Brushless DC motor, more stable and reliable.
+Equipped with leakage protection.

Specifications:
ModelAE-LYZ-103BAE-LYZ-100BAE-LYZ-200B
Shaking Speed (rpm)20-300
Speed accuracy (rpm)±1
Swing amplitude(mm)Φ26
Standard configuration100ml×950ml×4, 100ml×4 ,250ml×3, 500ml×350ml×5, 100ml×5 ,250ml×4, 500ml×3
Maximum capacity50ml×12,100ml×950ml×20 or 100ml×16 or 250ml×12 or 500ml×9100ml×20 or 250ml×16 or 500ml×12 or 1000ml×5 or 2000ml×4
Tray Size(mm)295×253400×370450×410
Timing Range1-9999min
Temperature Range(℃)RT+5~60RT+5~604~60(Cooling)
Temperature Accuracy (℃)±0.1
Temperature uniformity(℃)±1
DisplayLCD
Tray Included1
Exterior Size(W×D×H)mm440×410×390600×580×510780×682×560
Package Size (W×D×H)mm580×530×540740×700×660920×800×610
Net/Gross weight(kg)31/4172/88100/125
Volume (W×D×H)mm320×295×190440×405×270510×490×360
Power Rating220W320W580W
Power SupplyAC 220~240V,  50~60Hz
