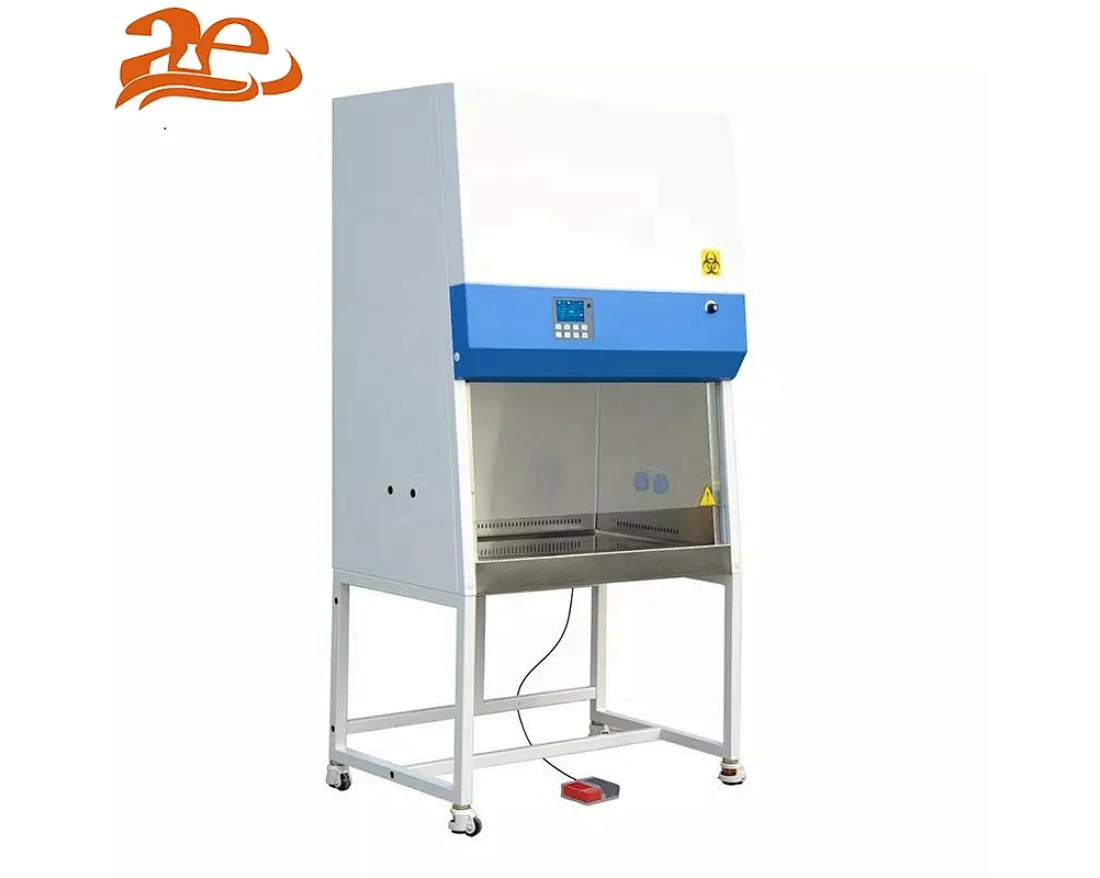

AELAB Class IIA2 Biological Safety Cabinet
AELAB Class IIA2 Biological Safety Cabinet
AELAB Class IIA2 Biological Safety Cabinet
AELAB Class IIA2 Biological Safety Cabinet
AELAB Class IIA2 Biological Safety Cabinet

AELAB Class IIA2 Biological Safety Cabinet

Model NO.
AE-1300IIA2-X
+Motorized front window.
+Time reserve function.
+HEPA filter life and UV life indicator.
+Automatic air speed adjustable with filter block.
+With memory function in case of power-failure.
+Audio and visual alarm (Abnormal airflow velocity; Filter replacement; Front window at unsafe height).
+Work area surrounded by negative pressure, it can ensure maximum safety in work area.
+Audio and visual alarm (Filter replacement, window over height, abnormal air flow velocity etc).
+Remote control: all functions can be realized with it, making the operation much easier and more convenient.
+Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
+Foot switch: adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.
Quantity:
AELAB Class IIA2 Biological Safety Cabinet
Features:

+Motorized front window.
+Time reserve function.
+HEPA filter life and UV life indicator.
+Automatic air speed adjustable with filter block.
+With memory function in case of power-failure.
+Audio and visual alarm (Abnormal airflow velocity; Filter replacement; Front window at unsafe height).
+Work area surrounded by negative pressure, it can ensure maximum safety in work area.
+Audio and visual alarm (Filter replacement, window over height, abnormal air flow velocity etc).
+Remote control: all functions can be realized with it, making the operation much easier and more convenient.
+Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
+Foot switch: adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.

Technical Specifications:
ModelAE-1100IIA2-XAE-1300IIA2-XAE-1500IIA2-XAE-1800IIA2-XAE-2000IIA2-X
Internal Size(W*D*H)940* 600*660 mm1150*600*660 mm1350*600*660mm1625*600*660mm1800*600*660mm
External Size(W*D*H)1100*750*2250mm1300*750*2250mm1500*750*2250mm1800*775*2290mm1950*800*2170mm
Tested OpeningSafety Height = 200 mm(8'')
Max Opening420mm(17’’)420mm(17’’)500mm(20’’)550mm(22’’)400mm(16’’)
Inflow Velocity0.53±0.025 m/s
Downflow Velocity0.33±0.025 m/s
HEPA  FilterTwo, 99.9995% efficient at 0.12um. Filter life indicator.
Front WindowMotorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV.
NoiseEN12469 ≤ 58 dB / NSF49 ≤ 61 dB
UV Lamp30W*130W* 140W* 140W*140W* 1
UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination.
Illuminating LampLED Lamp
12W*212W*216W*216W*216W*2
Illumination≥1000Lux
Consumption760W800W900W900W1500W
Waterproof SocketsTwo, total load of two sockets: 500W
DisplayLCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
Control SystemMicroprocessor
Airflow System70% air recirculation, 30% air exhaust
Visual and audio alarmAbnormal airflow velocity,Filter replacement, front window at unsafe height,.
MaterialWork Zone: 304 stainless steel
Main Body: Cold-rolled steel with anti-bacteria powder coating.
Work Surface Height750mm
CasterFootmaster caster
Power SupplyAC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard AccessoryLED lamp, UV lamp*2, Base stand, Remote control, Foot switch, Drain valve, Waterproof sockets*2
Optional AccessoryWater and gas tap, Electric height adjustable base stand.
Gross Weight243kg280kg316kg395kg420kg
Package Size(W*D*H)1220× 1000× 1840 mm1460*1050*1800 mm1630*1000*1820 mm1930*1000*1820mm2090*1050*1860 mm
