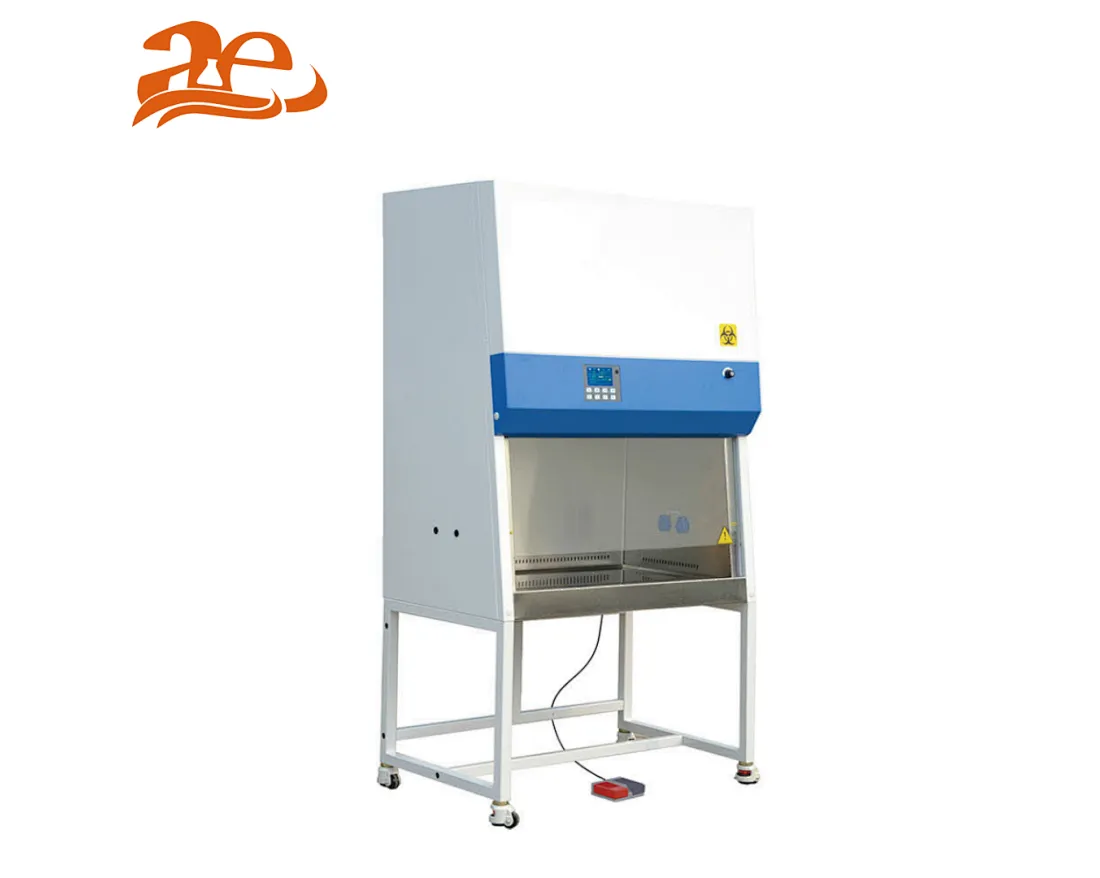

AELAB Class IIA2 Biological Safety Cabinet
+Motorized front window.
+Time reserve function.
+HEPA filter life and UV life indicator.
+Automatic air speed adjustable with filter block.
+With memory function in case of power-failure.
AE-BSC-1100IIA2-X AE-BSC-1300IIA2-X AE-BSC-1500IIA2-X AE-BSC-1800IIA2-X AE-BSC-2000IIA2-X
Quantity:
Class IIA2 Biological Safety Cabinet

Features:
+Motorized front window.
+Time reserve function.
+HEPA filter life and UV life indicator.
+Automatic air speed adjustable with filter block.
+With memory function in case of power-failure.
+Audio and visual alarm (Abnormal airflow velocity; Filter replacement; Front window at unsafe height).
+Work area surrounded by negative pressure, it can ensure maximum safety in work area.
+Audio and visual alarm (Filter replacement, window over height, abnormal air flow velocity etc).
+Remote control: all functions can be realized with it, making the operation much easier and more convenient.
+Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
+Foot switch: adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.

Technical Specifications:
ModelAE-BSC-1100IIA2-XAE-BSC-1300IIA2-XAE-BSC-1500IIA2-XAE-BSC-1800IIA2-XAE-BSC-2000IIA2-X
Internal Size(W*D*H)940* 600*660 mm1150*600*660 mm1350*600*660mm1625*600*660mm1800*600*660mm
External Size(W*D*H)1100*750*2250mm1300*750*2250mm1500*750*2250mm1800*775*2290mm1950*800*2170mm
Tested OpeningSafety Height = 200 mm(8'')
Max Opening420mm(17’’)420mm(17’’)500mm(20’’)550mm(22’’)400mm(16’’)
Inflow Velocity0.53±0.025 m/s
Downflow Velocity0.33±0.025 m/s
HEPA  FilterTwo, 99.9995% efficient at 0.12um. Filter life indicator.
Front WindowMotorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV.
NoiseEN12469 ≤ 58 dB / NSF49 ≤ 61 dB
UV Lamp30W*130W* 140W* 140W*140W* 1
UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination.
Illuminating LampLED Lamp
12W*212W*216W*216W*216W*2
Illumination≥1000Lux
Consumption760W800W900W900W1500W
Waterproof SocketsTwo, total load of two sockets: 500W
DisplayLCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
Control SystemMicroprocessor
Airflow System70% air recirculation, 30% air exhaust
Visual and audio alarmAbnormal airflow velocity,Filter replacement, front window at unsafe height,.
MaterialWork Zone: 304 stainless steel
Main Body: Cold-rolled steel with anti-bacteria powder coating.
Work Surface Height750mm
CasterFootmaster caster
Power SupplyAC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard AccessoryLED lamp, UV lamp*2, Base stand, Remote control, Foot switch, Drain valve, Waterproof sockets*2
Optional AccessoryWater and gas tap, Electric height adjustable base stand.
Gross Weight243kg280kg316kg395kg420kg
Package Size(W*D*H)1220× 1000× 1840 mm1460*1050*1800 mm1630*1000*1820 mm1930*1000*1820mm2090*1050*1860 mm
