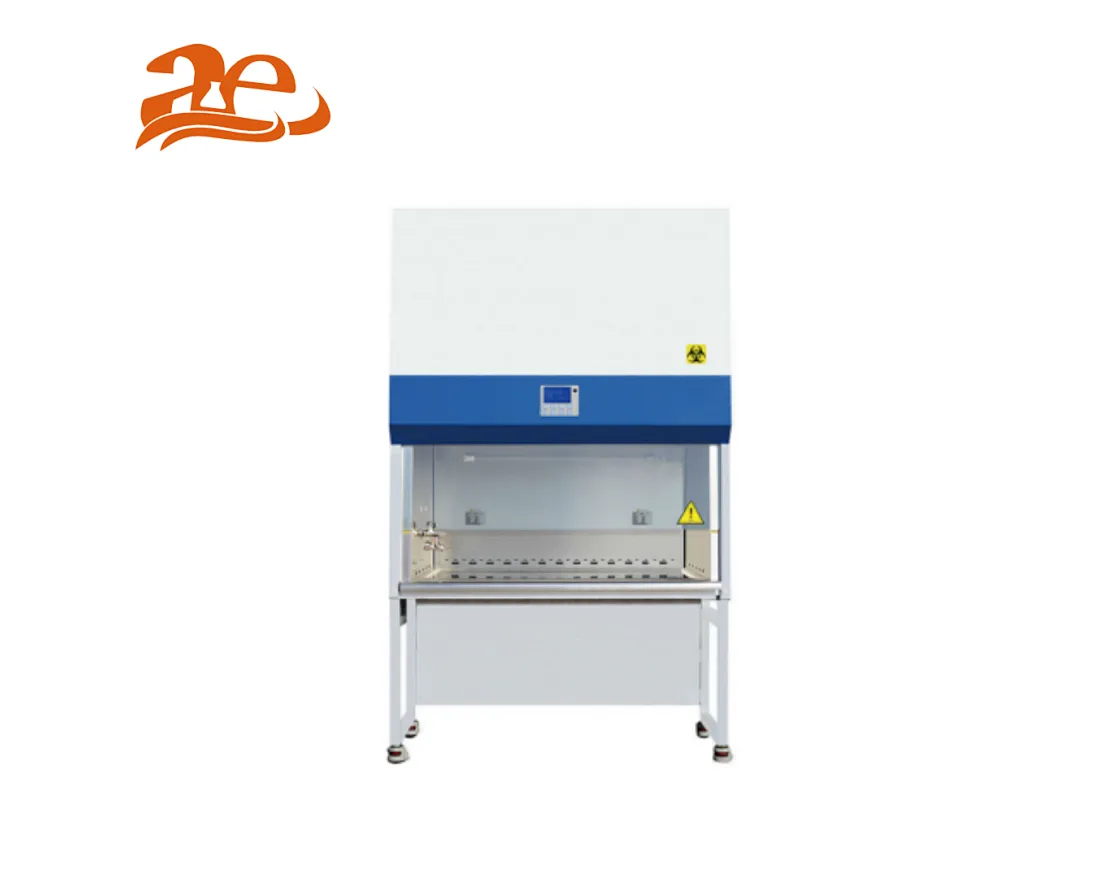

AELAB Class II A2 Biological Safety Cabinet
+Motorized front window.
+Large LCD display, all information displayed.
+Automatic air speed adjustable with filter block.
+With memory function in case of power-failure.
+Side & back wall is made of single piece stainless steel.
AE-11235BBC86(3") AE-11236BBC86(6")
Quantity:
Class II A2 Biological Safety Cabinet

Features:
+Motorized front window.
+Large LCD display, all information displayed.
+Automatic air speed adjustable with filter block.
+With memory function in case of power-failure.
+Side & back wall is made of single piece stainless steel.
+Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
+Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.

Technical Specifications:
ModelAE-11235BBC86(3")AE-11236BBC86(6")
External Size(W*D*H)1087*775*2265mm1873*775*2295mm
Internal Size(W*D*H)910*600*660mm1700*600*660mm
Work Surface Height750mm
Max Opening520mm (21")550mm (22")
Tested OpeningSafety height 200mm (8")
Airflow VolumeInflow Downflow Exhaust348m3/h (205cfm)649m3/h (382cfm)
65%: 649m3/h (382cfm)60%: 1212m3/h (713cfm)
35%: 348m3/h (205cfm)40%: 649m3/h (382cfm)
Front WindowMotorized. Two-layer laminated toughened glass N5mm. Anti UV
HEPA FilterTwo, 99.999% efficiency at 0.3pm, filter life indicator
Filter Guard TypeAluminum alloy frame
NoiseNSF 49≤61 dB / EN 12469≤58dB
Illumination≥1000LUX
DisplayLCD Display
Waterproof SocketTwo, Total consumption:≤500W
lapWater tap*1, Gas tap *1
Ground Resistance≤0.10Q
Power SupplyAC220V±10%, 50/60HZ110V±10%, 60Hz, Full load Amps: 9A, BTU/Hr: 1689
Consumption300W500W
AlarmAbnormal airflow velocity; Filter replacement; Front window at unsafe height
DC MotorOne ECM motor, 110V&220V acceptable, Speed adjustable, high efficiency and low power consumption
MaterialWorking area: 304 stainless steel
Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating
UV Lamp18W40W
Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination
Illuminating Lamp10W*222W*2
LED lamp
Standard AccessoryIlluminating lamp, UV lamp*2, Base stand, SS water & gas taps, Drain valve, Waterproof sockets,
Stainless Steel I.V. Bar with 10 hooks
Optional AccessoryArmrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Remote control, Electric height adjustable base stand
Package Size (W*D*H)1220*1000*1840mm2020*1080*1900mm
Gross Weight270kg363kg
