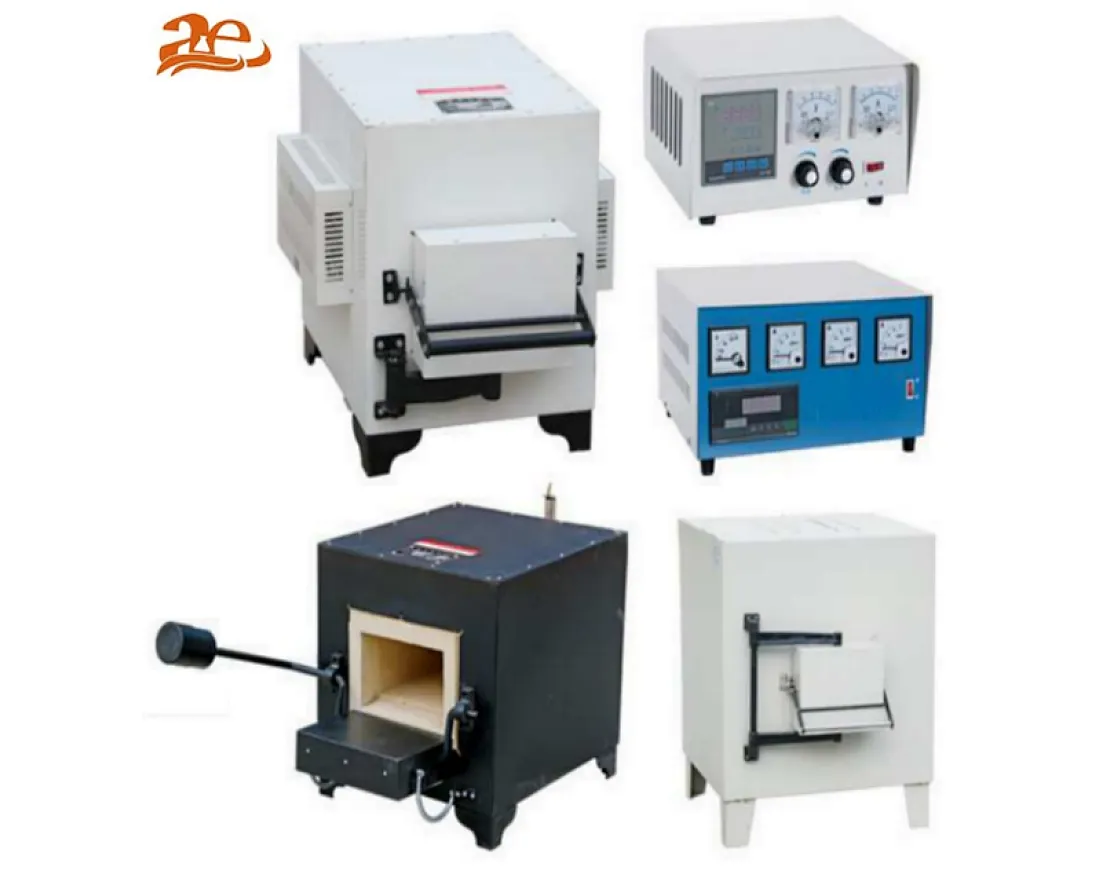

AELAB Box Type Muffle Furnace
AELAB Box Type Muffle Furnace

AELAB Box Type Muffle Furnace

Model NO.
AE-SX-2.5-10
+The case adopts high quality cold-rolled steel plate with the plastic spraying on the surface. The door adopts side door structure, which easy to open and shut.
+The medium-temperature box furnace adopts closed hearth, the spiral electric heating alloy wire as the heating component coiled in hearth, the temperature of furnace is uniform when it radiating. The use life is prolonged.
+High temperature tube resistance furnace adopts high temperature combustion and takes silicon carbide rod as heating component to set up in outer sheath of hearth.
+High temperature box resistance furnace takes silicon carbide rod as heating component and set up in hearth directly. It has high use rate.
+The thermal insulation material of this kind of furnace adopts light foam insulating brick and alumina silica cellucotton. The accumulation of heat and heat conductivity factor are decreased so heat accumulation of hearth will be more. The temperature rising time is shorten. The temperature of surface is rising very slowly. Wastage rate of empty furnace is small and power consumption is lowest.
+The controller is divided into: a pointer type, intelligent, microcomputer-based multi-band temperature control.
Quantity:
AELAB Box Type Muffle Furnace
It is the periodical heating treatment. It used in element determination and heating in heat treatment of small steel, such as hardening, annealing and tempering of laboratories, industrial mining enterprise, scientific research unit and colleges. The high temperature furnace could be used in high temperature heating of metal, sintering, dissolution and analysis of ceramic.

Features:
+The case adopts high quality cold-rolled steel plate with the plastic spraying on the surface. The door adopts side door structure, which easy to open and shut.
+The medium-temperature box furnace adopts closed hearth, the spiral electric heating alloy wire as the heating component coiled in hearth, the temperature of furnace is uniform when it radiating. The use life is prolonged.
+High temperature tube resistance furnace adopts high temperature combustion and takes silicon carbide rod as heating component to set up in outer sheath of hearth.
+High temperature box resistance furnace takes silicon carbide rod as heating component and set up in hearth directly. It has high use rate.
+The thermal insulation material of this kind of furnace adopts light foam insulating brick and alumina silica cellucotton. The accumulation of heat and heat conductivity factor are decreased so heat accumulation of hearth will be more. The temperature rising time is shorten. The temperature of surface is rising very slowly. Wastage rate of empty furnace is small and power consumption is lowest.
+The controller is divided into: a pointer type, intelligent, microcomputer-based multi-band temperature control.



Technical Specifications:
ModelRated power (KW)Rated temperature (°C)Rated voltage (V)Number of phasesTemperature rising time of empty furnace(min)Cubage (L)Size of Working Room (mm) (D xWxH)Overall dimension (LxWxH) (mm)Model of equipped controllerNG/WG(kg)
AE-SX-2.5-102.51000AC220V 50HzSingle2200x120 x 80455 x 600 x 440KSW-6-1249/52
AE-SX-4-1041000AC220V50HZSingle7300 x 200x120530 x 700 x 500KSW-6-1291 /94
AE-SX-8-1081000AC380V 50HzThree<9016400 x 250x160600x900x580KSW-12-12147/153
AE-SX-12-10121000AC380V 50HzThreeW10030500 x 300 x 200670 x 930 x 630KSW-12-12197/202
AE-SX-2.5-122.51200AC220V 50HzSingleW1202200x120x80455 x 600 x 440KSW-6-1650/53
AE-SX-5-1251200AC220V50HZSingleW1357300x200x120530 x 700 x 500KSW-6-1691/93.8
AE-SX-10-12101200AC380V50HzThreeW15016400 x 250x160600x900x580KSW-12-16198/201
AE-SRJX-4-1341300AC220V 50HzSingleW2504250x150x100520 x 680 x 495KSY-6-1692/96
AE-SRJX-8-1381300AC380V 50HzThree18500 x 200x180600 x 850 x 600KSY-12-1668/75
AE-SK-2.5-132.51300AC220V50HZSingle<604)22 x 2600 x 385 x 430KSY-3-1620/26.4
AE-SK-2-1321300AC220V 50HzSingleW60622x1600 x 385 x 430KSY-3-1621 / 27
AE-XL-141000AC220V 50HzSingle=£808325 x 200X125590 x 540 x 520KSW-6-1268/75
AE-SX2-8-1681600AC380V 50HzSingleW3605.5300x150x120880 x 560 x 880240/300
AE-SX2-12-16121600AC380V 50HzSingleW36013400x200x1601000 x 770 x 960335/400
