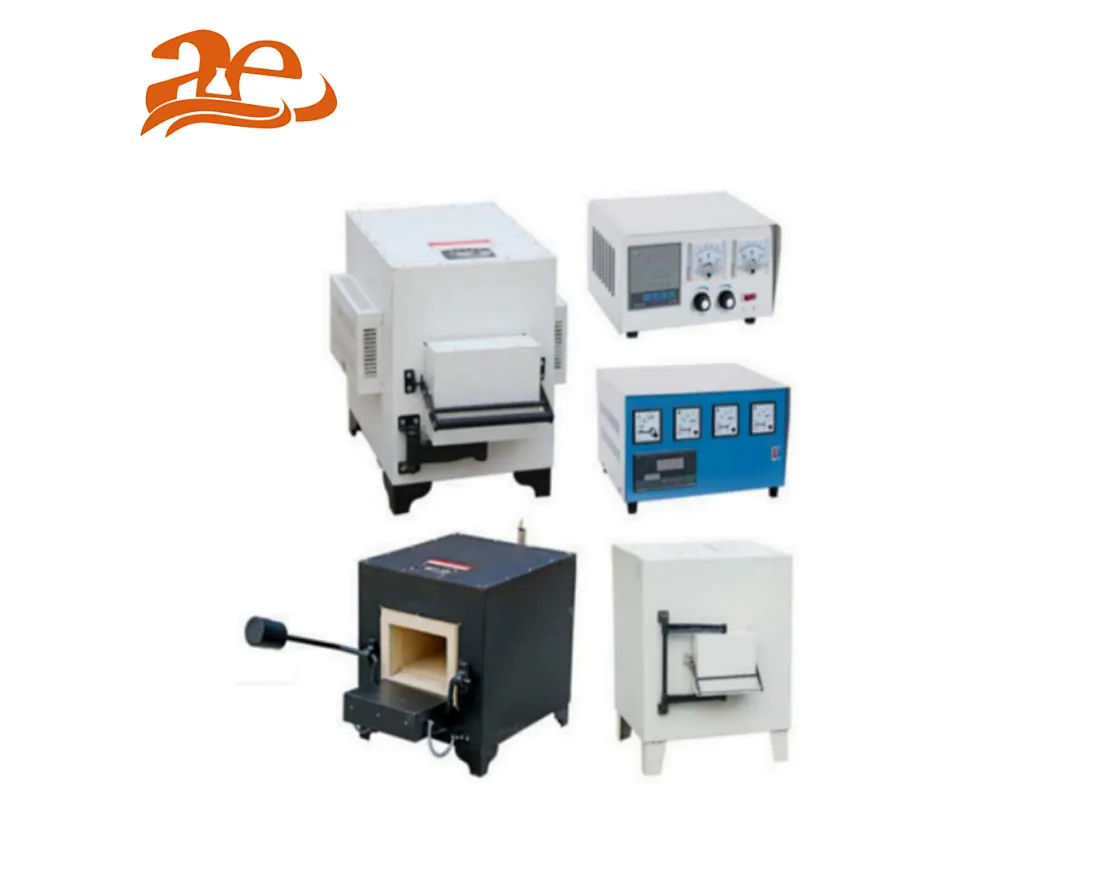

AELAB Box Type Muffle Furnace
It is the periodical heating treatment. It used in element determination and heating in heat treatment of small steel, such as hardening, annealing and tempering of laboratories, industrial mining enterprise, scientific research unit and colleges. The high temperature furnace could be used in high temperature heating of metal, sintering, dissolution and analysis of ceramic.
AE-SX Series AE-SRJX-4-13 AE-SRJX-8-13 AE-SK-2.5-13 AE-SK-2-13 AE-XL-1
Quantity:
Box Type Muffle Furnace
It is the periodical heating treatment. It used in element determination and heating in heat treatment of small steel, such as hardening, annealing and tempering of laboratories, industrial mining enterprise, scientific research unit and colleges. The high temperature furnace could be used in high temperature heating of metal, sintering, dissolution and analysis of ceramic.

Features:
+The case adopts high quality cold-rolled steel plate with the plastic spraying on the surface. The door adopts side door structure, which easy
to open and shut.
+The medium-temperature box furnace adopts closed hearth, the spiral electric heating alloy wire as the heating component coiled in hearth,the temperature of furnace is uniform when it radiating. The use life is prolonged.
+High temperature tube resistance furnace adopts high temperature combustion and takes silicon carbide rod as heating component to set up in outer sheath of hearth.
+High temperature box resistance furnace takes silicon carbide rod as heating component and set up in hearth directly. It has high use rate.
+The thermal insulation material of this kind of furnace adopts light foam insulating brick and alumina silica cellucotton. The accumulation of heat and heat conductivity factor are decreased so heat accumulation of hearth will be more. The temperature rising time is shorten. The temperature of surface is rising very slowly. Wastage rate of empty furnace is small and power consumption is lowest.
+The controller is divided into: a pointer type, intelligent, microcomputer-based multi-band temperature control.

Technical Specifications
ModelRated
Power
(KW)
Rated
Temperaure
(℃)
Rated voltae
(V)
Number
Of phases
Temperature
rising time
of empty
furnace(min)
Cubage
(L)
Size of
Working Room
(mm) (DxWxH)
Overall Dimension
(LxWxH) (mm)
Model
of equipped
controller
NG/WG
(kg)
AE-SX-2.5-102.51000AC220V 50HzSingle2200x120x80455x600x440KSW-6-1249/52
AE-SX-4-1041000AC220V 50HZSingle7300x200x120530x700x 500KSW-6-1291/94
AE-SX-8-1081000AC380V 50HzThree<9016400x250x160600x900x580KSW-12-12147/153
AE-SX-12-10121000AC380V 50HzThreeW10030500x300x200670x930x630KSW-12-12197/202
AE-SX-2.5-122.51200AC220V 50HzSingleW1202200x120x80455x 600x440KSW-6-1650/53
AE-SX-5-1251200AC220V 50HZSingleW1357300x200x120530x700x500KSW-6-1691/93.8
AE-SX-10-12101200AC380V 50HzThreeW15016400x250x160600x900x580KSW-12-16198/201
AE-SRJX-4-1341300AC220V 50HzSingleW2504250x150x100520x680x495KSY-6-1692/96
AE-SRJX-8-1381300AC380V 50HzThree18500x 200x180600x850x600KSY-12-1668/75
AE-SK-2.5-132.51300AC220V 50HZSingle<604)22×2600x385x430KSY-3-1620/26.4
AE-SK-2-1321300AC220V 50HzSingleW60622x1600x385x430KSY-3-1621/27
AE-XL-141000AC220V 50HzSingle808325x200X125590x540x520KSW-6-1268/75
AE-SX2-8-1681600AC380V 50HzSingleW3605.5300x150x120880x560x880240/300
AE-SX2-12-16121600AC380V 50HzSingleW36013400x200x1601000x770x960335/400
