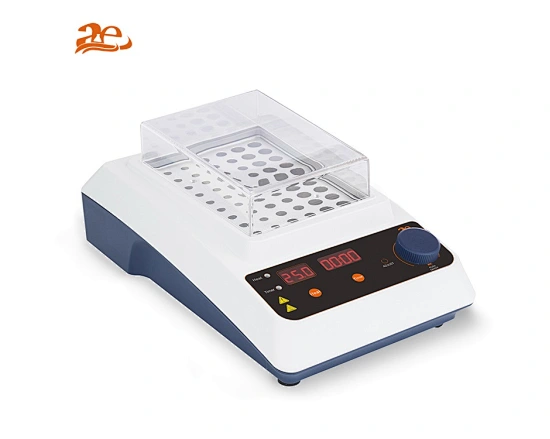

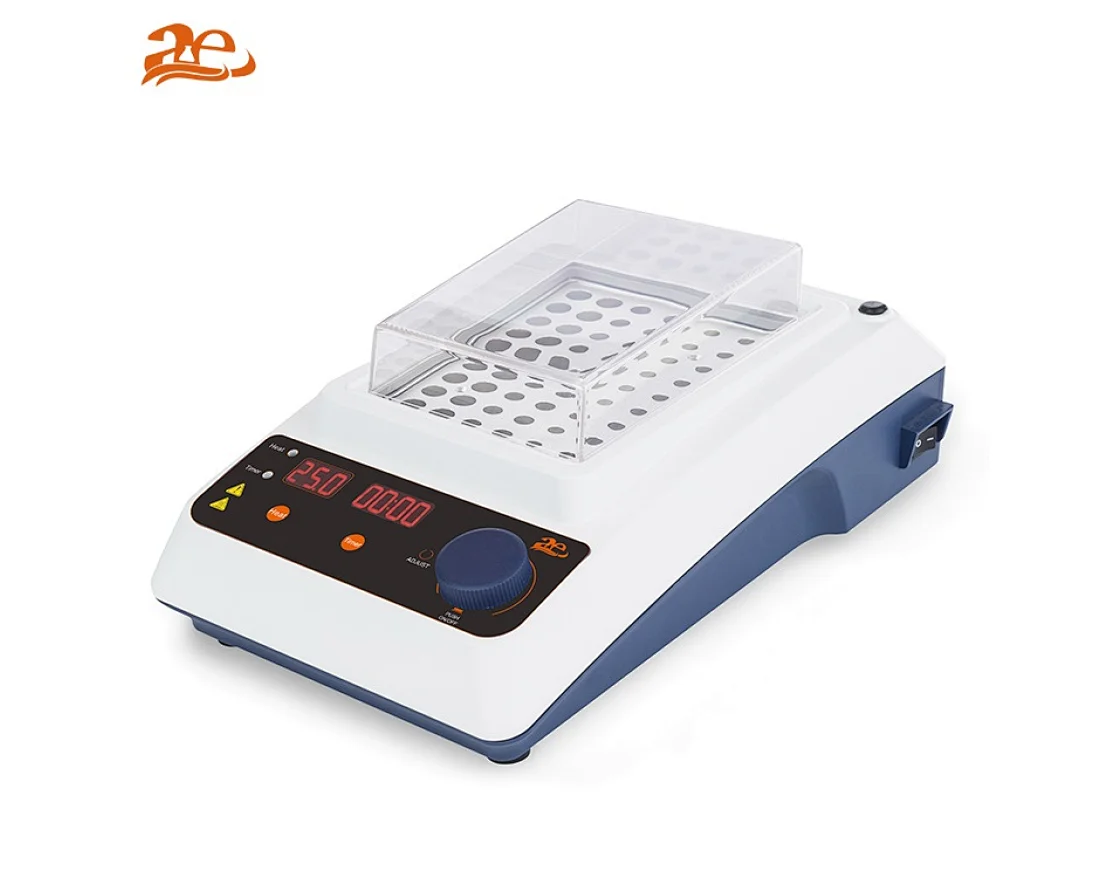

AELAB Block Heater/Dry Bath AE-BH101
AELAB Block Heater/Dry Bath AE-BH101
AELAB Block Heater/Dry Bath AE-BH101
AELAB Block Heater/Dry Bath AE-BH101
AELAB Block Heater/Dry Bath AE-BH101

AELAB Block Heater/Dry Bath AE-BH101

Model NO.
AE-BH101
+ A wide range of temperature control up to 120°C.
+ Useful for heating of samples at low temperatures.
+ Timer function support is available.
+ LED digital display of temperature and time.
+ Various types of optional blocks are available
+Overheating protection.
+ Plastic Lid for protection and heat preservation.
Quantity:
AELAB Block Heater/Dry Bath

Features:
+ A wide range of temperature control up to 120°C.
+ Useful for heating of samples at low temperatures.
+ Timer function support is available.
+  LED digital display of temperature and time.
+ Various types of optional blocks are available
+Overheating protection.
+ Plastic Lid for protection and heat preservation.


Technical Specifications:

ModelAE-BH101
FunctionsHeating
Temperature rangeRoom temp.-120°C
Temperature control accuracy [at 37℃]± 0.5°C
Temperature uniformity± 0.5°C
Max. heating rate5.5°C/min
Timer1min-99h59min
ScreenLED
Overheating protection140°C
Adapter block materialaluminum
Voltage, Frequency100-120V/220-240V,50Hz/60Hz
Power160W
Dimension [D×W×H]175 x 290 x 85mm
Weight3kg

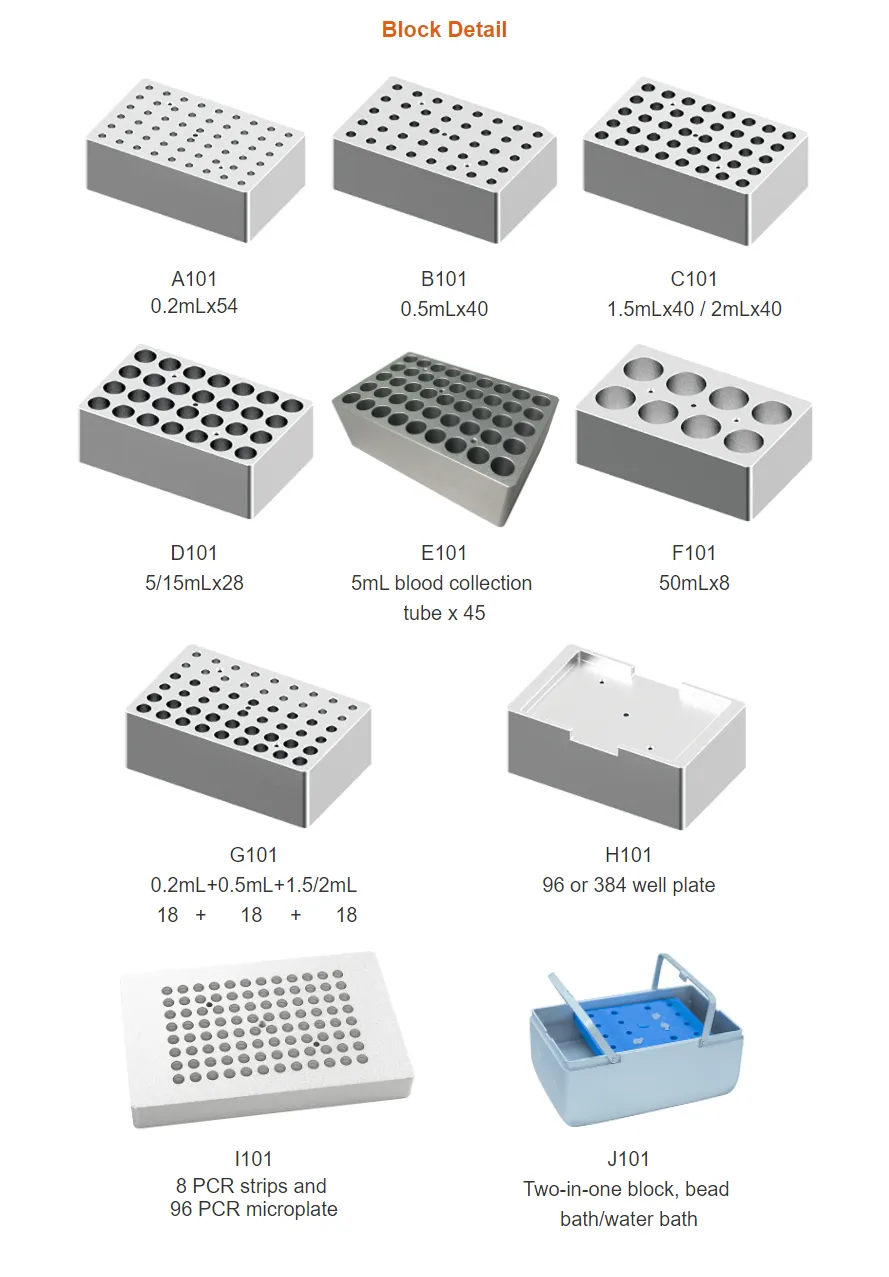

Block Ordering Detail:

Ordering
No.
CapacityDiameter
Depth
Ordering
No.
CapacityDiameter
Depth
A1010.2mLx546.4mm
15mm
F10150mLx829.8mm
48mm
B1010.5mLx408.2mm
26.4mm
G1010.2mL+0.5mL+1.5/2mL
18+18+18
C1011.5mLx40
2mLx40
11mm
34.7mm
H10196 or 384 well plate
D1015/15mLx2817mm
48mm
I1018 PCR strips and
96 PCR microplate
E1015mL blood collection
tube x 45
13.5mm
48mm
J101Two-in-one block, bead
bath/water bath


  • AELAB Block Heater Dry Bath AE-BH101.pdf:Downloads
