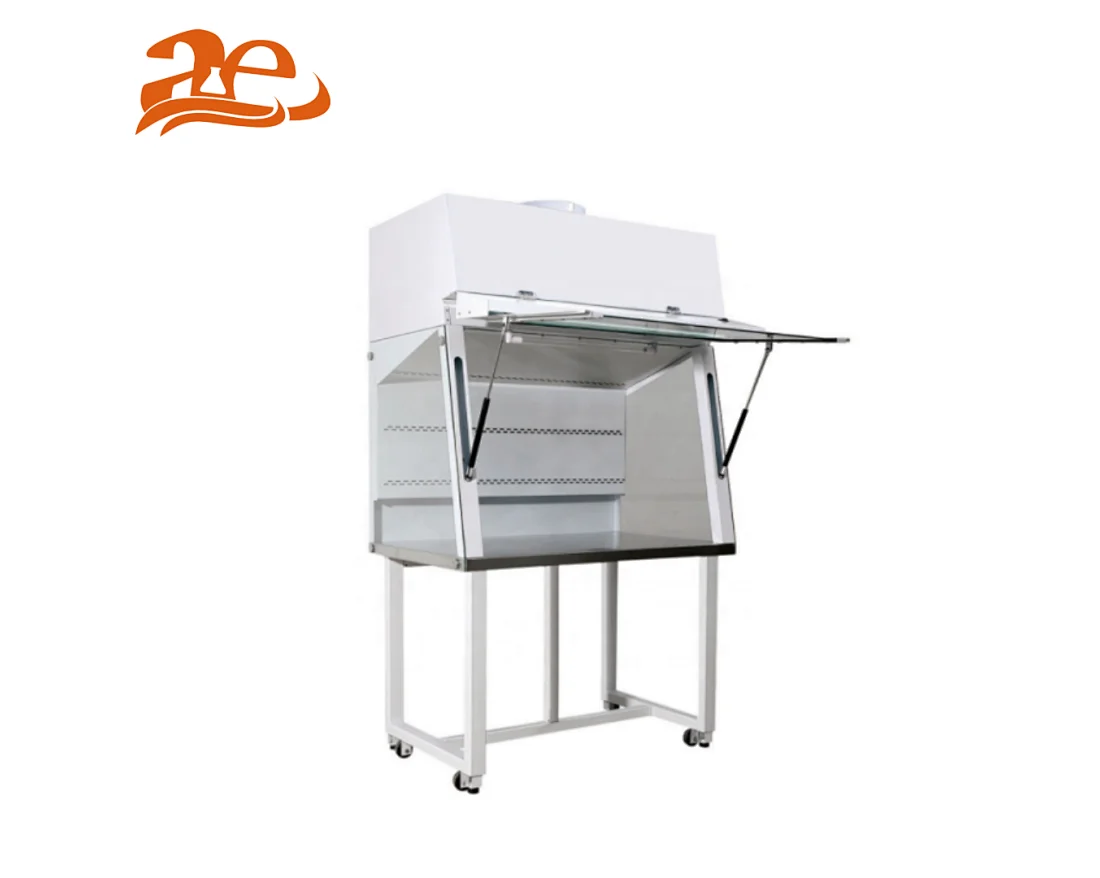

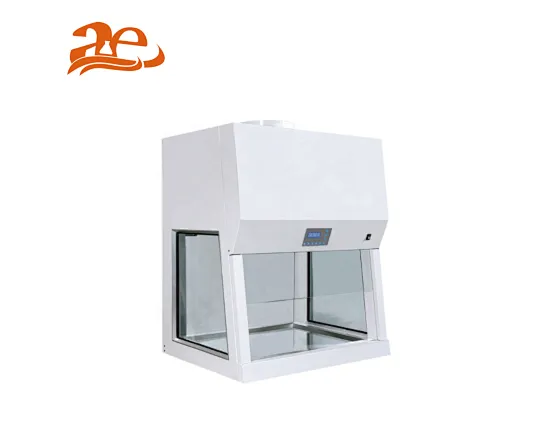

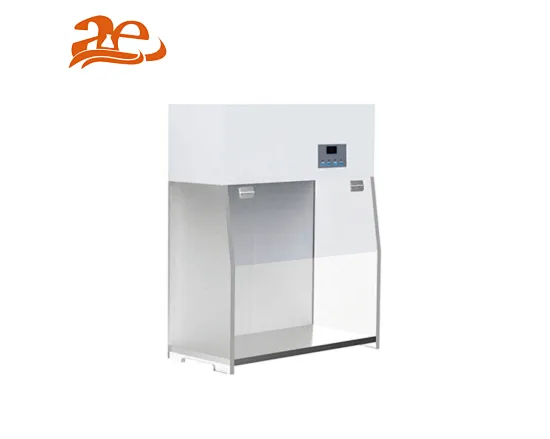

AELAB Biosafety Cabinet
+UV lamp for sterilization.
+Soft touch control panel, LCD display.
+Energy-saving, high efficiency, low noise.
+With memory function in case of power-failure.
+One piece 304 stainless steel work stable, easy for cleaning.
+Soft touch control panel, LCD display.
+Energy-saving, high efficiency, low noise.
+With memory function in case of power-failure.
+One piece 304 stainless steel work stable, easy for cleaning.
AE-BYKG-I AE-BYKG-II AE-BYKG-III AE-BYKG-V
1
Quantity:
Biosafety Cabinet
ADVANTAGE
+UV lamp for sterilization.
+Soft touch control panel, LCD display.
+Energy-saving, high efficiency, low noise.
+With memory function in case of power-failure.
+One piece 304 stainless steel work stable, easy for cleaning.
+Stable air flow system; provide firm protection to person and environment.
TECHNICAL PARAMETERS
#biosafety cabinet
#nsf biosafety cabinet
ADVANTAGE
+UV lamp for sterilization.
+Soft touch control panel, LCD display.
+Energy-saving, high efficiency, low noise.
+With memory function in case of power-failure.
+One piece 304 stainless steel work stable, easy for cleaning.
+Stable air flow system; provide firm protection to person and environment.
TECHNICAL PARAMETERS
| Model | AE-BYKG-I | AE-BYKG-II | AE-BYKG-III | AE-BYKG-V |
| External Size(W*D*H) | 550*395*730mm | 700*550*900mm | 900*713*1250mm | 1100*695*1924mm |
| Internal Size(W*D*H) | 540*385*440mm | 680*540*500mm | 800*635*600mm | 968*695*630mm |
| HEPA Filter | 99.999% efficiency at 0.3pm | |||
| Airflow Velocity | >0.3m/s | 0.75〜1.0m/s | >0.3m/s | 0.75〜1.0m/s |
| Noise | ≤60dB | ≤55dB | ≤60dB | ≤67dB |
| Illuminating Lamp | 4W*1 | 8W*1 | 8W*1 | 21W*2 |
| LED lamp | LED lamp | LED lamp | Fluorescent lamp | |
UV Lamp | 15W*1 | 20W*1 | 20W*1 | 20W*1 |
| Emission of 253.7 nanometers for most efficient decontamination BYKG-III has UV timer function and the display could indicate the UV life. | ||||
| Power Consumption | 150W | ≤60W | ≤400W | ≤350W |
| Work Surface Height | / | / | / | 750mm |
| Caster | / | / | / | Universal castor |
| Main Body Construction | PMMA | PMMA | Cold-rolled steel with anti-bacteria powder coating | |
| Work Table | 304 stainless steel | |||
| Power Supply | AC220V±10%» 50/60HZ;110V±10%, 60Hz | |||
| Standard Accessory | LED lamp. UV lamp*2 | Fluorescent lamp, UV lamp*2, Base stand | ||
| Optional Accessory | Electric height adjustable base stand | |||
| Gross Weight | 38kg | 68kg | 147kg | 185kg |
| Package Size(W*D*H) | 710*550*950mm | 870*720*1170mm | 1060*870*1440mm | 1270*880*2230mm |
