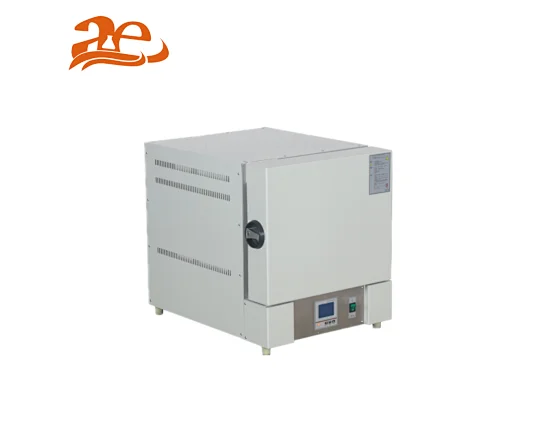

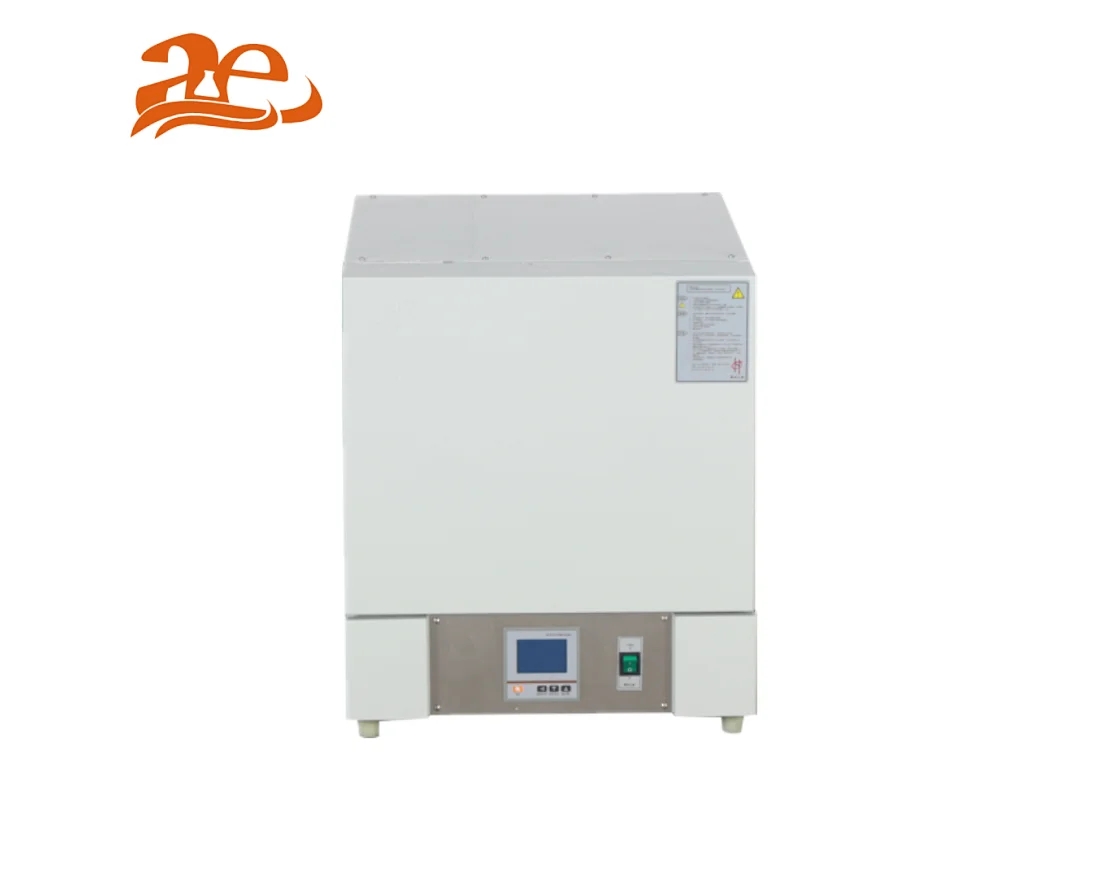

AELAB BOX RESISTANCE FURNACE (MUFFLE FURNACE)
Muffle Furnace Uses:
In the industries like cement making, foundry and nuclear sectors, muffle furnaces help treat the samples at high temperatures.
In the industries like cement making, foundry and nuclear sectors, muffle furnaces help treat the samples at high temperatures.
AE-T/TP Series
1
Quantity:
BOX RESISTANCE FURNACE (MUFFLE FURNACE)
FEATURES
+Big LCD screen shows data and is easy to view.
+PID microprocessor temperature controller with timing function is easy to operate.
+Imported ultra-temperature alloy heating element have long life, high efficient and energy saving.

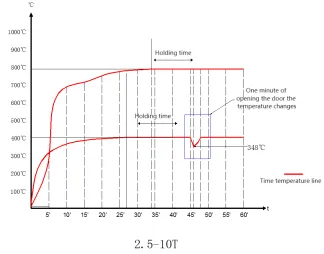

+Short temperature rising time, from room temperature to 1200 ℃ takes less than 25 minutes.
+Little thermal pollution, using new type ceramic fiber insulation material.
+When the temperature reaches at 1200 ℃, the furnace surface is not too hot about 50 ℃.
+Intelligent programmable temperature controller can set multi-step temperature and time. (Model‘TP’)
SUMMARY
The box resistance furnace (muffle furnace) is an essential equipment, widely used in metallurgical laboratory for fusion experiment, heating treatment department for annealing, quenching and other high temperature places.
Note:"T"means: ceramic fiber furnace,"P"means: intelligent program resistance furnace.
SPECIFICATIONS
SPECIFICATIONS
| Model | AE-1.5-10T/TP | AE-2.5-10T/TP | AE-4-10T/TP | AE-8-10T/TP | AE-16-10T/TP |
| Power Consumption | 1.5KW | 2.5KW | 4KW | 8KW | 16KW |
| Temperature rise time | RT+10~1000<30min | RT+10~1000<30min | RT+10~1000<30min | RT+10~1000<30min | RT+10~1000<40min |
| Type of heating element | resistance wire | resistance wire | resistance wire | resistance wire | resistance wire |

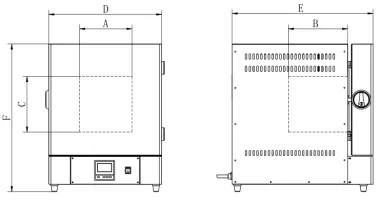

| Interior Dimension (W*D*H mm) | 120×200×80 | 200×300×120 | 200×300×200 | 300×400×300 | 400×500×400 |
| Volume | 1.9L | 7.2L | 12L | 36L | 80L |
| External Dimension (W*D*H mm) | 440×565×555 | 515×665×600 | 535×665×700 | 705×825×910 | 800×1025×1005 |
| Model | AE-1.5-12T/TP | AE-2.5-12T/TP | AE-4-12T/TP | AE-8-12T/TP | AE-16-12T/TP |
| Power Consumption | 1.5KW | 2.5KW | 4KW | 8KW | 16KW |
| Temperature rise time | RT+10~1200<30min | RT+10~1200<30min | RT+10~1200<30min | RT+10~1200<30min | RT+10~1200<40min |
| Type of heating element | resistance wire | resistance wire | resistance wire | resistance wire | resistance wire |
| Interior Dimension (W*D*H mm) | 120×200×80 | 200×300×120 | 200×300×200 | 300×400×300 | 400×500×400 |
| Volume | 1.9L | 7.2L | 12L | 36L | 80L |
| External Dimension (W*D*H mm) | 440×565×555 | 515×665×600 | 535×665×700 | 705×825×910 | 800×1025×1005 |
Remark:
1.The technical parameters are tested at the conditions of ambient temperature 20℃, 50%RH, no load, no strong magnetic and no vibration.
2. The picture is for reference only, please refer to the actual goods.
1.The technical parameters are tested at the conditions of ambient temperature 20℃, 50%RH, no load, no strong magnetic and no vibration.
2. The picture is for reference only, please refer to the actual goods.
