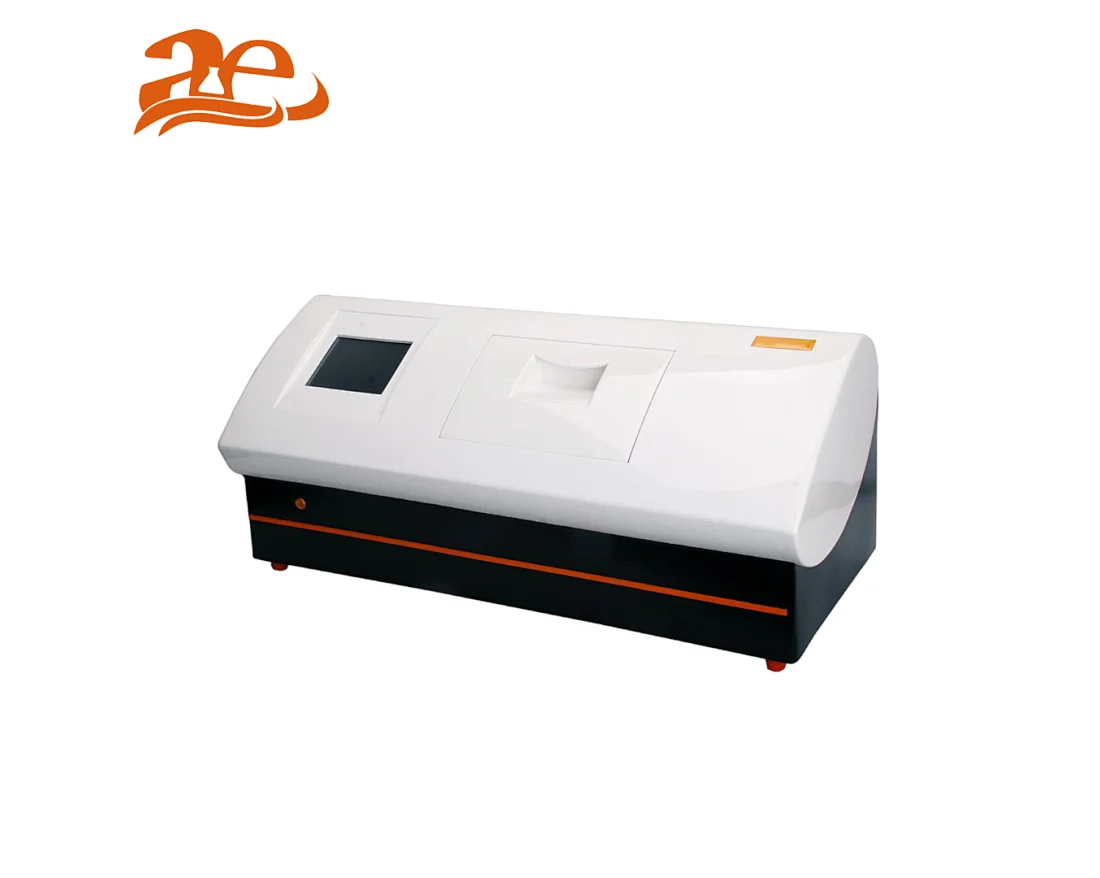

AELAB Automatic Polarimeter AE-P810PRO
P Series Polarimeter with automatic photoelectric inspection technology and operation system development base on android system, boasts accurate and reliable measurement, convenient operation and so on. By detecting the optical rotation, the density, content and purity of substances etc. can be analyzed and determined. It’s widely used in medicine, petroleum, food, chemicals, flavors, spices, sugar marking, other industries and universities and research institutes, especially for Pharmaceutical industry, P850PRO full compliance with FDA 21CFR Part.11.
AE-P810PRO
Quantity:
AELABAutomatic Polarimeter AE-P810PRO
P Series Polarimeter with automatic photoelectric inspection technology and operation system development base on android system, boasts accurate and reliable measurement, convenient operation and so on. By detecting the optical rotation, the density, content and purity of substances etc. can be analyzed and determined. It’s widely used in medicine, petroleum, food, chemicals, flavors, spices, sugar marking, other industries and universities and research institutes, especially for Pharmaceutical industry, P850PRO full compliance with FDA 21CFR Part.11.
Characteristics:
Features:
P Series Polarimeter with automatic photoelectric inspection technology and operation system development base on android system, boasts accurate and reliable measurement, convenient operation and so on. By detecting the optical rotation, the density, content and purity of substances etc. can be analyzed and determined. It’s widely used in medicine, petroleum, food, chemicals, flavors, spices, sugar marking, other industries and universities and research institutes, especially for Pharmaceutical industry, P850PRO full compliance with FDA 21CFR Part.11.
Characteristics:

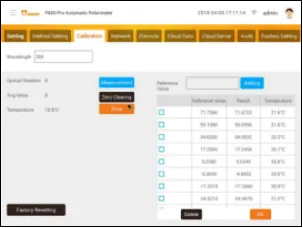

+ Large color touch screen display and innovative android system interface give extremely convenient device operation and data acquisition.
+ High brightness LED lights with service life up to 100000 hours.
+ A variety of measurement modes are optional, without using complicated manual calculation.
+ Extremely large storage capacity can store up to 1000 groups of data information automatically.
Features:
+Adopt LED lamp. Ultra long service life of light source, up to 100000 hours.

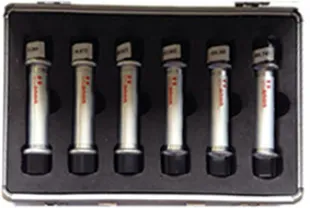

+Automatic calibration system, customer can do calibration by themselves with our calibration kits

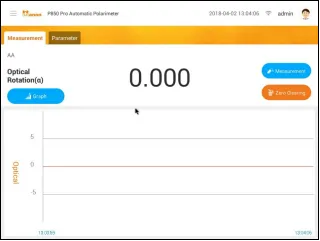

+System can should optical rotation graph in real time.
+Full compliance with FDA 21CFR Part.11. Include data report output, data protection, audit trail,
Technical data:
#automatic watches automatic
Technical data:
| Measuring range | ±89.99°Arc |
| ±259°Z | |
| Min.reading | 0.001°(optical rotation) |
| Accuracy | ±0.01º (-45º≤ optical rotation ≤ +45º) ±0.02º ( optical rotation＜﹣45º or optical rotation＞﹢45º) |
| Repeatability (standard deviations) | 0.002°(optical rotation) |
| Measurable sample min.transmittance | 1% |
| Working wavelength | 589.3nm (LED light source) |
| Temperature control accuracy | ±0.3℃ |
| Temperature resolution | 0.1℃ |
| Interface | USB×3,RS232，Wi-Fi |
| Data storage capacity | 8G |
| Display mode | 5.6'' TFT touch screen |
| Power supply | 220VAC±10% 50Hz |
| Sample Chamber | Accepts sample tubes up to 200mm |
| Power | 250W |
| Net weight | 24kg |
| Calibration mode | automatic calibration(optional) |
| Dimension | 708mmX330mmX287mm |
