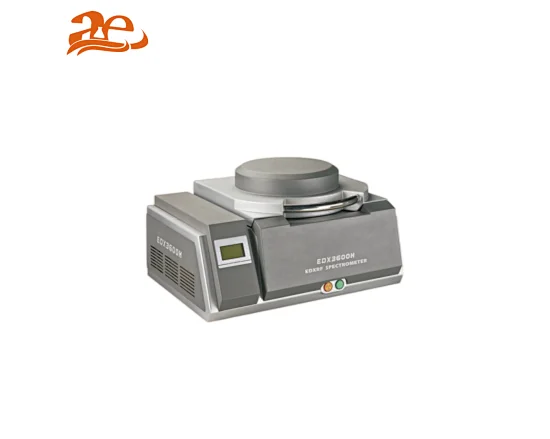

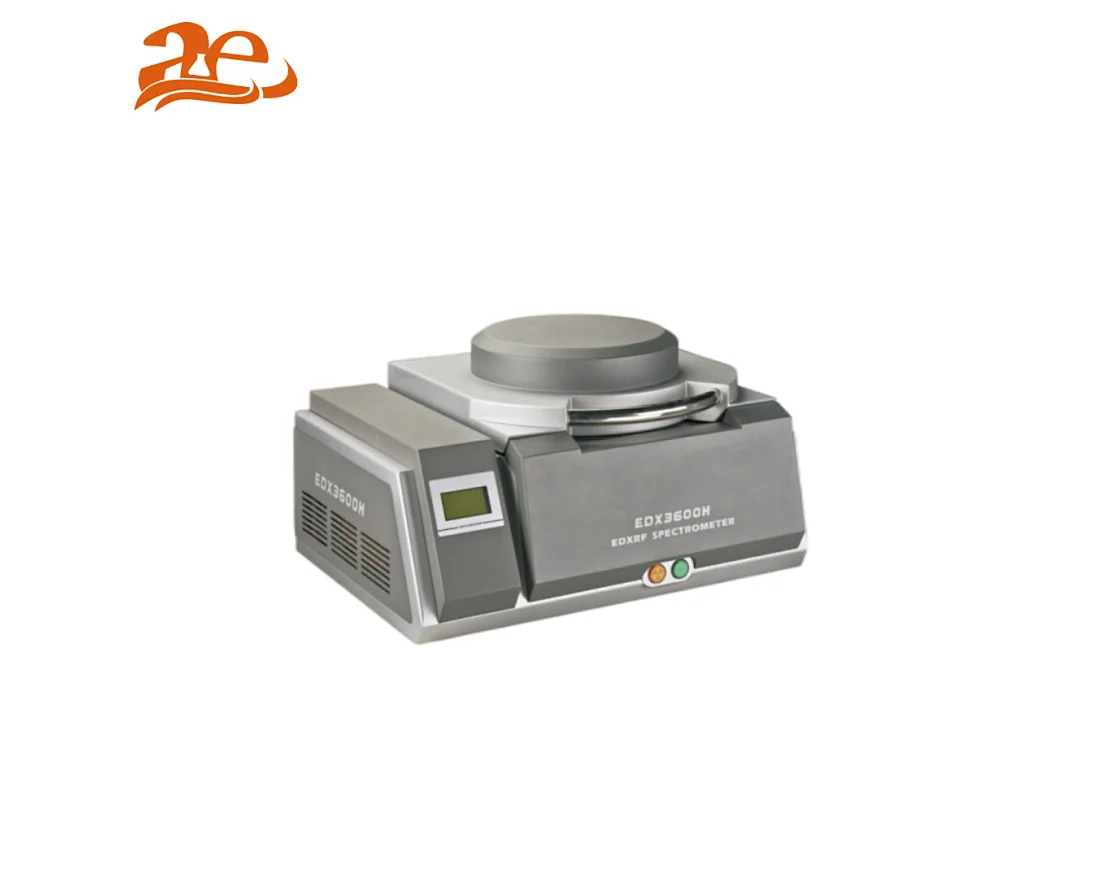

AELAB Alloy Analyzer Spectrophotometer AE-EDX3600H
+EDX3600H aly analyzer is developed for alloy testing
+It features high precision, fast testing speed and easy operation etc
+It has functions of qualitative and quantitative testing
+Testing samples include all alloy or metal components, from Na to U
+It features high precision, fast testing speed and easy operation etc
+It has functions of qualitative and quantitative testing
+Testing samples include all alloy or metal components, from Na to U
AE-EDX3600H
1
Quantity:
Alloy Analyzer Spectrophotometer AE-EDX3600H
Specialized in Alloy Testing:
Standard Configuration:
Performance Advantages:
Product Parameters:
Power: 200W
Voltage input AC 220V (Optional: 110V)
Ambient temperature: 15C-30'C
Ambient humidity: 35%-70%
Sample chamber size: 320mmx 100mm
Instrument dimension: 660mmx 510mmx350mm
Weight: 65Kg
Technical Specifications:
Measurable range: Na to U
Analytical range: ppm- 99.99% (ifrent materials, with different analytical range)
Simultaneous analysis: Testing tens of elements simultaneously
Precision: 0.05% (content 96%↑)
Testing time: 60s-200s
Resolution: (140+5)eV
Tube voltage: 5KV-50KV
Tube current: 50 u A-1000 u A
Test Case:
#spectrophotometer uv vis spectrophotometer
#alloy analyzer
#spectrophotometer aa
#spectrophotometer analysis
Specialized in Alloy Testing:
+EDX3600H aly analyzer is developed for alloy testing
+It features high precision, fast testing speed and easy operation etc
+It has functions of qualitative and quantitative testing
+Testing samples include all alloy or metal components, from Na to U
Standard Configuration:
+High eficient super-thin window x-ray light tube
+High-performance electronic cooling UHRD detector
+Signal-to-Noise Enhancer
+HD camera
+Colimator and filter
+Triple safty protection mode
+90mmx70mm LCD
+Vacuum Pump
Performance Advantages:
+High eficient super-thin window x-ray light tube, which is specially developed for alloy testing, reaches the international advanced level
+Silicon Drit Detector (SDD), provides better energy linearity, resolution, spectrum characteristics and higher peak/base ratio
+Skyray's patent- Signal-to-Noise Enhancer (SNE). improves the signal processing abilty by 25 times or more
+Builtin CMOS HD camera
+Automatic switch of ollimator and fiter according to dfferent samples, it eliminates the troublesome manual operation
+Triple x-ray protection design
(1)Machanical protection: segregate X-ray
(2)Electronical protection: Automatic shut-down of x-ray when opening the cover during testing
(3)Software protection: Automatic shut-down of software program when opening the cover during testing
+LCD screen directly shows the important parameters:! pipe pressure, pipe flow and vacuum degree
+2L vacuum pump
Product Parameters:
Power: 200W
Voltage input AC 220V (Optional: 110V)
Ambient temperature: 15C-30'C
Ambient humidity: 35%-70%
Sample chamber size: 320mmx 100mm
Instrument dimension: 660mmx 510mmx350mm
Weight: 65Kg
Technical Specifications:
Measurable range: Na to U
Analytical range: ppm- 99.99% (ifrent materials, with different analytical range)
Simultaneous analysis: Testing tens of elements simultaneously
Precision: 0.05% (content 96%↑)
Testing time: 60s-200s
Resolution: (140+5)eV
Tube voltage: 5KV-50KV
Tube current: 50 u A-1000 u A
Test Case:
| Element | Cu | Pb | Fe | Sn | Ai | Ni | Mn | Si |
| Content | 58.6531 | 3.007 | 0.3866 | 0.0002 | 0.2287 | 0.2297 | 0.0002 | 0.0019 |
| Element | Sb | Co | P | S | Zn | Bi | Cr | |
| Content | 0.0002 | 0.0008 | 0.0098 | 0.0005 | 37.013 | 0.3411 | 0.0052 |
