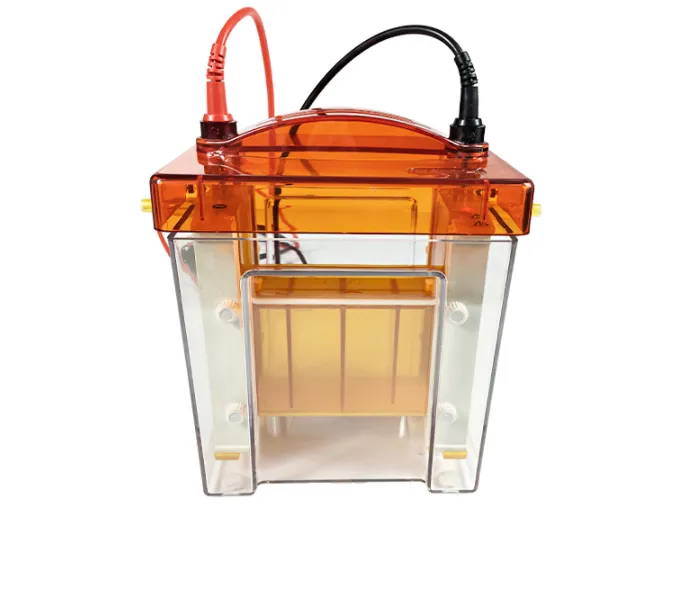

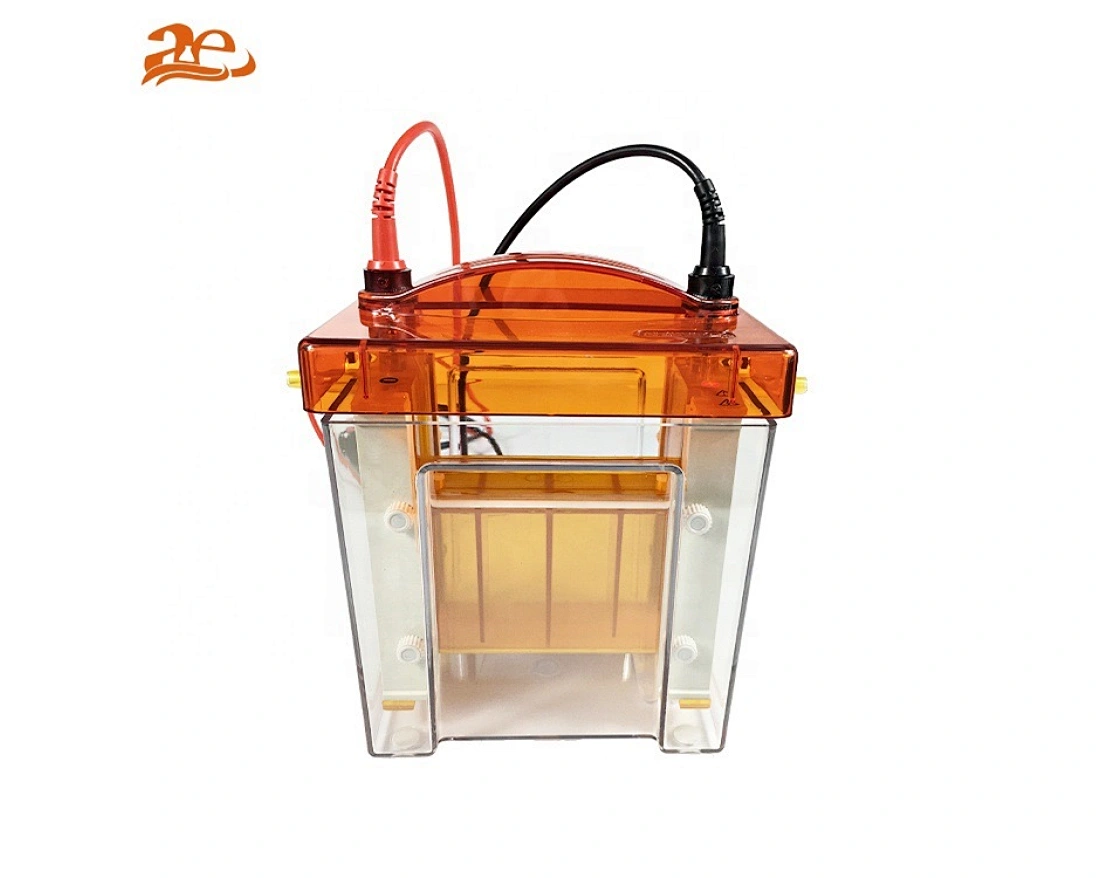

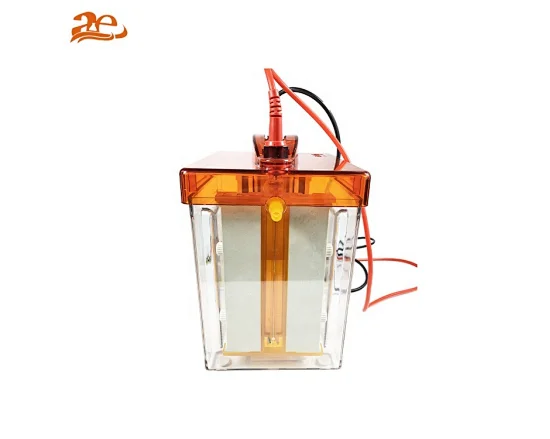

AELAB Gel Genomic DNA Protein Vertical Electrophoresis Tank AE-verMINI
Generally, Vertical gel electrophoresis is an ideal choice for DNA and RNA separation, while vertical systems are ideal for proteins.
AE-verMINI
Quantity:
AELAB Gel Genomic DNA Protein Vertical Electrophoresis Tank AE-verMINI

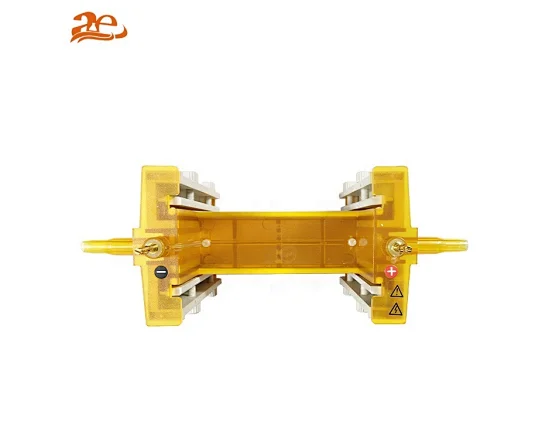

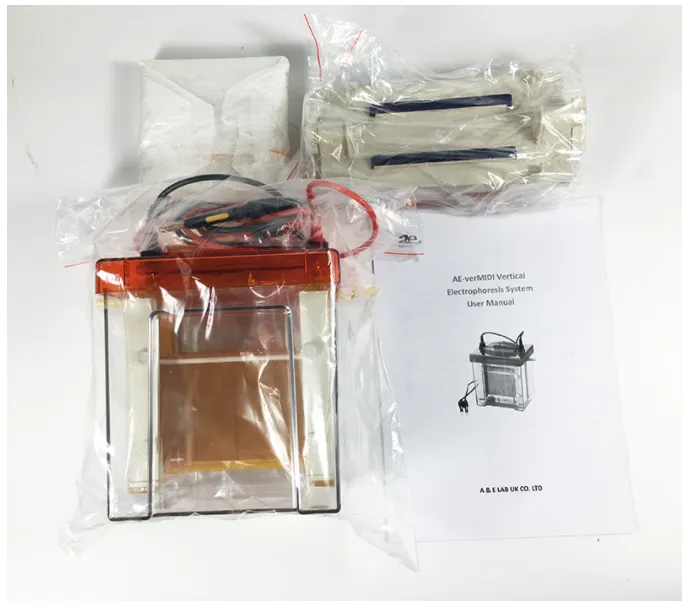

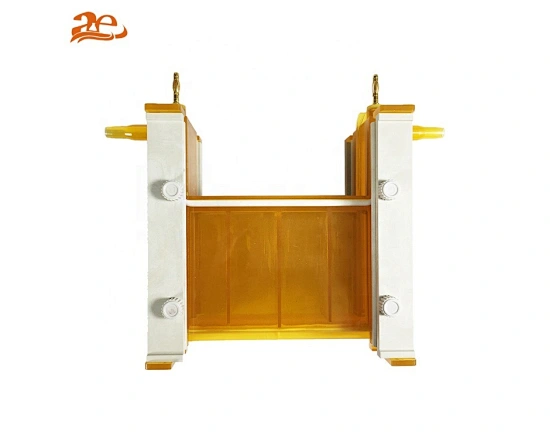

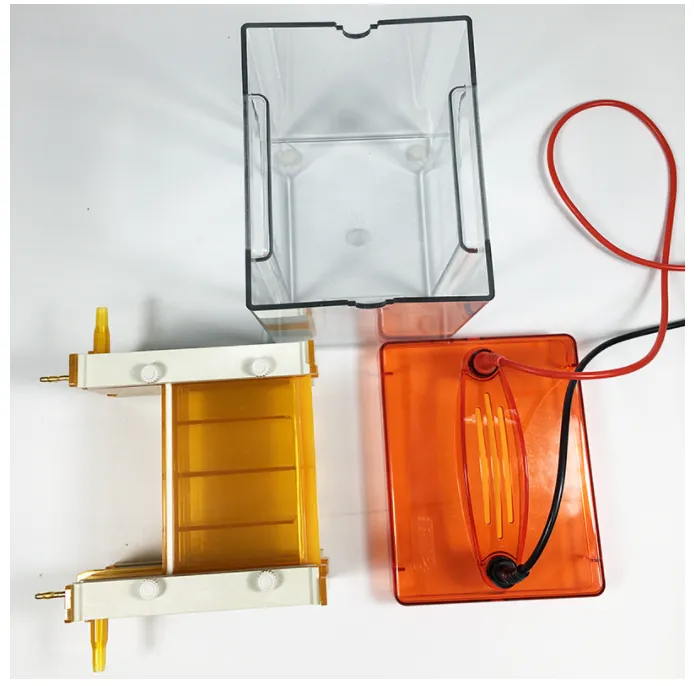

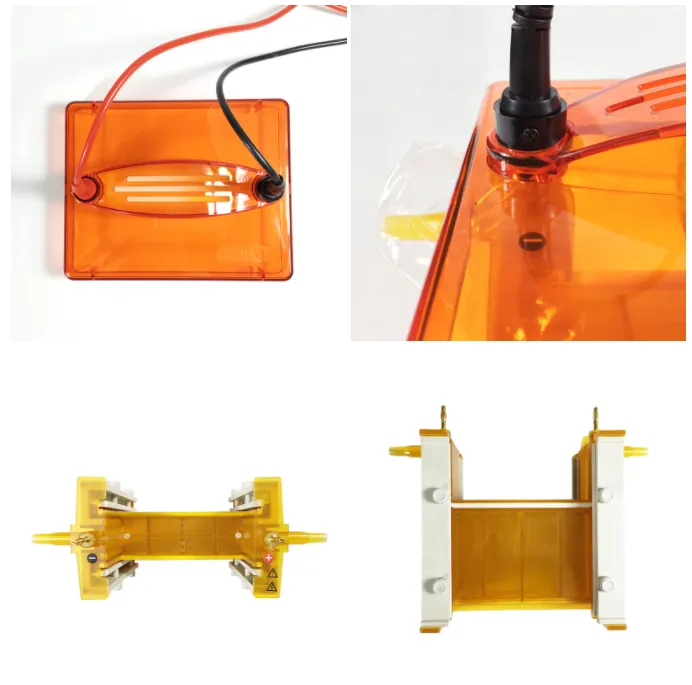

cell is dual vertical electrophoresis system performs vertical gel electrophoresis on mini-format gels. The basic unit includes electrophoresis modules, casting stand and glass plates with permanently bonded gel spacers that simplify hand casting and eliminate leaking during casting, Each module holds one gel sandwich, 10 cm wide and up to 10.5 cm long. One gel can be cast in place on each electrophoresis module.
cell is dual vertical electrophoresis system performs vertical gel electrophoresis on mini-format gels. The basic unit includes electrophoresis modules, casting stand and glass plates with permanently bonded gel spacers that simplify hand casting and eliminate leaking during casting, Each module holds one gel sandwich, 10 cm wide and up to 10.5 cm long. One gel can be cast in place on each electrophoresis module.
Generally, horizontal gel electrophoresis is an ideal choice for DNA and RNA separation, while vertical systems are ideal for proteins.
Technial Specifications:
Technial Specifications:
| Model | AE-verMINI |
| Dimensions ( LxWxH) | 160x150x160mm |
| Gel size (WxH) | Standard configuration: 83x97mm Optional: 83x73mm |
| Prefabricated plastic | Compatible with Pierce, Invitrogen and Bio-rad precast gels |
| Glue quantity | 1 to 2 |
| On slot buffer | 200ml |
| The following slot buffer | 800ml |
| Comb specifications | 1.0mm thick, 9, 10, 15 and 18 well;0.75mm thick,10 and 15 well; 1.5mm thick,10 and 15 well |
| Recommended Power | AE-Power600/600i/300 |
| Net weight | 2.5kg |
