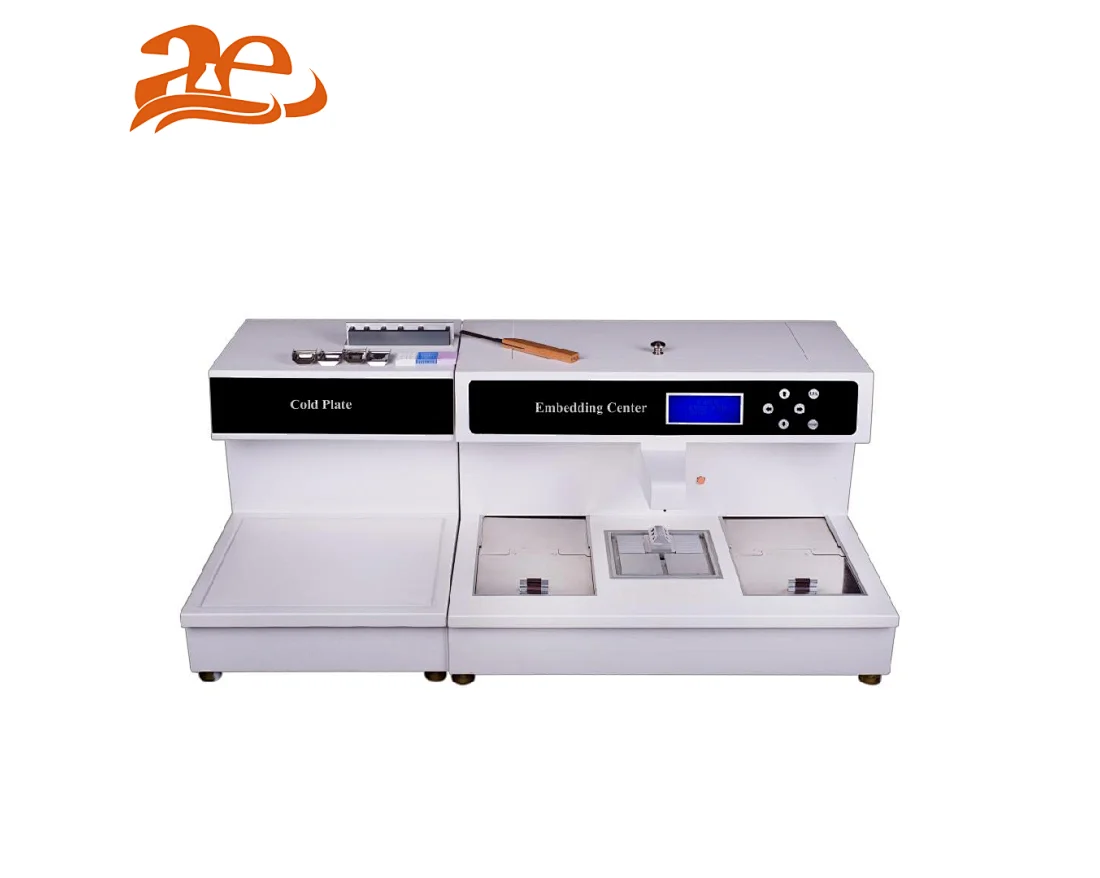

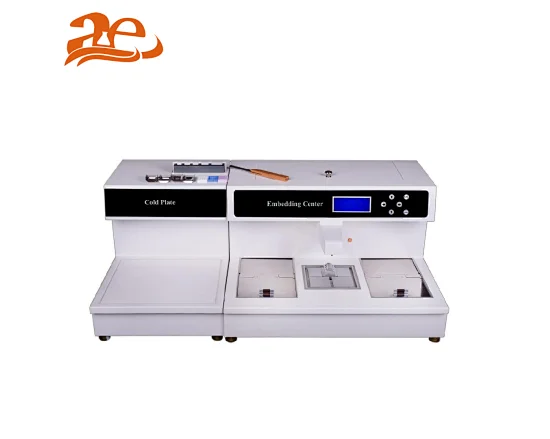

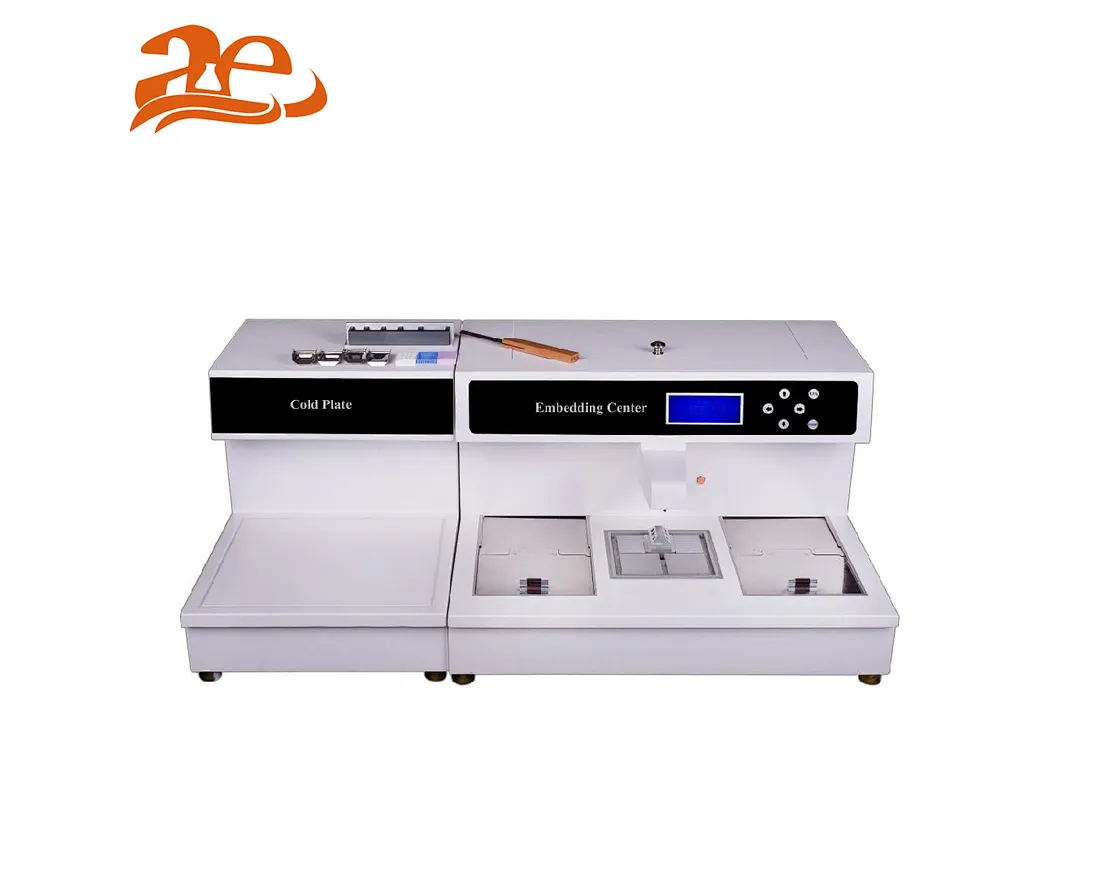

Tissue Embedding Center AE-6L (with Cold Plate )
It is designed for use in pathology laboratories and for embedding histological tissue samples only in molten paraffin for the following tasks: To embed the sample, melt the solid paraffin and keep the melted paraffin at the required temperature.
AE-6L
Quantity:
Tissue Embedding Center AE-6L (with Cold Plate )
It is designed for use in pathology laboratories and for embedding histological tissue samples only in molten paraffin for the following tasks: To embed the sample, melt the solid paraffin and keep the melted paraffin at the required temperature.
Features:
+The newest high technology and Button Panel Control, new type of heating material.
+The machine is made up of embedding machine, freezing part .the design can be flexibly selected between embedding machine and freezing part.
+Automated processor control system make it possible for presetting the start time and temperature of any day.
+Special nano technical make it heat up quickly and equably.
+The LCD display can show you the temperatures of the paraffin bath, thermostatic bath and paraffin nozzle. So the user can operator it easily.
+Inductive head lamp and metal switch ,user can touch the switch by tweezers or knifes to control the paraffin.
+Automatic memory the presetting temperatures and start to work based on the time.
+Large capacity paraffin bath can contain enough paraffin for use at one time.
+Multilevel security protection system.
+There are 3 heating hole for forceps in two side of the paraffin nozzle .
+Magnifying glass with lamp is optional accessory
+Collection drawer to collect paraffin from working table
Specification:
+Capacity of the paraffin bath : 6000 ml.
+Paraffin Bath/ hot reservoir /work stage/paraffin spout temperature range: 0 ~99℃ with individually temperature adjustable
+Freezing range temperature: 0 ~ -20℃
+Complete machine consuming more electricity: Less than 1KVA
+Control mode: Auto, foot
+About 120pcs of molds or 140pcs cassettes for each hot reservoir
+Capacity of Cold plate :About 40-60 pcs of Tissue Mold
+Environment temperature: 0℃~ 40℃
+Time control: Switch on and switch off time of the machine is set in 24 hours optionally.
+Nominal voltage: AC110V-220V±10％.
+Rated frequency:50Hz/60Hz
+Power consumption: (dispenser part)10A /1800W, (cold plate part)5A/ 130W
+Dimension: Embedding center (60x52x36.5cm), Cold plate (36x52x36.5cm)
+Gross /Net Weight: 65/35kg(for AE-6D) 110/65kg(for AE-6L)
Standard Accessory
+1 Foot Switch
+4 pcs Tissue Molds
+1 pc Power Wire
+2 pcs Fuse
OptionalAccessory
+Magnifying glass with lamp
+Paraffin
+Cassettes
