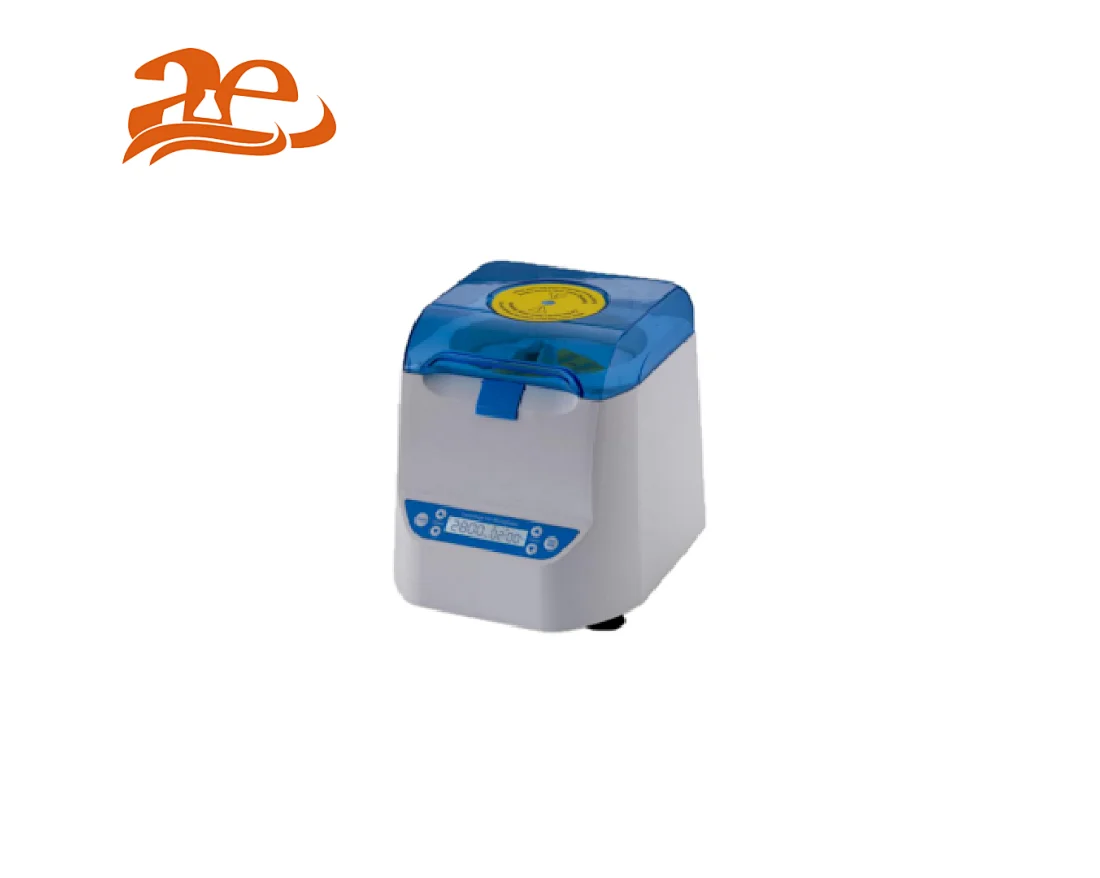

Tabletop Platelet Centrifuge TDD-3M
Product Introduction
Micro-plate Centrifuge TDD-3M is specially designed for the 96-hole micro plates. It can quickly spin down droplets and condensation.
Features
1.Wide applicable range. It suits for skirted, semi-skirted, non-skirted and all standard PCR plates.
2.Strong centrifugal power. Accelerate to 2800rpm quickly. From top speed to stop cost around 10 seconds.
3.Humanized design. Two modes 一press to operate or timer control 一make the experiments more convenient and efficient.
4.Smart size, simple operation. The cover can be fully opened to 95°,convenient to put and fetch the plates.
5.Quick spin down droplets and condensation. Used before and after thermal cycling to improve PCR yield.
Technical Parameters
Model | TDD-3M | Screen | LCD display | |
Max Speed | 3000r/min | Max RCF | 1880×g | |
Timer Range | 0~99min | Acceleration Rate | 1~9 grade | |
Deceleration Rate | 1~9 grade | Motor | Converter motor | |
Noise | ≤42dB(A) | Power Supply | AC220v/110V 50/60Hz 5A | |
Dimension | 410×320×210mm (L×W×H) | Weight | 19kg | |
Program | ||||
No.1 | 5:00mins | 650r/min | 150×g | |
No.2 | 5:00mins | 1300r/min | 528×g | |
