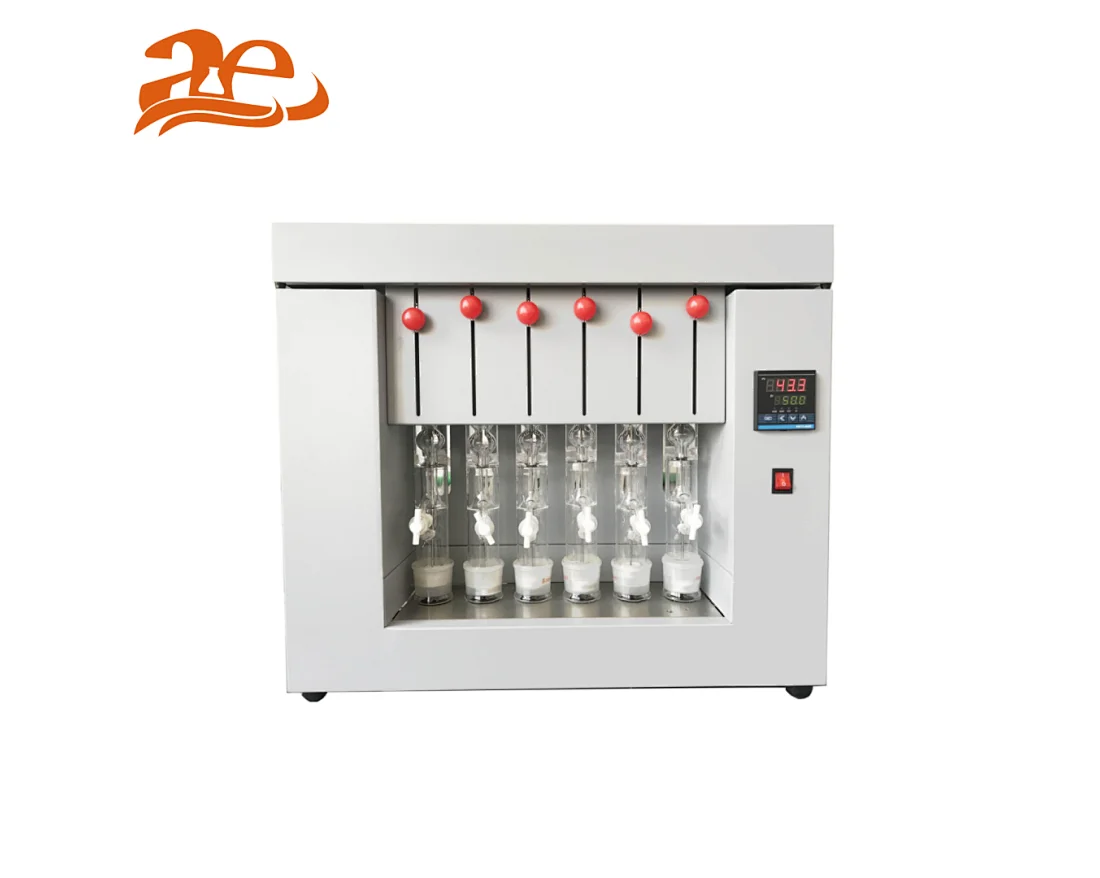

Soxhlet Extraction Fat Analyzer
Fat Analyzer tests fat content according to Soxhlet Extraction principle It features extraction, reagent recovery, cooling system and temperature controlling.
It is mainly used in agriculture, food, environment and industry. It mainly measures the determination of fat in food, oil, feed, grain and other samples.
Automatic Soxhlet Extractor, designed based on the Soxhlet extraction principle with weight method to determine the fat content. It has five extraction methods to meet different demands from the customer. The whole metal heating module, heating up fast, good effect, low power consumption; access to all-round water temperature, flow control, environmental protection more economical; built-in ether leak detection device to ensure experimental safety. It is widely used in agricultural/ food /chemical /environment and other areas, especially for the drug, soil, sludge, cleaner, and other substances in the extraction of soluble organic compounds.
Features:
+ Measuring range: oil content within the scope of 0.5%-60% of good, feed, oil and other fat products.
+ Measuring sample quantity: 6 simultaneously.
+ Heating time: within 10 min.
+ Recovery system: automatic.
+ Recovery rate: N80%.
+ Temperature controlling range: room temperature -100°C . Power: AC220V/50HZ, 1000W.
Technical Specifications:
Model | AE-SZF-06C |
Shape size | 670x250x600mm |
Weight | 23kg |
Difference | Even heating and automatic recycling, automatic soaking and extraction, save working time. |
