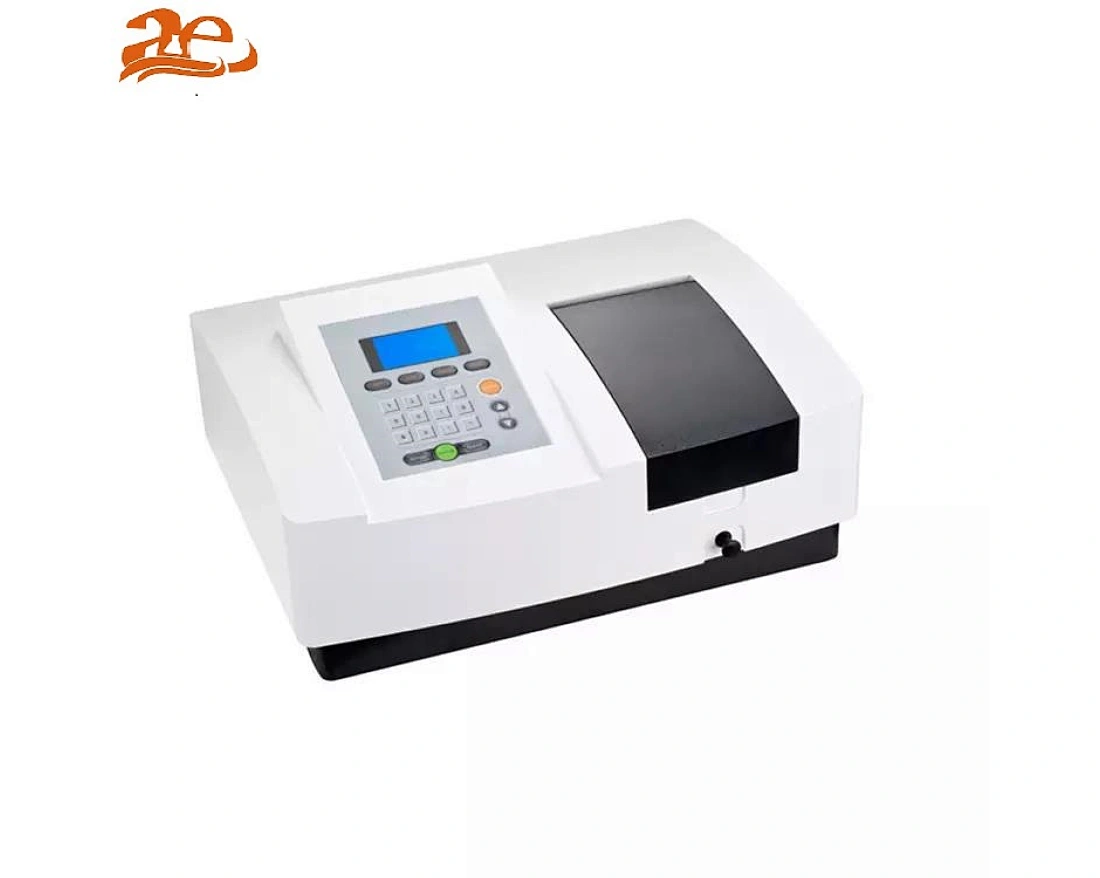

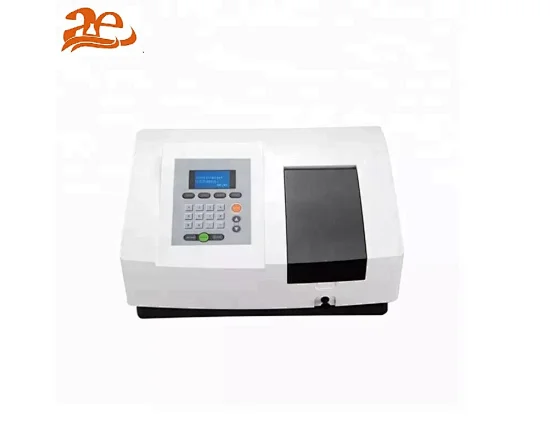

AELAB Single Beam Spectrophotometer AE-UV90
+It adopts 128*64-bit dot matrix LCD display, which can directly displa standard curve and tes data. The host can store test data, and print data with optional printer.
AE-UV90
Quantity:
AELAB Single Beam Spectrophotometer AE-UV90Description:
Feature:
It adopts 128*64-bit dot matrix LCD display, which can directly displa standard curve and tes data. The host can store test data, and print data with optional printer.
Specification:
Description:
Adopting128 * 64 digit dot matrix liquid crystal display, can directly display standard curve and test data that can be stored by the host, and with an optional printer USB data output interface.
Can establish standard curve directly, and can conduct related test with the standard curve, continuously test and store 200 sets of data, and can store 100 standard curves.
Unique optical system, 1200 pieces/ mm grating and imported receiver to ensure its sound performance;
.Automatic wavelength calibration and setting; automatic conversion of the light source, and automatic control of the switching of deuterium and tungsten lamp as well as the time of lamp lighting.
Large sample rooms that can accommodate 5-100mm cuvettes of all kinds Membrane keys, simple and convenient to operate.
Feature:It adopts 128*64-bit dot matrix LCD display, which can directly displa standard curve and tes data. The host can store test data, and print data with optional printer.
Specification:
| Model | AE-UV90 |
| Wavelength range | 190~1100nm |
| Spectral bandwidth | 2 nm |
| Wavelength accuracy | +/- 0.5 nmn |
| Wavelength repeatability | <= 0.2 nm |
Photometric accuracy | 0.3%T(00~100%T) |
| +/-0.002A(0~0.5A) | |
| +/-0.004A(0.5~1A) | |
| Photometric repeatability | <= 0.2%T |
| Stray light | <= 0.05%T @220 nm, 360nm |
| Stability | +/- 0.0001A/h @500nm |
| Baseline flatness | +/- 0.002A |
| Display modes | 128*64 large-screen LCD |
| Work mode | T, A, C |
| Scanning Speed | Fast, Medium, Slow |
| Wavelength setting method | Automatically |
| Display rang | 0-200%T, -0.3-3A |
| Detector | Imported silicon photo diode |
| Light source | Imported long-life tungsten lamp and Deuterium Lamp, |
| Keyboard | Membrane digital keyboard |
| Data output | USB Export |
| Analysis Software | Include |
| Power | AC220/50Hz or AC 110/60Hz |
| Weight | 19kg |
