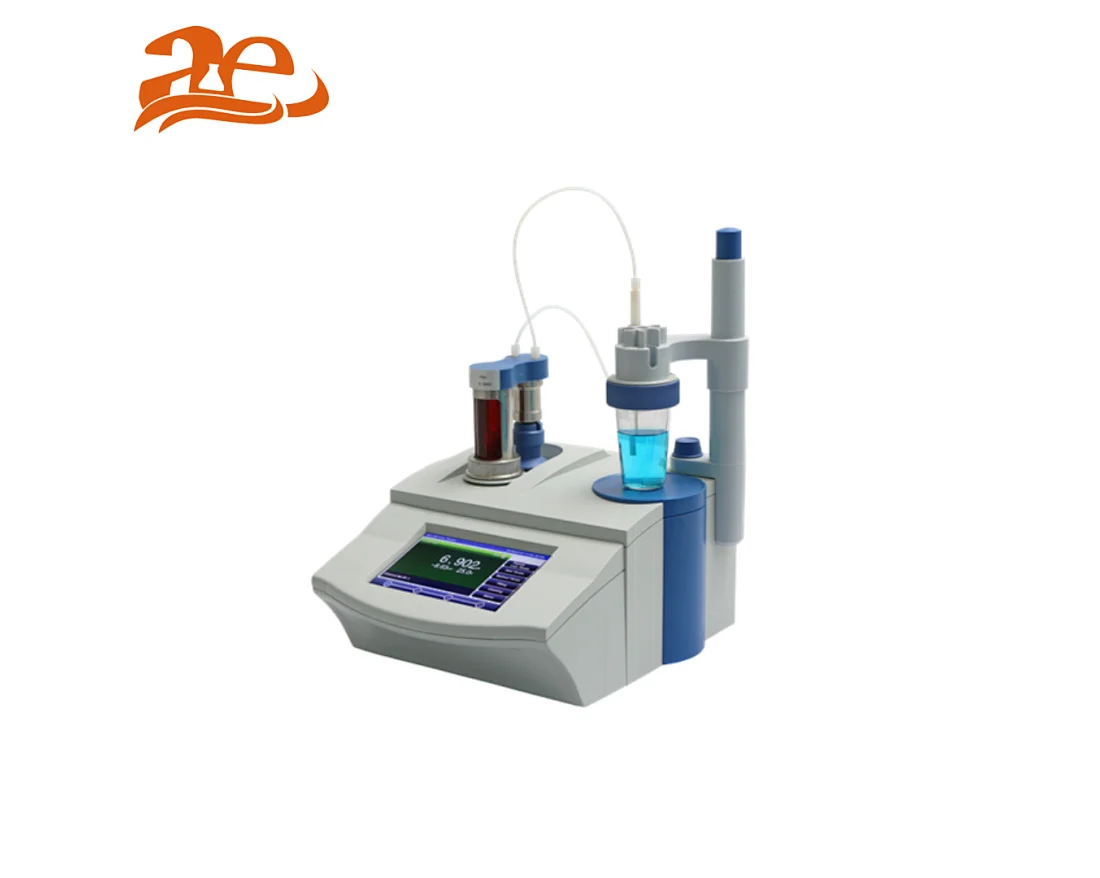

AELAB Potentiometric Titrator ZDJ-5B
Potentiometric titration is a common laboratory method for quantitative chemical analysis that is routinely used in the pharmaceutical industry.
ZDJ-5B
Quantity:
Potentiometric Titrator ZDJ-5B
Potentiometric titration is a common laboratory method for quantitative chemical analysis that is routinely used in the pharmaceutical industry.
Features:
+ 7” colorful touchscreen and smart guide system.
+ Titration methods, curves and results are displayed in detail.
+ Intelligent operation system provides features including user management, method management, electrode management, titrant management, data management, etc.
+ Support the following titration modes: DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Preset Endpoint Titration) and MAT (manual titration).
+ 1 extra burette driver can be installed (optional).
+ Replaceable burette with high-accuracy (10 ml or 20 ml selectable).
+ pH calibration and measurement are supported.
+ Up to 100 user-defined methods and 10 user-defined shortcuts.
+ Auto calculation with pre-defined formula.
+ Store up to 200 titration data sets (GLP-compliant).
+ Data analysis feature helps user review, compare and recalculate results.
+ Data can be easily transferred to printer via RS-232 communication interface..
+ Titrator can be controlled by computer via USB or RS-232 communication interface.
+ Automatic sampler is supported.
Technical Specifications:
Model | ZDJ-5B | |
Burette | Repeatability | 0.20% |
Accuracy | 10ml Burette: ±0.025ml;20ml Burette: ±0.035ml | |
Resolution | 10ml Burette: 1/20000;20ml Burette: 1/10000 | |
Mechanical Unit | Resolution | 1/30000 |
Charging speed | (55±10) s (Full burette) | |
Measuring Unit | Range | (-1999.0～1999.0) mv, (0.00～14.00)pH |
Resolutions | 0.1mV, 0.01pH | |
Accuracy | pH: ±0.01pH mv: ±0.03%FS | |
Fluctuation | (±0.3mV±1bit) /3h | |
Temp. Compensation | Range | (-5.0～105.0) ℃ |
Resolutions | 0.1 ℃ | |
Accuracy | ±0.3 ℃ | |
General | Power Supply | AC (220±22) V; (50±1) Hz |
Dimension (mm)& Weight (kg) | 340*400*400; 10 | |
