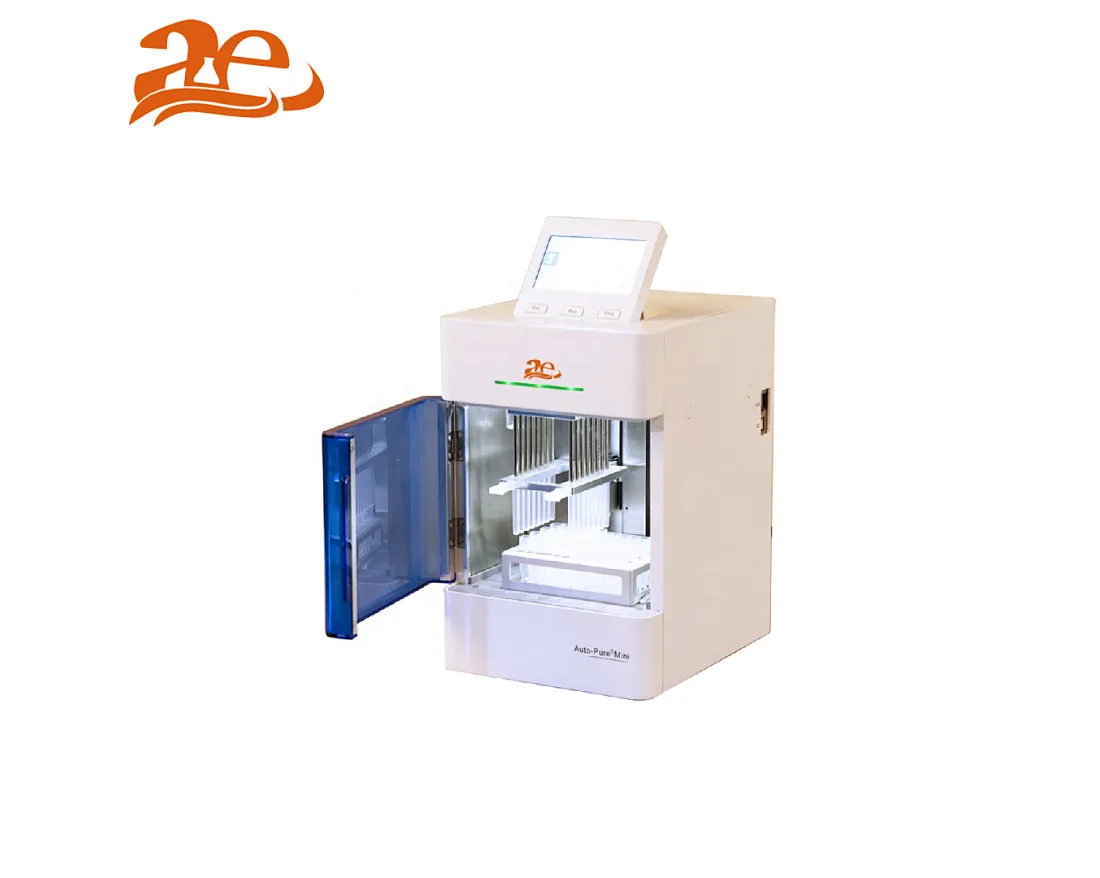

Auto-Pure Mini Nucleic Acid Purification System
Auto-Pure Mini automatic nucleic acid extractor is a product that is further miniaturized on the basis of the existing nucleic acid extractor.
The overall volume of the instrument is only about one-fourth of the common nucleic acid extractor on the market. Although the size of the instrument has been reduced, it has not shrunk in performance, meeting the extraction requirements of common nucleic acid extraction reagents. Moreover, the instrument has the function of unlimited data transmission. With the mobile phone APP, it can realize the remote editing and transmission of the instrument's program and real-time view of the running log.
Features:
*Simple and intelligent operation
1.Built-in lighting LED, real-time observation of the operating status of the instrument.
2.Graphical interface design makes the operation of the instrument easier.
3.Configure mobile phone APP software, edit, set, and manage programs more easily.
*Field experiment
1.Special design of the instrument, small size, easy to carry.
2.Support low power consumption mode, such as when the battery is used for power supply, the display will automatically stop when it is not used for a long time.
3.External power supply, DC24V/5A, allowing battery power supply.
*High-quality fast extraction
1.Up to 16PCS 1mL samples can be processed simultaneously.
2.The use of lead screw drive to achieve lifting movement, high precision.
3.UV sterilization function to reduce the contamination of samples between different batches.
*Open design, free editing of programs
1.Accurate temperature control of room temperature +5℃~120℃.
2.Open software design, simple setting can complete the program setting.
3.Complete software functions, suitable for all kinds of magnetic bead reagents.
4.Diversified mixing and magnetic absorption methods are conducive to reagent optimization.
5.Use the same consumables as Auto-Pure 32A, and the corresponding reagents can be used directly.
Technical Specifications:
Type | Auto-Pure Mini |
Throughput | 1~16 |
Processing volume | 20~1000μL |
Consumable | Special magnetic rod cover, 96 deepwell plate, special single sample kit |
Principle/working mode | Magnetic bead method, magnetic rod; method/up and down mixing |
Stability | CV≤3% |
Magnetic bead recovery rate | >95% |
Lysis temperature | Room temperature ~100℃ |
Elution temperature | Room temperature ~100℃ |
Shaking mode | Mixed mode of editing different needs |
Operation interface | 4.3 touch screen, 3 shortcut keys and external keyboard |
Internal procedures | Preset 6 groups of programs, can store 100 groups of programs |
Program management | New, edit, save as, delete |
Instrument port | Standard USB, Ethernet port, WiFi |
Lighting | Yes |
Purification&sterilization | Fan exhaustion, UV sterilization |
Size | 200x260x300mm |
Weight | 7kg |
