Multi-parameter Analyzer

The Multi-parameter analyzer can be widely used in urban or rural water supply plants, tap water pipeline networks, tap water secondary water supply, user taps, indoor swimming pools, Online monitoring of water quality such as large-scale water purification equipment and direct drinking water is an indispensable online.

AE-M600L

Quantity:

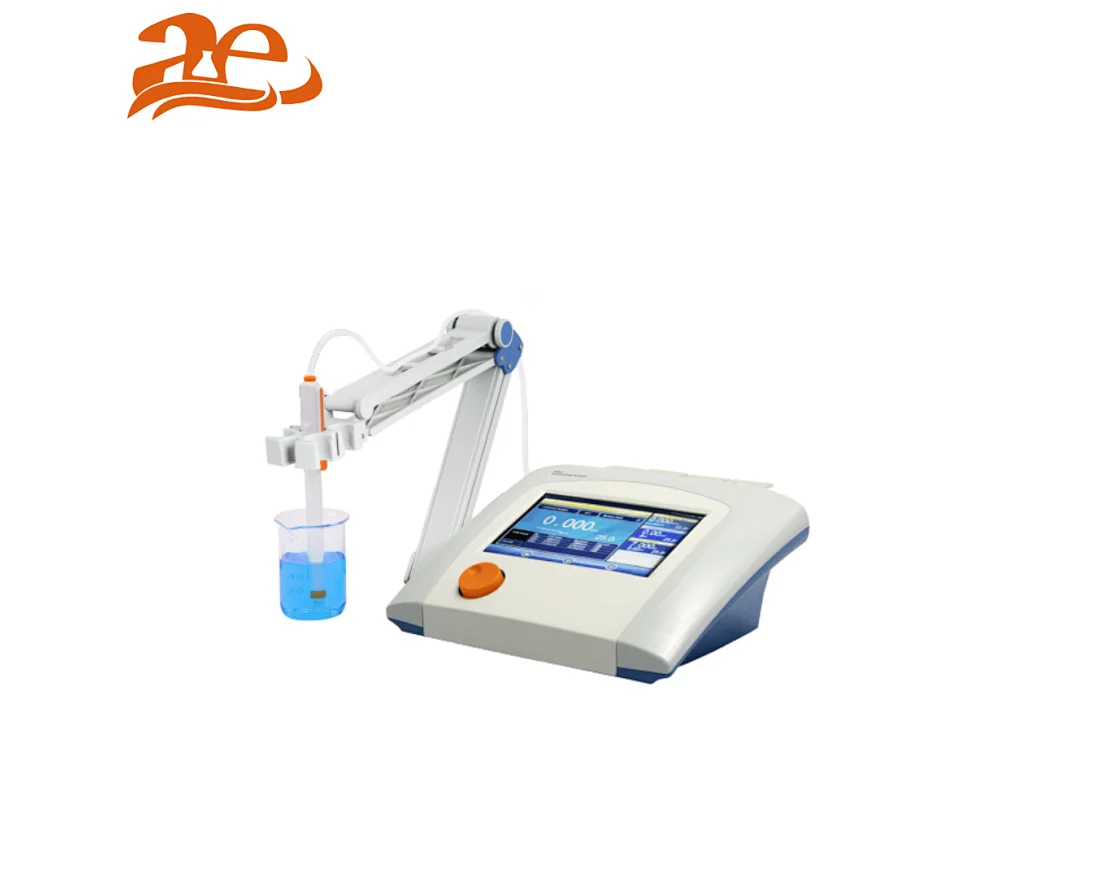

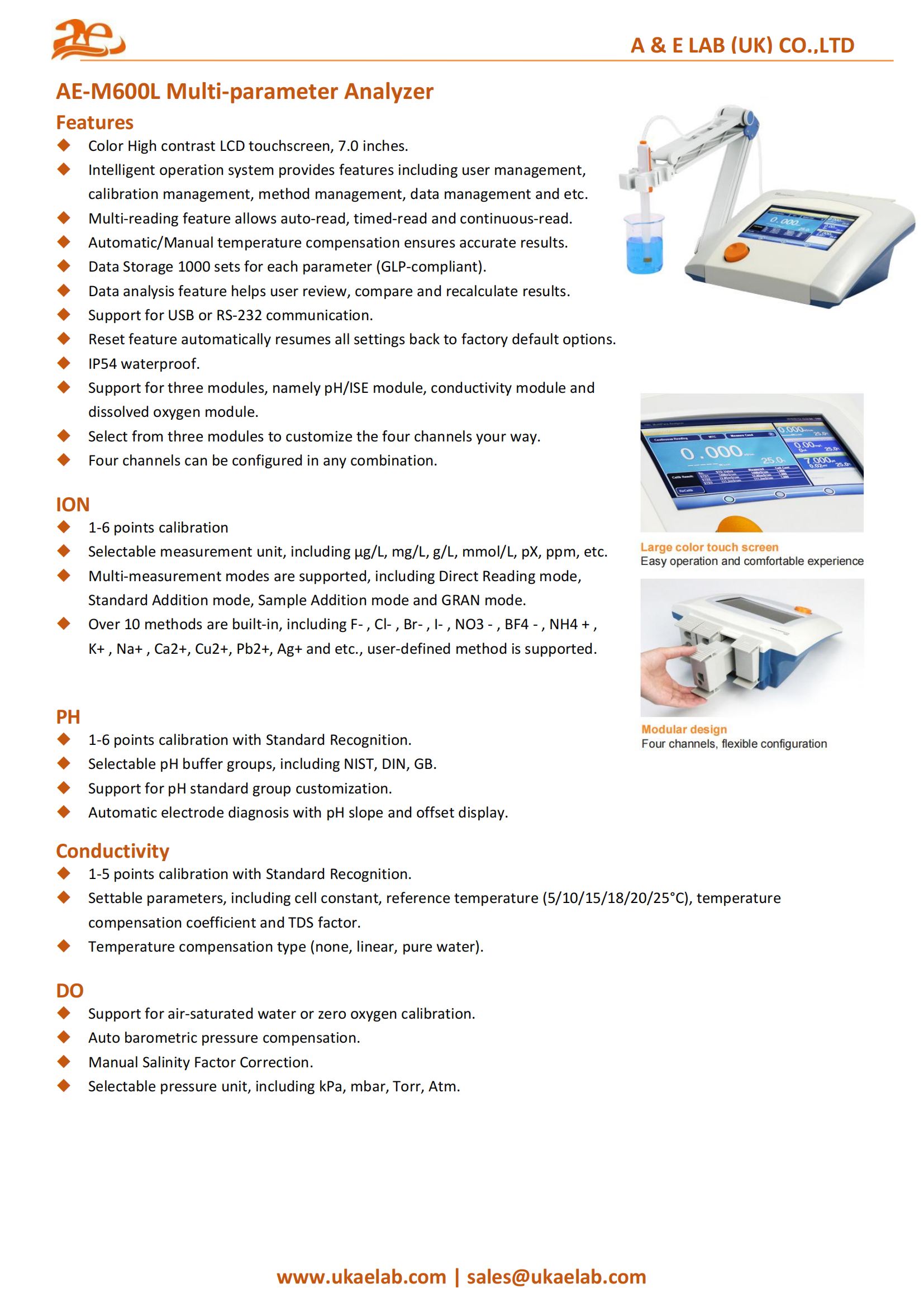

AE-M600L Multi-parameter Analyzer

Features

+Color High contrast LCD touchscreen, 7.0 inches.

+Intelligent operation system provides features including user management, calibration management, method management, data management and etc.

+Multi-reading feature allows auto-read, timed-read and continuous-read.

+Automatic/Manual temperature compensation ensures accurate results.

+Data Storage 1000 sets for each parameter (GLP-compliant).

+Data analysis feature helps user review, compare and recalculate results.

+Support for USB or RS-232 communication.

+Reset feature automatically resumes all settings back to factory default options.

+IP54 waterproof.

+Support for three modules, namely pH/ISE module, conductivity module and dissolved oxygen module.

+Select from three modules to customize the four channels your way.

+Four channels can be configured in any combination.

ION

+1-6 points calibration

+Selectable measurement unit, including μg/L, mg/L, g/L, mmol/L, pX, ppm, etc.

+Multi-measurement modes are supported, including Direct Reading mode, Standard Addition mode, Sample Addition mode and GRAN mode.

+Over 10 methods are built-in, including F- , Cl- , Br- , I- , NO3 - , BF4 - , NH4 + , K+ , Na+ , Ca2+, Cu2+, Pb2+, Ag+ and etc., user-defined method is supported.

+1-6 points calibration with Standard Recognition.

+Selectable pH buffer groups, including NIST, DIN, GB.

+Support for pH standard group customization.

+Automatic electrode diagnosis with pH slope and offset display.

Conductivity

+1-5 points calibration with Standard Recognition.

+Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.

+Temperature compensation type (none, linear, pure water).

+Support for air-saturated water or zero oxygen calibration.

+Auto barometric pressure compensation.

+Manual Salinity Factor Correction.

+Selectable pressure unit, including kPa, mbar, Torr, Atm.

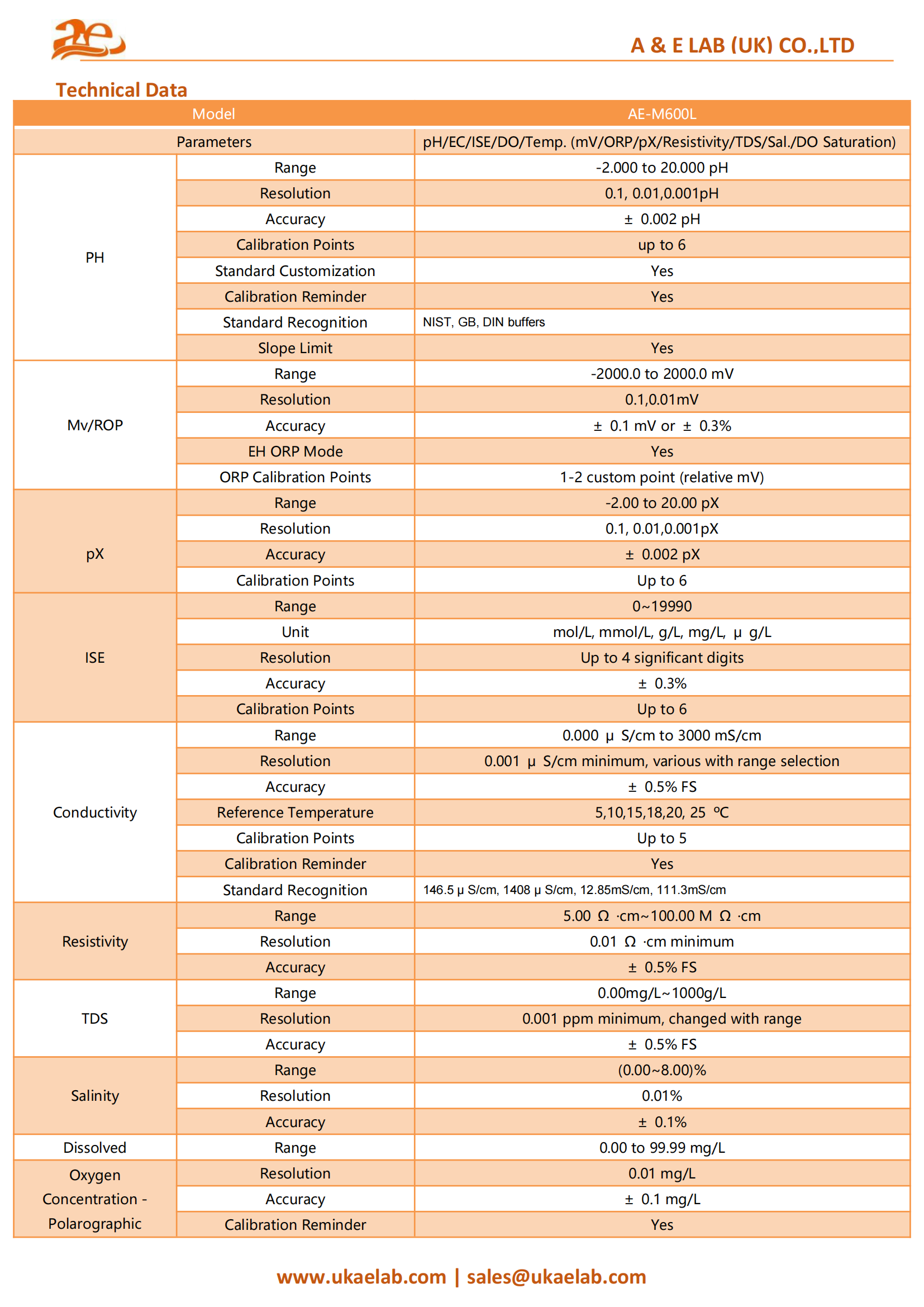

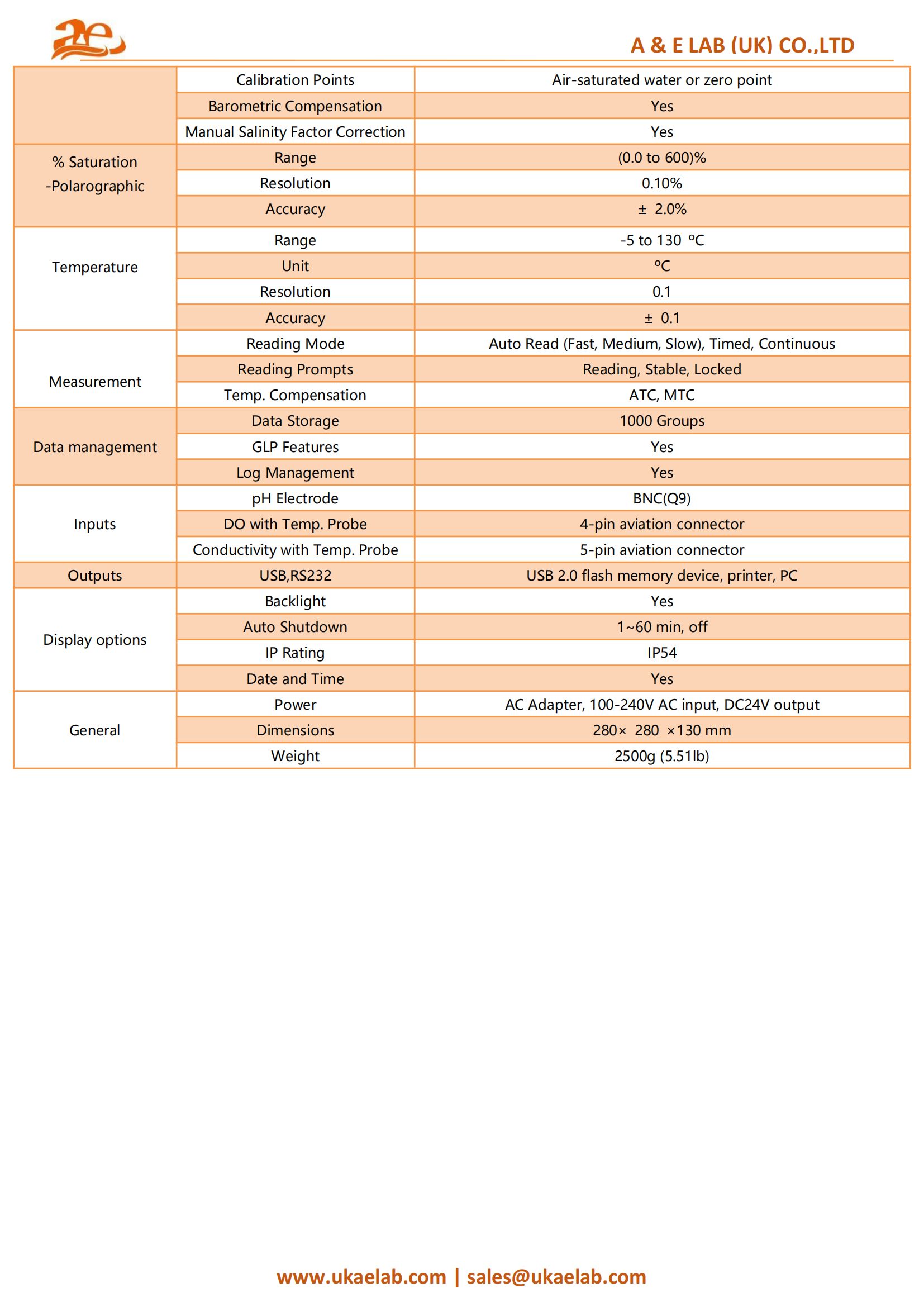

Technical Data

Model		AE-M600L
Parameters		pH/EC/ISE/DO/Temp. (mV/ORP/pX/Resistivity/TDS/Sal./DO Saturation)
PH	Range	-2.000 to 20.000 pH
	Resolution	0.1, 0.01,0.001pH
	Accuracy	± 0.002 pH
	Calibration Points	up to 6
	Standard Customization	Yes
	Calibration Reminder	Yes
	Standard Recognition	NIST, GB, DIN buffers
	Slope Limit	Yes
Mv/ROP	Range	-2000.0 to 2000.0 mV
	Resolution	0.1,0.01mV
	Accuracy	± 0.1 mV or ± 0.3%
	EH ORP Mode	Yes
	ORP Calibration Points	1-2 custom point (relative mV)
pX	Range	-2.00 to 20.00 pX
	Resolution	0.1, 0.01,0.001pX
	Accuracy	± 0.002 pX
	Calibration Points	Up to 6
ISE	Range	0~19990
	Unit	mol/L, mmol/L, g/L, mg/L, μ g/L
	Resolution	Up to 4 significant digits
	Accuracy	± 0.3%
	Calibration Points	Up to 6
Conductivity	Range	0.000 μ S/cm to 3000 mS/cm
	Resolution	0.001 μ S/cm minimum, various with range selection
	Accuracy	± 0.5% FS
	Reference Temperature	5,10,15,18,20, 25 ºC
	Calibration Points	Up to 5
	Calibration Reminder	Yes
	Standard Recognition	146.5 μ S/cm, 1408 μ S/cm, 12.85mS/cm, 111.3mS/cm
Resistivity	Range	5.00 Ω ·cm~100.00 M Ω ·cm
	Resolution	0.01 Ω ·cm minimum
	Accuracy	± 0.5% FS
TDS	Range	0.00mg/L~1000g/L
	Resolution	0.001 ppm minimum, changed with range
	Accuracy	± 0.5% FS
Salinity	Range	(0.00~8.00)%
	Resolution	0.01%
	Accuracy	± 0.1%
Dissolved	Range	0.00 to 99.99 mg/L
Oxygen Concentration - Polarographic	Resolution	0.01 mg/L
	Accuracy	± 0.1 mg/L
	Calibration Reminder	Yes
	Calibration Points	Air-saturated water or zero point
	Barometric Compensation	Yes
	Manual Salinity Factor Correction	Yes
% Saturation -Polarographic	Range	(0.0 to 600)%
	Resolution	0.10%
	Accuracy	± 2.0%
Temperature	Range	-5 to 130 ºC
	Unit	ºC
	Resolution	0.1
	Accuracy	± 0.1
Measurement	Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
	Reading Prompts	Reading, Stable, Locked
	Temp. Compensation	ATC, MTC
Data management	Data Storage	1000 Groups
	GLP Features	Yes
	Log Management	Yes
Inputs	pH Electrode	BNC(Q9)
	DO with Temp. Probe	4-pin aviation connector
	Conductivity with Temp. Probe	5-pin aviation connector
Outputs	USB,RS232	USB 2.0 flash memory device, printer, PC
Display options	Backlight	Yes
	Auto Shutdown	1~60 min, off
	IP Rating	IP54
	Date and Time	Yes
General	Power	AC Adapter, 100-240V AC input, DC24V output
	Dimensions	280× 280 ×130 mm
	Weight	2500g (5.51lb)
