AELAB Mini Real Time PCR Fast Nucleic Acid Testing
Real-time PCR/qPCR assays have become the tool of choice for the rapid and sensitive determination and quantitation of nucleic acid in various biological samples, with diverse applications such as gene expression analysis, the detection of genetically modified organisms in food, and cancer phenotyping.
Mini Real Time PCR
Quantity:
AELAB Mini Real Time PCR Fast Nucleic Acid Testing
Designed for rapid nucleic acid testing meed in applied fields such as clinical, food, environmental and research. It is supported by high sensitive fluorescence measurements made in real time.
It can detect 16 samples at the same time., and the standard configuration is FAM/SYBR, VIC two-color fluorescence channels.
Designed for rapid nucleic acid testing meed in applied fields such as clinical, food, environmental and research. It is supported by high sensitive fluorescence measurements made in real time.
It can detect 16 samples at the same time., and the standard configuration is FAM/SYBR, VIC two-color fluorescence channels.
Real-time PCR/qPCR assays have become the tool of choice for the rapid and sensitive determination and quantitation of nucleic acid in various biological samples, with diverse applications such as gene expression analysis, the detection of genetically modified organisms in food, and cancer phenotyping.
Features:

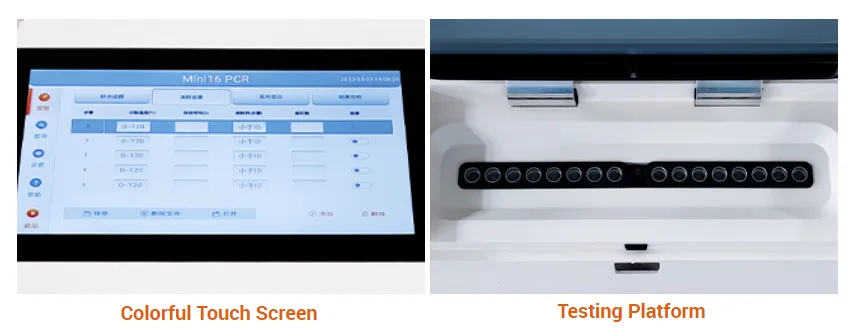

+ On board software with large screen panel, easy for use:7-inch color touch screen shows all parameters, test results and real time testing curve.
+ Portable and light : the weight is only 4kg. It can be used with vehicle power supply for immediate on-site detection.
+ Sensitive and efficient optical signal detection system, multi-channel fluorescence without crosstalk: based on unique Fresnel lens, high-efficiency PMT and maintenance-free LED. 16-hole scanning takes only 1s.
+ Compatible with 0.2mL PCR transparent tubes or eight stripes, can measure 16 samples at a time.
+ Ultra-fast temperature control system: unique liquid circulation refrigeration.
+ Software functions can be customized.
+ 4G data memory. Testing results can be exported with USB or printed.
Technical Specifications:
Features:
+ On board software with large screen panel, easy for use:7-inch color touch screen shows all parameters, test results and real time testing curve.
+ Portable and light : the weight is only 4kg. It can be used with vehicle power supply for immediate on-site detection.
+ Sensitive and efficient optical signal detection system, multi-channel fluorescence without crosstalk: based on unique Fresnel lens, high-efficiency PMT and maintenance-free LED. 16-hole scanning takes only 1s.
+ Compatible with 0.2mL PCR transparent tubes or eight stripes, can measure 16 samples at a time.
+ Ultra-fast temperature control system: unique liquid circulation refrigeration.
+ Software functions can be customized.
+ 4G data memory. Testing results can be exported with USB or printed.
Technical Specifications:
| Mini Real Time PCR | |
| Sample capacity | 2×8 0.2ml tube/strips, clear |
| Reaction volume | 10-50μl |
| Touch screen | YES |
| Thermal cycle technology | Peltier, liquid circulation refrigeration |
| Max. Heating/Cooling rate | 6.0°C/s |
| Heating temperature range | 4 – 100 °C |
| Temperature accuracy | ±0.2°C |
| Temperature uniformity | ±0.2℃ @60℃ ±0.3℃ @95℃ |
| Excitation light source | Monochrome high efficiency LED |
| Detection device | PMT |
| Detection mode | Fast hole-by-hole scanning |
| Fluorescent channels | Standard: FAM/ SYBR, VIC/HEX/ TET |
| Optional: ROX, CY5/TAMRA | |
| Sensitivity | Single copy gene |
| Dynamic range | 10 orders of magnitude copies |
| Analysis mode | CT value analysis, absolute quantitative analysis |
| Dimension [W×D×H] | 205×190×98mm |
| Power Supply | 100-240V or Optional 12V, 10A mobile power |
| Weight | 4kg |
