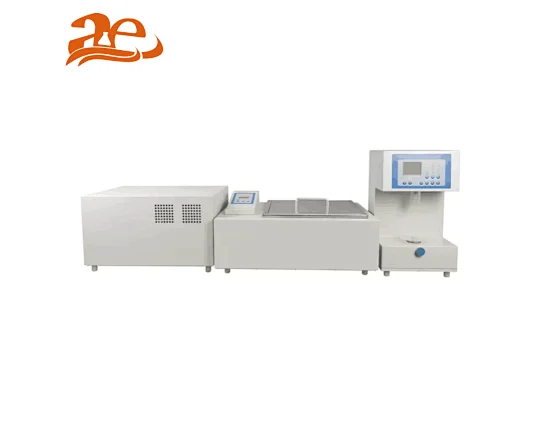

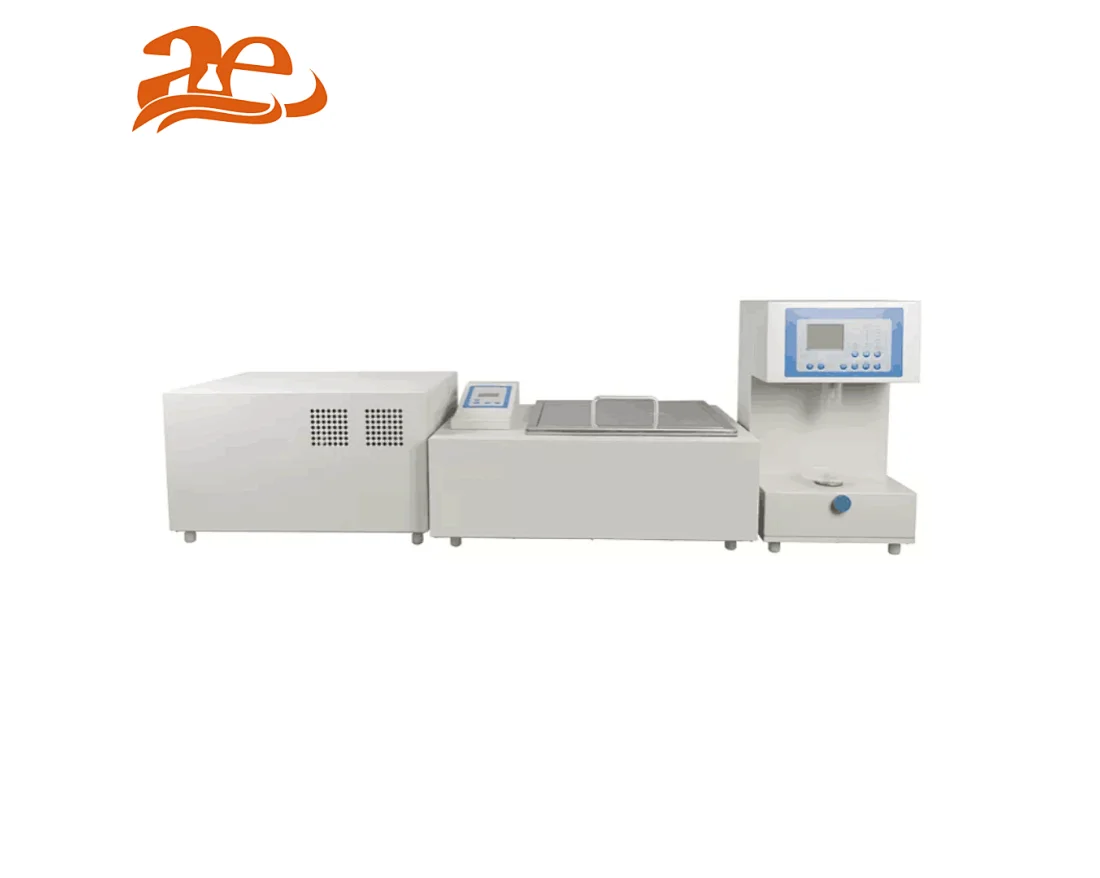

AELAB Gelatin Gel Strength Test System
Gelatin Gel strength test system is mainly used to measure the gel strength of gelatin under the stipulated environment. It consists of: Jelly Strength, Constant Temperature Bath, Refrigerator.
AE-JS-II
Quantity:
Gelatin Gel strength test system
Gelatin Gel strength test system is mainly used to measure the gel strength of gelatin under the stipulated environment. It consists of: Jelly Strength, Constant Temperature Bath, Refrigerator.
Advantage
+ High-definition LCD Display.
+ Powerful data processing ability: submit mean value, final value or peak value automatically.
+ Four kinds of sampling measurement modes: single-step, maintaining, circulating and automatic.
+ Automatic measurement mode can help you obtain the value of gel strength faster, more accurately and more realistically.
+ 5 kinds of sampling speeds: 0.1mm/s, 0.2mm/s, 0.5mm/s, 1mm/s and 2mm/s.
+ Sampling depth can be preset arbitrarily (1~60mm).
+ Professional high-precision pressure sensor.
+ High-precision mechanical drive matches with 4-class shockproof design
+ Automatic correction of non-linear error, automatic fault diagnosis alarm, automatic outrange protection and automatic error correction prompt.
Specification
Model | AE-JS-II |
Test Range | 5~1000 Bloomg |
Test Accuracy Range | ±0.3% |
Resolution | 1Bloomg |
Travel | 1~60mm |
Travel Accuracy | ≤±0.1mm |
Measured Diameter of Cylinder | 12.700±0.010mm |
Standard Gel Strength Bottle(diameter*height) | 59*85mm, 150ml |
Consumption | 60W |
Power Supply | AC110/220V±10%, 50/60Hz |
Overall Dimensions(L*W*H)mm | 260*260*450 |
Packing Size(L*W*H)mm | 405*360*530 |
Gross Weight(kg) | 12 |
