AELAB Gas Chromatograph GC102AF
The pharmaceutical industry uses gas chromatography to help produce pure products in large quantities. The method is used to ensure the purity of the produced material, eliminated inconsistencies in pharmaceutical products. The industry also uses gas chromatography to analyze compounds to check for trace contaminants.
AE-GC102AF
Quantity:

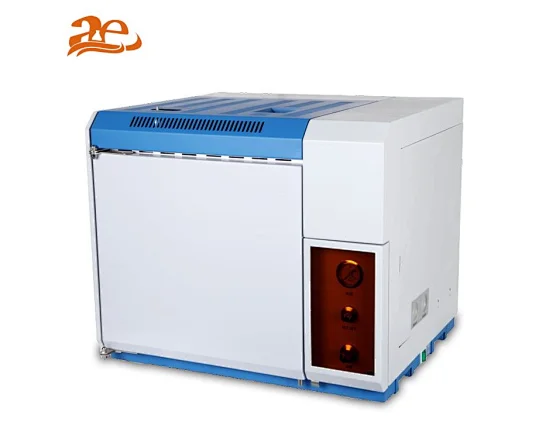

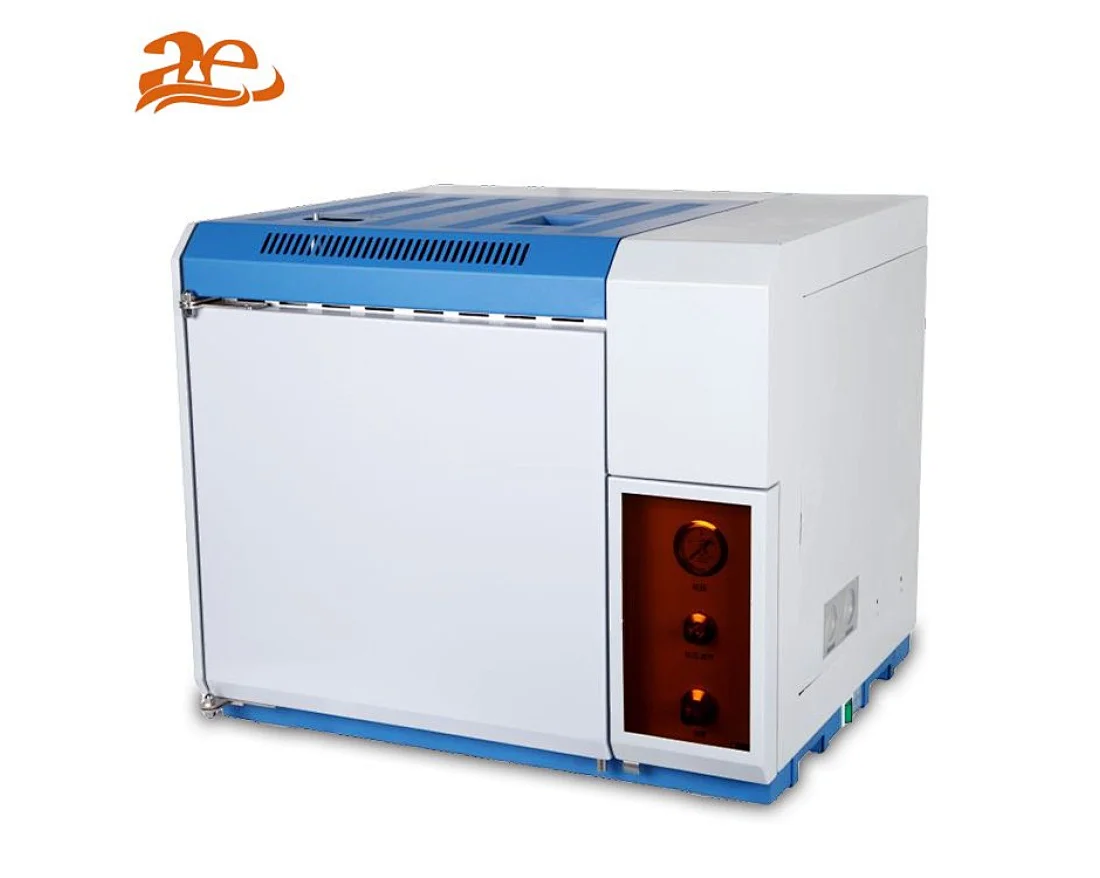

Gas Chromatograph GC102AF
As a new generation instrument, GC102AF Gas Chromatograph applies the computer reverse control technology and canconduct remote detection and fault diagnosis, equipped with a flame ionization detector (FID).
As a new generation instrument, GC102AF Gas Chromatograph applies the computer reverse control technology and canconduct remote detection and fault diagnosis, equipped with a flame ionization detector (FID).
The pharmaceutical industry uses gas chromatography to help produce pure products in large quantities. The method is used to ensure the purity of the produced material, eliminated inconsistencies in pharmaceutical products. The industry also uses gas chromatography to analyze compounds to check for trace contaminants.
Features:
Features:
+PC control, user-friendly interface, and easy to operate.
+Temperature control is of high accuracy (better than ±0.1℃). Heating speed is fast and overshoot temperature is small.
+Self-diagnosis, power protection, oven over-temperature protection, and automatic ignition.
+It can accurately display the temperature control settings, actual value, and FID amplifier sensitivity.
+The single gas system and precise scale pneumatic control valve contribute to excellent reproducibility and stability and can perform analysis of packed column.
+Packed column: on-column injection, instantaneous vaporization injection, gas injection.
+Open computer system and NJ2000 chromatography workstation can work together to process data.
+Large capacity oven (300mm×280mm×270mm) facilitates the installation of packed column.
+Built-in heating wire structure
Temperature Control:
+Temperature area: column oven, sampler, detector
+Temperature range: 15℃ ~399℃ above room temperature (increment: 1℃)
+Temperature accuracy: better than ±0.1℃ (measured at 200℃)
Flame Ionization Detector (FID) :
+Detection limit: Dt≤1×10-10 g/s (octane and hexadecane)
+Baseline drift: ≤2×10-12 A/h
+Linear range: ≥106
+Max. limit temperature: 400℃
+Voltage: 220V~±22V 50Hz±0.5Hz
+Power: ≤1500W
+Package size: 945mm×655mm×750mm
+G.W.:70kg
Optional Accessories
+N2000 chromatography workstation
+Packed column
