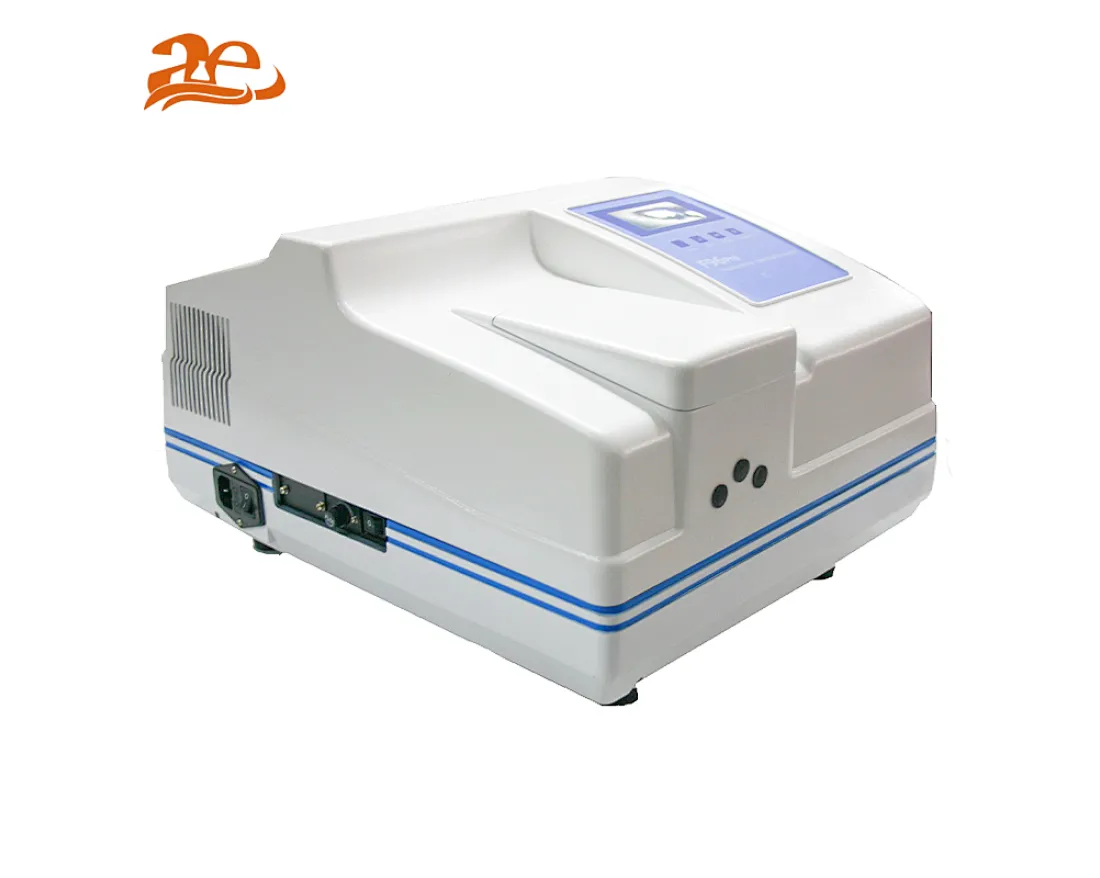

AELAB Fluorescence Spectrophotometer F96PRO
Fluorescence spectrophotometry is also utilised in numerous industrial and environmental applications, including water analysis, food safety and quality management, and forensic science
F96PRO
Quantity:
AELABFluorescence Spectrophotometer F96PRO
Fluorescence spectrophotometry is also utilised in numerous industrial and environmental applications, including water analysis, food safety and quality management, and forensic science .
Fluorescence spectrophotometry is also utilised in numerous industrial and environmental applications, including water analysis, food safety and quality management, and forensic science .
Features
+Two operation mode could be chosen: fluorescence intensity and luminous intensity. Fluorescence scanning, kinetic determination and quantity analysis could be done under fluorescence intensity mode.
+365nm exciting wavelength Raman peak of water in 1 cm quartz fluorescence cuvette S/N≥150 High performance sensitivity simplifies the measurement of low detective sample.
+10 stages gain adjustment could be chosen for emission spectrum scanning, including high speed low S/N scanning and precise scanning. Total spectrum scanning could be done in 1 second. With the intelligent pre scanning feature, unknown sample's spectrum information could be detected rapidly. Auto-omission of the influence of scattering peak and harmonic peaks, it ensure the best measurement parameters and locate the fluorescence emission peak.
+Support off-line mode and on-line mode. Under off-line mode, instrument's computer system offer the fluorescence intensity measurement, concentration direct reading, auto 0 adjustment, auto background subtraction and etc. Under on-line mode, we could use quality and quantity software to control data acquisition and analysis through USB2.0 interface.
+High stable and long life 150W xenon lamp and power source ensure high stable testing and wide range of spectrum.
+The normalized feature for fluorescence value could make different fluorescence's result comparable.
+Provide optional PC qualitative and quantitative software package with expansible time scanning, wavelength scanning, graphic calculation and storage-access abilities。
+Optional accessories for different measurement, including single hole cell holder, fluorescence sample holder for different features, 200μl micro scale centrifuge tube, micro scale capillary sample holder, semi-auto sample introduction accessories, membrane sample accessories, powder sample accessories, jacket sample accessories and etc.
| Main instrument | 1 set |
| 365nm filter(Preassembled) | 1 pc |
| F96PRO software package | 1 set |
| Power cable | 1 pc |
| USB wire | 1 pc |
| Instruction manual | 1 copy |
| Product quality certificate | 1 copy |
| Fuse（2A） | 2 pcs |
| Fuse（5A） | 2 pcs |
| Quartz fluorescence sample cell10mm | 1 pair |
| Packing list | 1 copy |
Technical Specifications:
| Dimension LWH | 550×510×365 |
| Weight(Kg) | 11(N) 13(G) |
| Exciting optical filters | Interference optical filter |
| Standard set is equipped with an interference optical filter of central wavelength at 365nm and 10nm bandwidth An optional interference optical filer of 25mm diameter of wavelength of 250-700 nm can be provided on users demand. | |
| Sensitivity | Raman peak of water in 1 cm quartz fluorescence cuvette with S/N≥150 |
| Linear measurement(r) | ≥0.995 |
| Stability | better than 1.5%/10min |
| Response time | (0.1-4)s 6 stages adjustable |
| Fluorescence display value | 0.00-600.00 |
| Data transmission | USB2.0 |
| Power | 220V±22V 50Hz±1Hz |
| Package Dimensions | 380 x440 x240 mm 0.04M3 |
| G.W. | 14Kg |
| Emission monochromator | 3．C-T diffraction grating（Em 200~900nm，bandwidth 10nm）Wavelength accuracy±1nm Wavelength repeatability ≤0.5nm |
| Wavelength accuracy | ±1nm |
| Wavelength repeatability | ≤0.5nm |
| Data transmission | USB2.0 |
