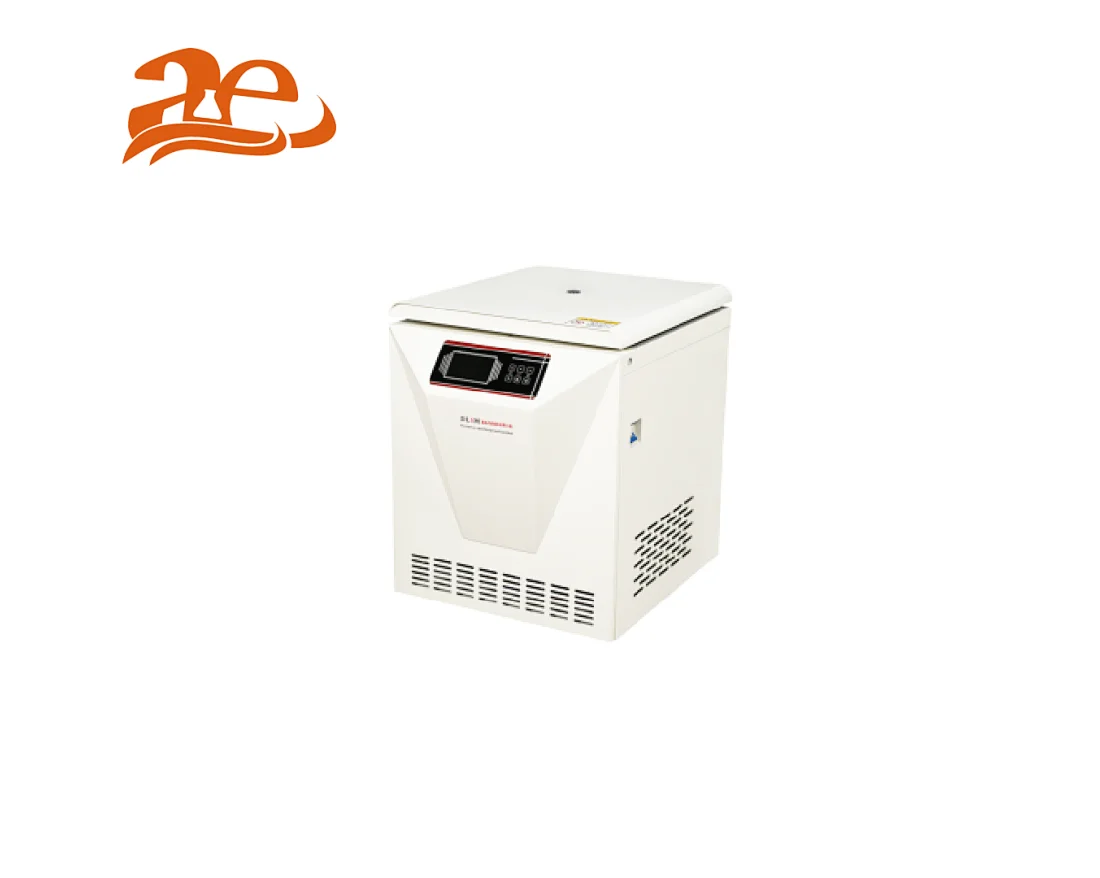

Floortype Refrigerated Centrifuge DL-5M/DL-6M
Prduct Introduction
DL-5M DL-6M is a model, which compact size with large capacity refrigerated function. Widely used in Hospital, Blood bank, Bio-Chemistry, Bio-pharmaceutical and Scientific research Company.
Features
1.Induction motor maintenance free.
1.Controlled by microprocessor.Large scree, touch panel , shows rotor code, rpm, RCF,time etc.
2.Lid open programmable, motorized,Lid dropping protection.
3.Imbalance cut off.
4.Manual emergency lid release ( very useful in unexpected power interruption)Can’t run when lid open, neither open the lid when rotor runs.
Rotors
Rotor No. | Capacity | Max Speed | Max RCF |
No.1 AR | 12×15/10ml | 6000 r/min | 5120xg |
No.2 SR | 148×7ml | 4000 r/min | 3000 xg |
No.3 SR | 4×750/500ml | 4000 r/min | 3500 xg |
No.4 SR | 6×500ml | 4000 r/min | 4390 xg |
No.5 SR | 4×100ml | 4000 r/min | 3020 xg |
32×15/10ml | |||
72×5ml | |||
48×7ml | |||
No.7 SR | 2×2×96 holes | 4000 r/min | 2300 xg |
No.9 SR | 6×250ml | 5000 r/min | 4390 xg |
No.10 SR | 8×100ml | 4000 r/min | 3360 xg |
Note:Rotors can customize made
Technical Parameters
Model | DL-6M | DL-5M |
Max Speed | 6000r/min ±20rpm | 5000r/min ±20rpm |
Max RCF | 5120×g | 4390×g |
Max Capacity | 6×500ml | |
Temperature Range | -20℃~+40℃ | |
+15℃~+25℃ | ||
Temperature Accuracy | ±1℃ | |
Timer | 0~99min | |
Noise | ≤60dB(A) | |
Motor | Converter motor | |
Power Supply | AC220V & 110V 50Hz 5A | |
Dimension | 800×600×825mm(L×W×H) | |
Weight | 150kg | |
