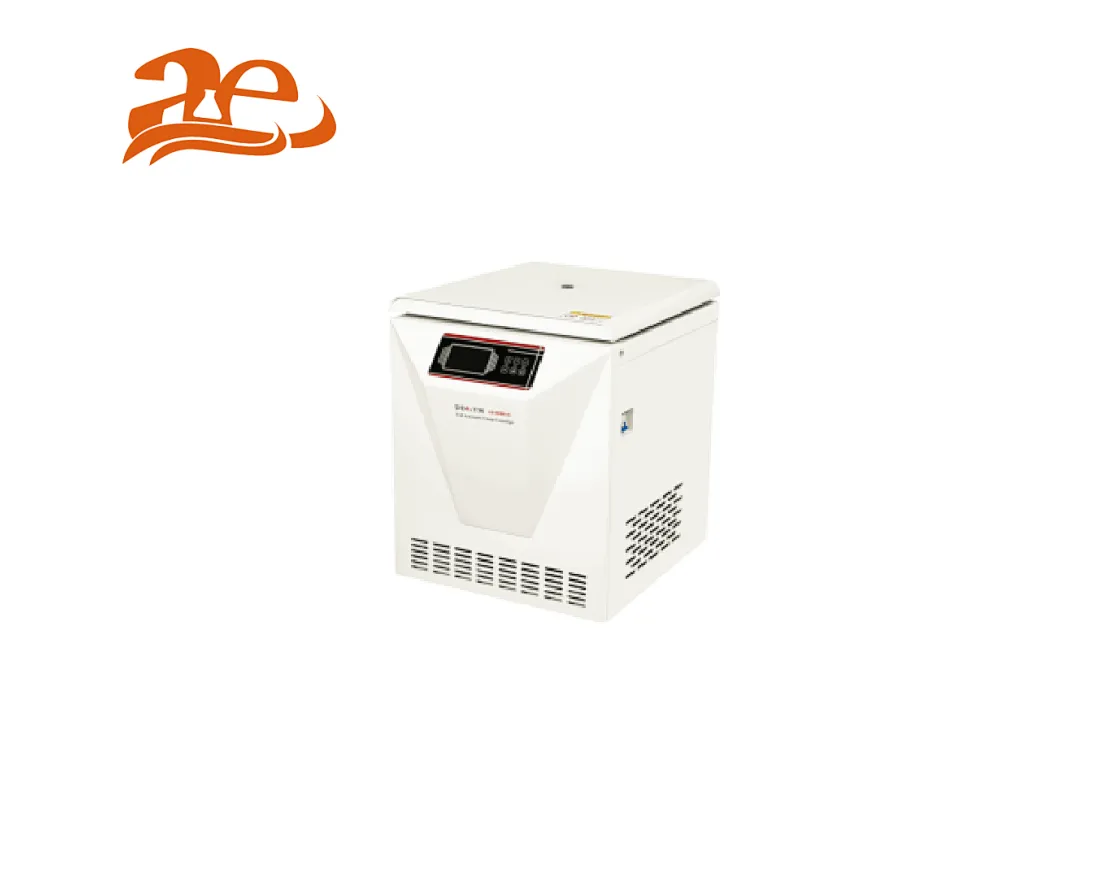

Floortype Full Automatic Uncap centrifuge DD4-TM
Our product us a special design for hospital, blood station, radio-immunoassay and nuclear medicine. It can complete al action at a time and solve the difficulty of uncap in separation of vacuum blood tube, which to be the most advanced and efficient separation machine.
Features
1.Greatly improved the work efficiency and avoided the re-mix of blood after separation.
2.Completely eradicated bacteria infection and It is suitable for every capacity of evacuated blood tube.
3.Microprocessor control and AC conversion motor, with high speed accuracy and 100% uncap rate.
4. Large LCD display, showing RPM, RCF, Speed, Running Time, Errors.
5.Adapter with double unique design to avoid caps dropping during running.
6.Patented bucket Layered design, Can use both 2ml 5ml 7ml vacuum tubes at one rotor.
Technical Parameters
Model | DD4-TM | TDL420 | DL4-TM |
Temperature Range | Room Temperature | +15℃~+25℃ | -20℃~+40℃ |
Rotor No. | Capacity | Max Speed | RCF |
NO.1 Swing Rotor | 108×2/5ml | 4000r/min | 3600×g |
NO.2 Swing Rotor | 120×2/5ml | 4000r/min | 3680×g |
NO.3 Swing Rotor | 162×2/5ml | 4000r/min | 3850×g |
Motor | Microprocessor Control, AC Frequency Motor | ||
Timer Range | 0~99min | ||
Noise | ≤65dB(A) | ||
Power Supply | AC220V & 110V 50-60Hz 5A | ||
Dimension | 800×600×820mm(L×W×H) | ||
Weight | 140KG | 170KG | 180KG |
